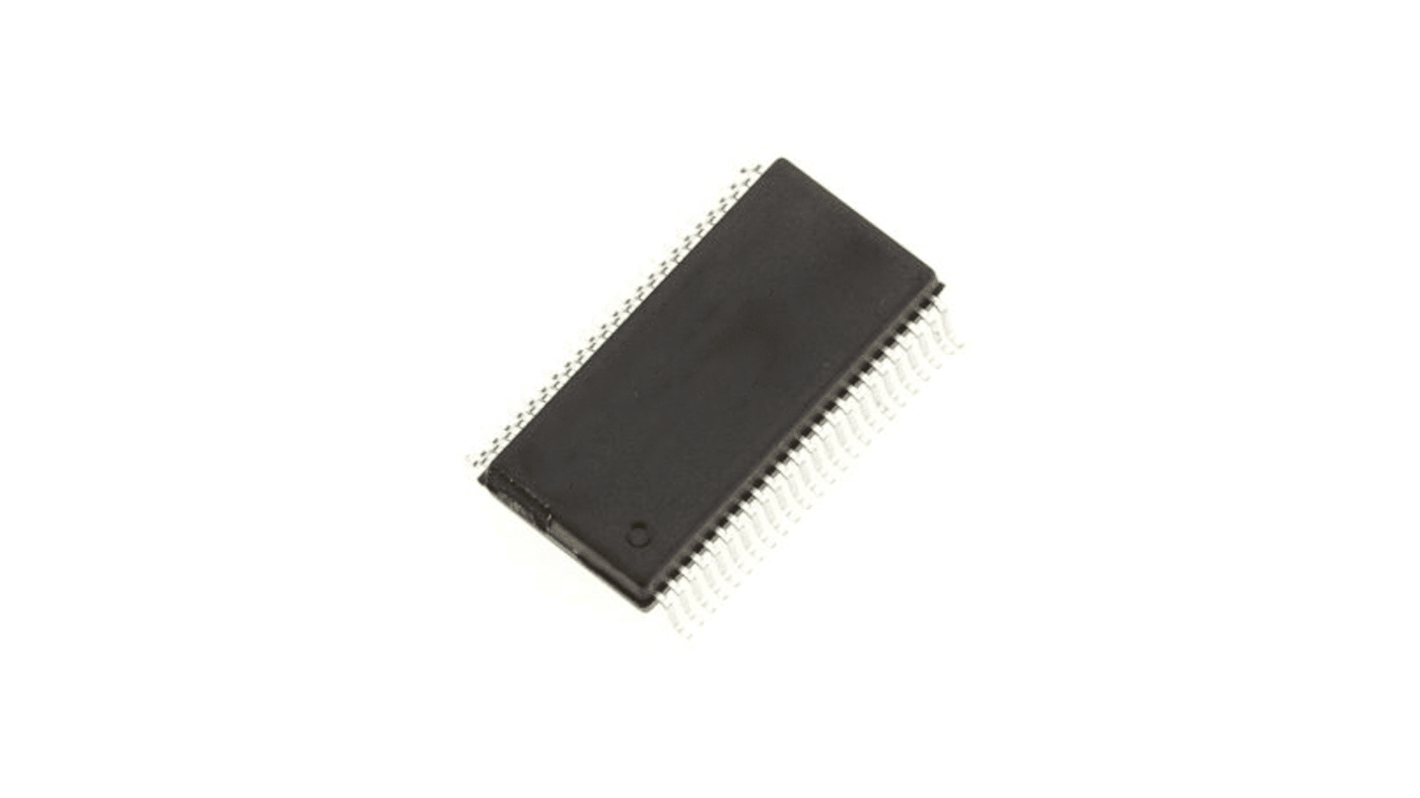

Renesas Electronics 74ALVC164245PVG, Dual Voltage Level Translator
- RS Stock No.:
- 254-4968
- Mfr. Part No.:
- 74ALVC164245PVG
- Brand:
- Renesas Electronics
Subtotal (1 tube of 30 units)*
£14.97
(exc. VAT)
£17.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 540 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 + | £0.499 | £14.97 |
*price indicative
- RS Stock No.:
- 254-4968
- Mfr. Part No.:
- 74ALVC164245PVG
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | CMOS | |
| Logic Function | Bus Transceiver | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family CMOS | ||
Logic Function Bus Transceiver | ||
Number of Elements per Chip 2 | ||
The Renesas Electronics 16-bit 3.3 V to 5 V level shifting transceiver is manufactured using advanced dual metal CMOS technology. It contains two separate supply rails
B port has VCCB, which is set at 5 V, and A port has VCCA, which is set to operate at 3.3 V. This allows for translation from a 3.3V to 5V environment and vice-versa. This device is designed for asynchronous communication between data buses. It has been designed with a ±24 mA output driver. This driver is capable of driving a moderate to heavy load while maintaining speed performance.
0.5 MICRON CMOS Technology
Typical tSK(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015, > 200V using machine model (C = 200pF, R = 0)
CMOS power levels (0.4μ W typ. static)
Rail-to-rail output swing for increased noise margin
Available in SSOP and TSSOP packages
Typical tSK(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015, > 200V using machine model (C = 200pF, R = 0)
CMOS power levels (0.4μ W typ. static)
Rail-to-rail output swing for increased noise margin
Available in SSOP and TSSOP packages
