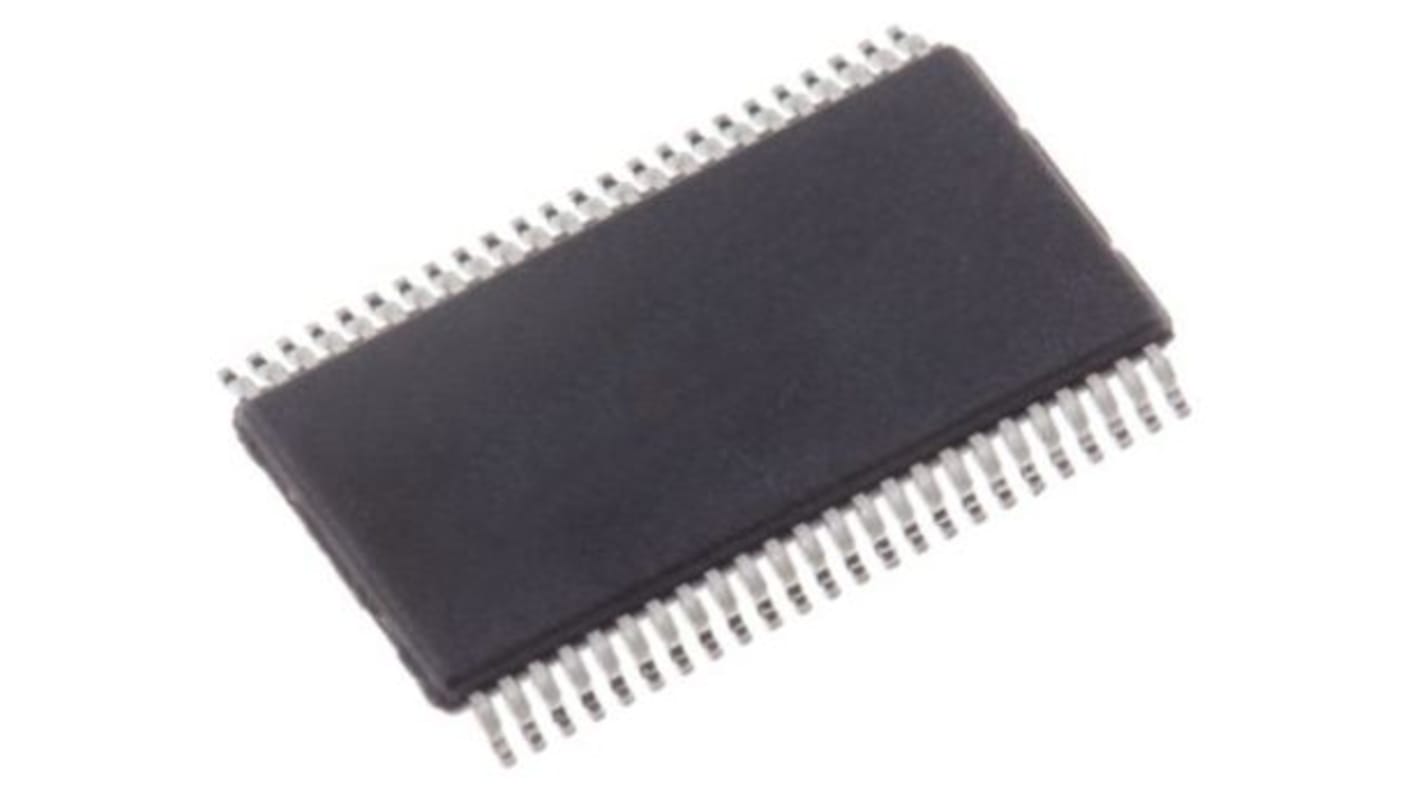

Renesas Electronics Bus Transceiver, 8-Bit 3 State, 48-Pin TSSOP
- RS Stock No.:
- 217-3712
- Mfr. Part No.:
- 74FCT164245TPAG8
- Brand:
- Renesas Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 217-3712
- Mfr. Part No.:
- 74FCT164245TPAG8
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | 74 | |
| Product Type | Bus Transceiver | |
| Logic Function | Translating Transceiver | |
| Number of Channels | 8 | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Minimum Supply Voltage | -0.5V | |
| Pin Count | 48 | |
| Maximum Supply Voltage | 7V | |
| Input Level | CMOS | |
| Minimum Operating Temperature | -40°C | |
| Output Level | 3 State | |
| Maximum Propagation Delay Time @ CL | 5ns | |
| Maximum Operating Temperature | 85°C | |
| Series | 74FCT | |
| Standards/Approvals | No | |
| Length | 12.5mm | |
| Height | 1mm | |
| Width | 6.1 mm | |
| Automotive Standard | No | |
| Output Type | 3 State | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family 74 | ||
Product Type Bus Transceiver | ||
Logic Function Translating Transceiver | ||
Number of Channels 8 | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Minimum Supply Voltage -0.5V | ||
Pin Count 48 | ||
Maximum Supply Voltage 7V | ||
Input Level CMOS | ||
Minimum Operating Temperature -40°C | ||
Output Level 3 State | ||
Maximum Propagation Delay Time @ CL 5ns | ||
Maximum Operating Temperature 85°C | ||
Series 74FCT | ||
Standards/Approvals No | ||
Length 12.5mm | ||
Height 1mm | ||
Width 6.1 mm | ||
Automotive Standard No | ||
Output Type 3 State | ||
The Renesas Electronics 74FCT164245T series 16-bit high-speed, low-power 3.3V-to-5V translator is designed to interface between a 3.3V bus and a 5V bus in a mixed 3.3V/ 5V supply environment. It has 48 lead count and has TSSOP package type.
Bidirectional interface between 3.3V and 5V buses
Control inputs can be driven from either 3.3V or 5V circuits
High drive outputs (-32mA IOH, 64mA IOL) on 5V port
Power off disable on both ports permits "live insertion"
