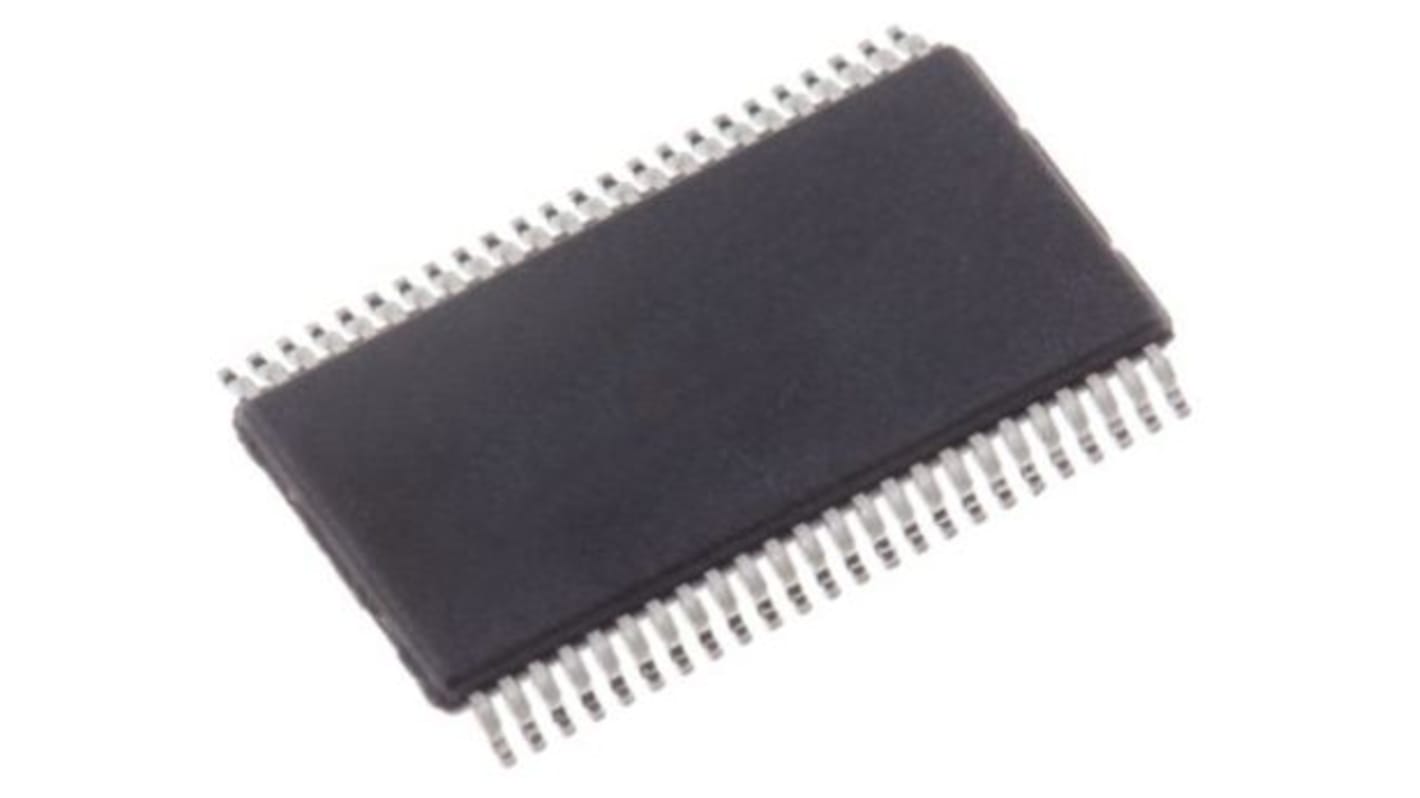

Renesas Electronics 74FCT162245ATPAG, 36 Bus Transceiver, 16-Bit Non-Inverting 3-State, 48-Pin TSSOP

View all Bus Transceivers

Subtotal (1 pack of 10 units)*

£3.60

(exc. VAT)

£4.30

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 40 unit(s), ready to ship
Units
Per unit
Per Pack*
10 +£0.36£3.60

*price indicative

Packaging Options:
RS Stock No.:
217-7901
Mfr. Part No.:
74FCT162245ATPAG
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

74FCT

Logic Function

Bus Transceiver

Number of Elements per Chip

36

Number of Channels per Chip

16

Polarity

Non-Inverting

Package Type

TSSOP

Pin Count

48

Output Level

3-State

The Renesas Electronics 74FCT162245T 16-bit high-speed, low-power transceiver is ideal for synchronous communication between two buses and can operate as either two independent 8-bit transceivers or one 16-bit transceiver. The 74FCT162245T offers low ground bounce, minimal undershoot, and controlled output fall times–reducing the need for external series terminating resistors. It is a plug-in replacement for the 74FCT16245T for on-board interface applications. The 74FCT162245T operates at -40C to +85C. (For Mil version, see 54FCT162245T)

A and C speeds
High-speed, low-power CMOS
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage ? 1 uA (max.)
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
Balanced Output Drivers: ±24mA
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25C
