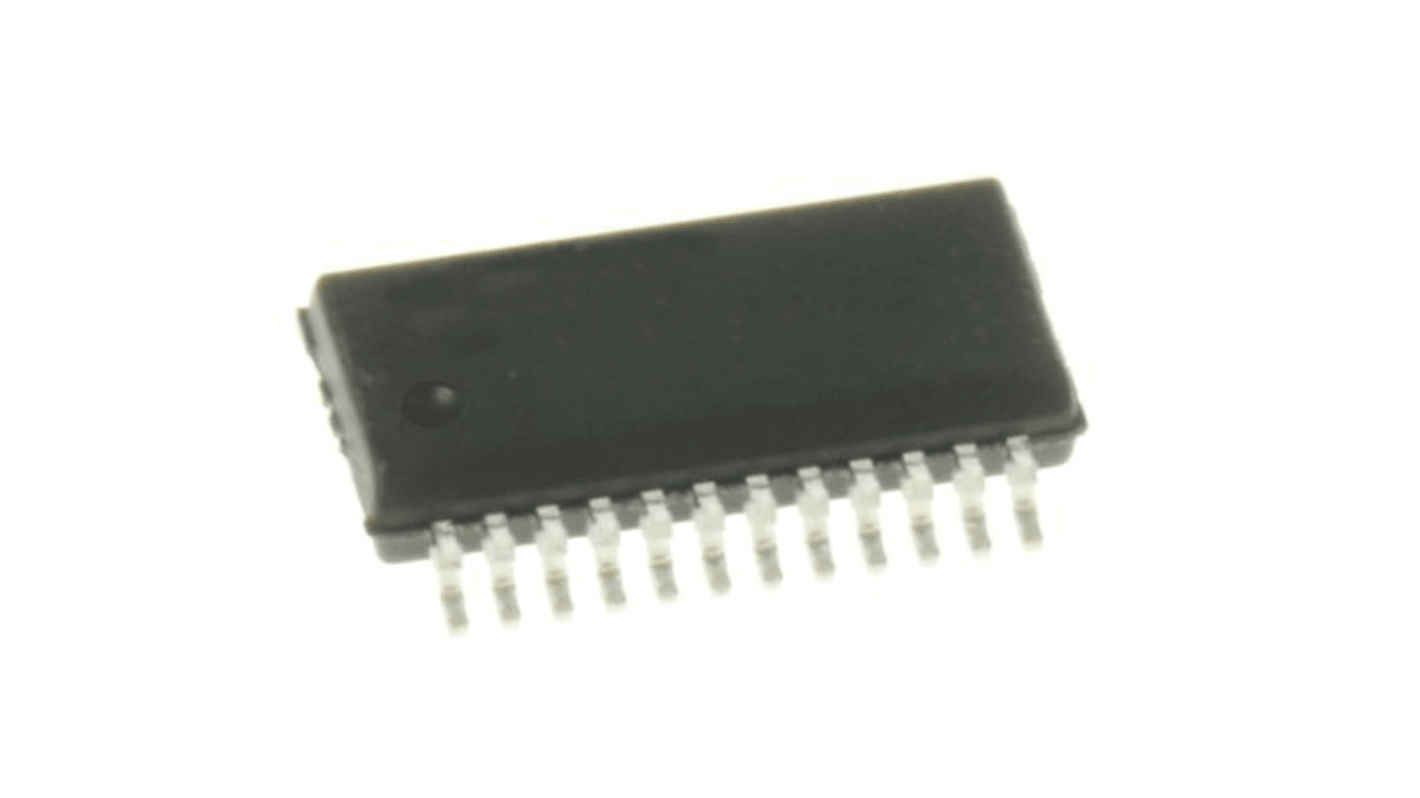

Renesas Electronics QS3384QG, Bus Switch, 5 x 1:1, 24-Pin
- RS Stock No.:
- 254-5006
- Mfr. Part No.:
- QS3384QG
- Brand:
- Renesas Electronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£7.59
(exc. VAT)
£9.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 140 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | £0.759 | £7.59 |
| 20 - 20 | £0.745 | £7.45 |
| 30 - 100 | £0.72 | £7.20 |
| 110 - 270 | £0.59 | £5.90 |
| 280 + | £0.529 | £5.29 |
*price indicative
- RS Stock No.:
- 254-5006
- Mfr. Part No.:
- QS3384QG
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Bus Switch | |
| Logic Family | CMOS | |
| Configuration | 5 x 1:1 | |
| Number of Elements per Chip | 4 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 3.3V | |
| Pin Count | 24 | |
| Maximum Supply Voltage | 5V | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Series | QS3384 | |
| Automotive Standard | No | |
| Bus Width | 8bit | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Bus Switch | ||
Logic Family CMOS | ||
Configuration 5 x 1:1 | ||
Number of Elements per Chip 4 | ||
Mount Type Surface | ||
Minimum Supply Voltage 3.3V | ||
Pin Count 24 | ||
Maximum Supply Voltage 5V | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Series QS3384 | ||
Automotive Standard No | ||
Bus Width 8bit | ||
The Renesas Electronics 10-bit bus switch provides a set of high-speed CMOS, TTL-compatible switches. The low ON resistance of it allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce. Two banks of 5 switches are controlled by independent Bus Enable (BE) signals. It is characterized for operation at -40°C to +85°C.
Enhanced N channel FET with no inherent diode to Vcc
5 Ω bidirectional switches connect inputs to outputs
Zero propagation delay, zero added ground bounce
Undershoot clamp diodes on all switch and control inputs
Two enables control five bits each
Available in QSOP and TSSOP packages
