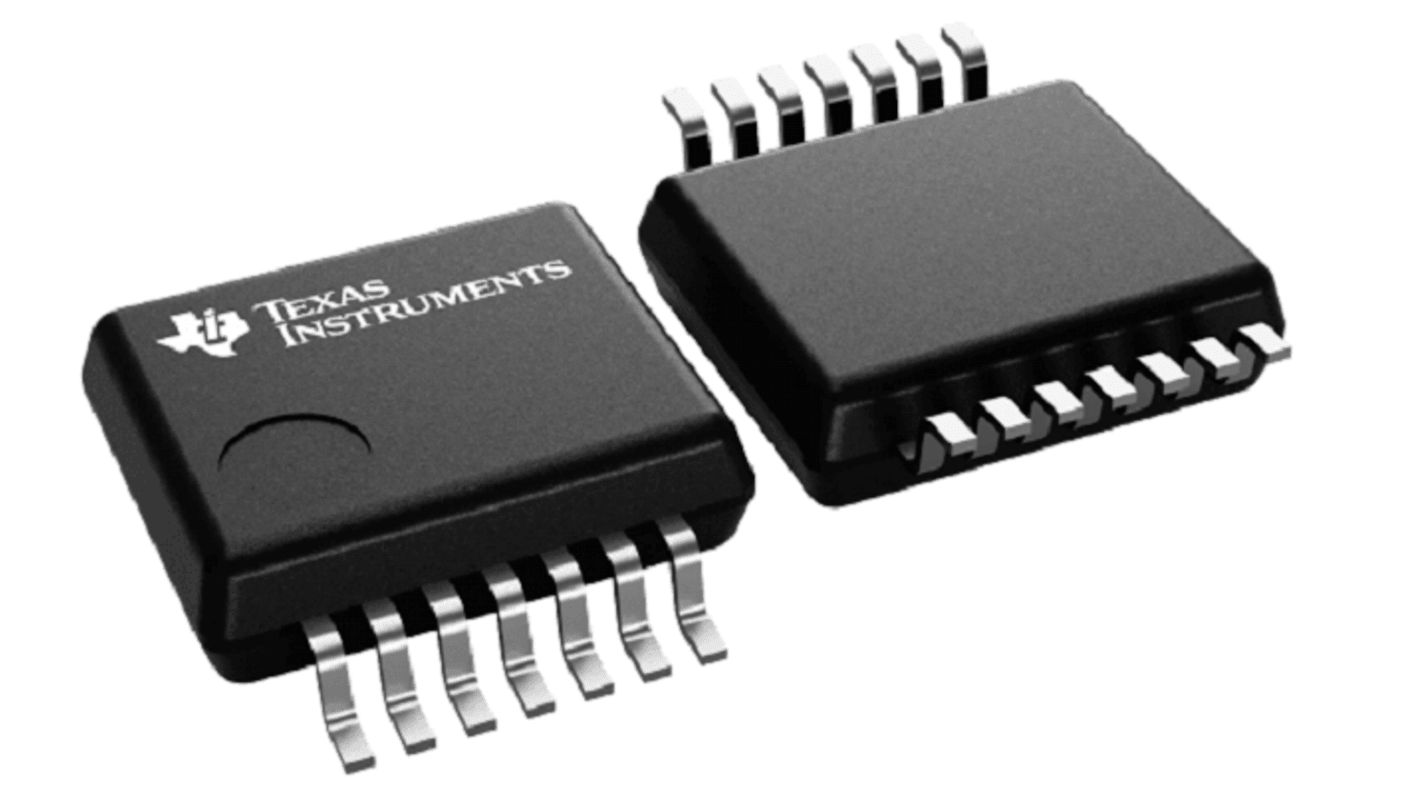

Texas Instruments SN74LS07DBR, 5-Channel Positive Open Collector Hex Buffer & Line Driver, 14-Pin SSOP
- RS Stock No.:
- 268-3206
- Mfr. Part No.:
- SN74LS07DBR
- Brand:
- Texas Instruments
Subtotal (1 reel of 2000 units)*
£868.00
(exc. VAT)
£1,042.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.434 | £868.00 |
*price indicative
- RS Stock No.:
- 268-3206
- Mfr. Part No.:
- SN74LS07DBR
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | 74LS | |
| Product Type | Hex Buffer & Line Driver | |
| Logic Function | Driver, Buffer | |
| Number of Channels | 5 | |
| Schmitt Trigger Input | No | |
| Input Type | TTL | |
| Mount Type | Surface | |
| Output Type | Open Collector | |
| Polarity | Positive | |
| Package Type | SSOP | |
| Pin Count | 14 | |
| Minimum Operating Temperature | 0°C | |
| Maximum High Level Output Current | 0.25mA | |
| Maximum Propagation Delay Time @ CL | 30ns | |
| Maximum Low Level Output Current | 40mA | |
| Maximum Operating Temperature | 70°C | |
| Length | 5.3mm | |
| Width | 1.95 mm | |
| Height | 6.2mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family 74LS | ||
Product Type Hex Buffer & Line Driver | ||
Logic Function Driver, Buffer | ||
Number of Channels 5 | ||
Schmitt Trigger Input No | ||
Input Type TTL | ||
Mount Type Surface | ||
Output Type Open Collector | ||
Polarity Positive | ||
Package Type SSOP | ||
Pin Count 14 | ||
Minimum Operating Temperature 0°C | ||
Maximum High Level Output Current 0.25mA | ||
Maximum Propagation Delay Time @ CL 30ns | ||
Maximum Low Level Output Current 40mA | ||
Maximum Operating Temperature 70°C | ||
Length 5.3mm | ||
Width 1.95 mm | ||
Height 6.2mm | ||
Standards/Approvals No | ||
