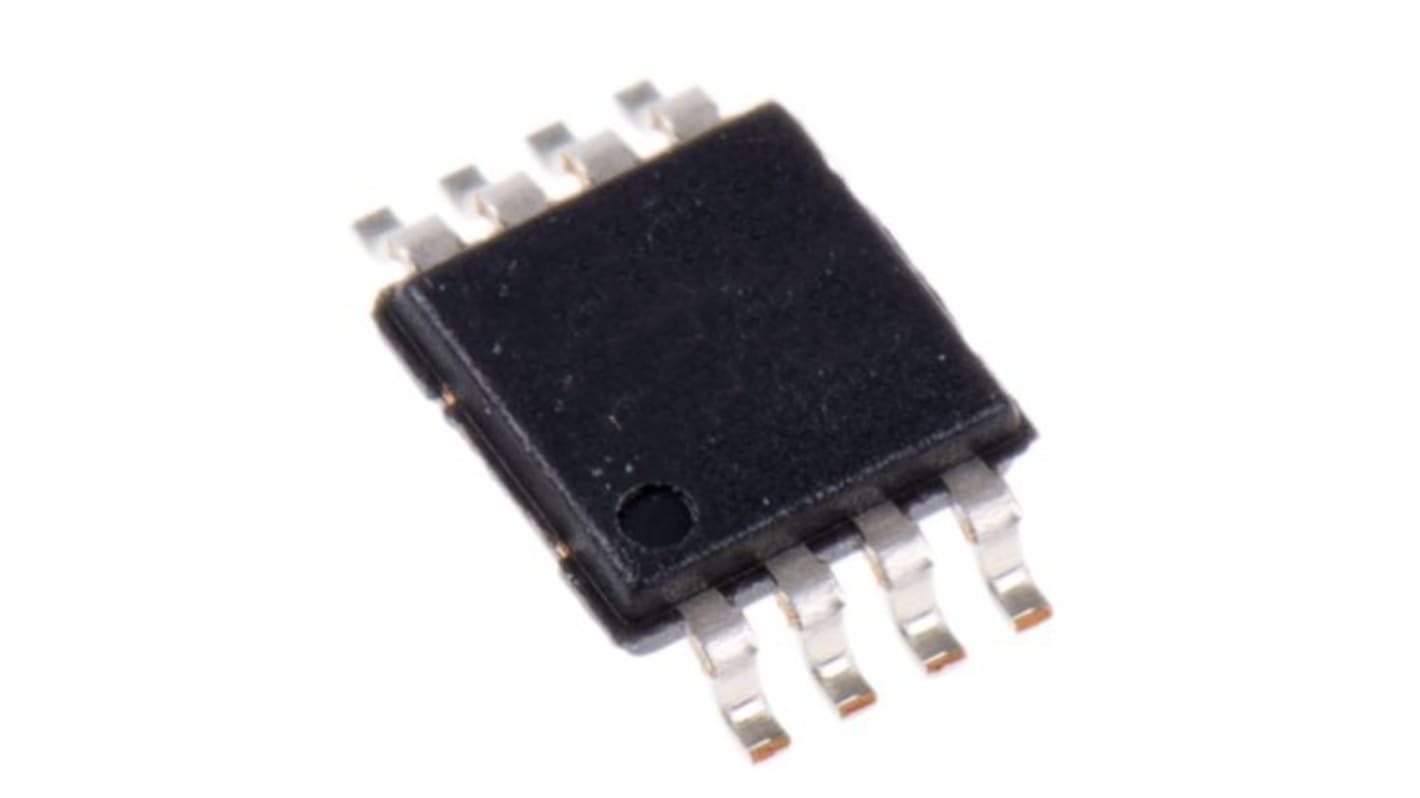

Renesas Electronics ISL33001IUZ, 2-Channel Buffer, 8-Pin MSOP
- RS Stock No.:
- 264-0626
- Mfr. Part No.:
- ISL33001IUZ
- Brand:
- Renesas Electronics
Subtotal (1 tube of 50 units)*
£66.80
(exc. VAT)
£80.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,850 unit(s) shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 + | £1.336 | £66.80 |
*price indicative
- RS Stock No.:
- 264-0626
- Mfr. Part No.:
- ISL33001IUZ
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | CMOS | |
| Product Type | Buffer | |
| Logic Function | Driver, Buffer | |
| Number of Channels | 2 | |
| Schmitt Trigger Input | No | |
| Input Type | Buffered | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | ISL33001 | |
| Width | 4.4 mm | |
| Standards/Approvals | RoHS | |
| Length | 7.8mm | |
| Height | 1.2mm | |
| Supply Current | 4mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family CMOS | ||
Product Type Buffer | ||
Logic Function Driver, Buffer | ||
Number of Channels 2 | ||
Schmitt Trigger Input No | ||
Input Type Buffered | ||
Mount Type Surface | ||
Package Type MSOP | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series ISL33001 | ||
Width 4.4 mm | ||
Standards/Approvals RoHS | ||
Length 7.8mm | ||
Height 1.2mm | ||
Supply Current 4mA | ||
Automotive Standard No | ||
The Renesas Electronics buffers are 2 channel bus buffers that provide the buffering necessary to extend the bus capacitance beyond the 400pF maximum specified by the I2C specification. It consist of rise time accelerator circuitry to reduce power consumption from passive bus pull-up resistors and improve data-rate performance.
Bus capacitance buffering
Rise time accelerators
Hot swapping capability
