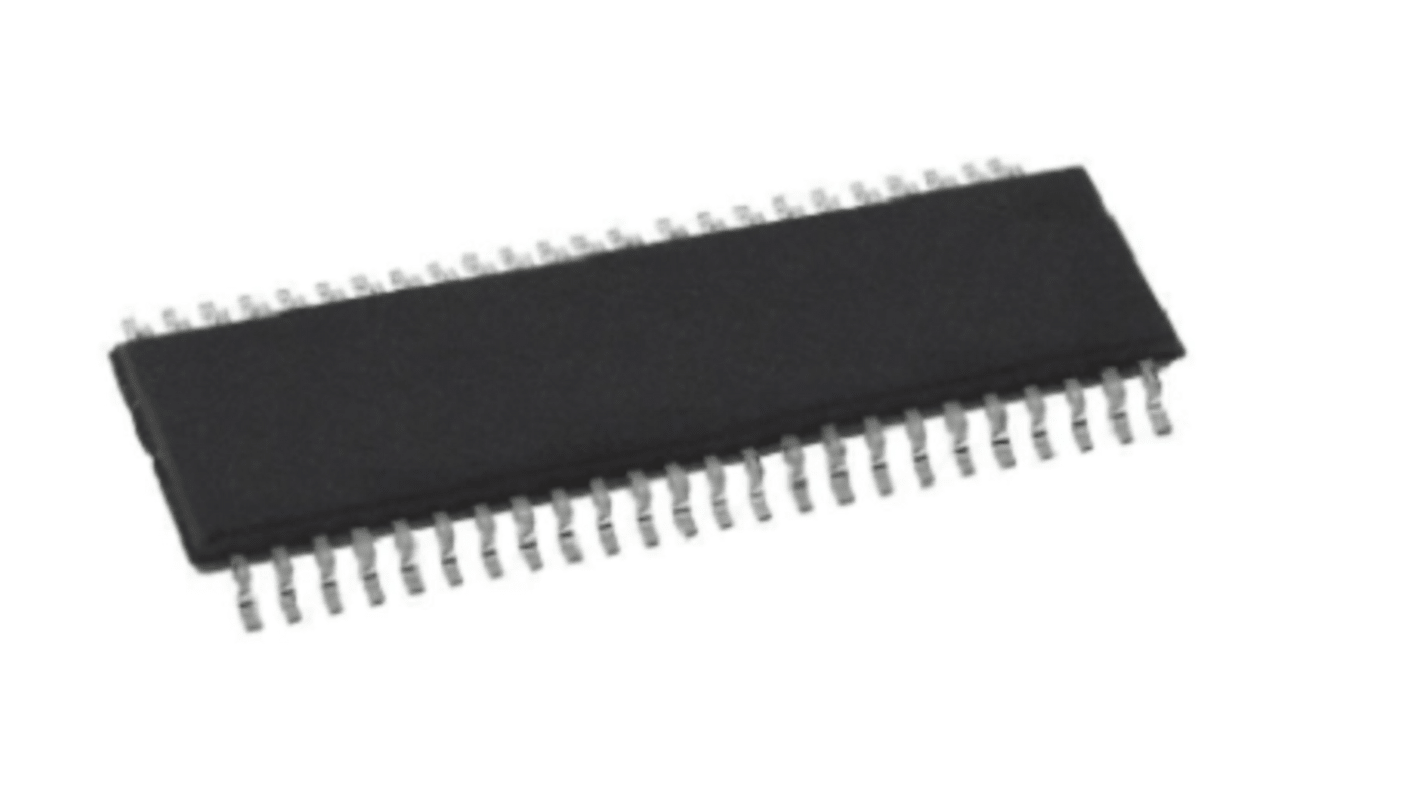

Renesas Electronics 74LVC16244APAG8 3 State Buffer, 48-Pin

View all Buffers
Bulk discount available

Subtotal (1 pack of 5 units)*

£6.36

(exc. VAT)

£7.63

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£1.272£6.36
50 - 95£1.088£5.44
100 - 245£0.896£4.48
250 - 995£0.836£4.18
1000 +£0.584£2.92

*price indicative

Packaging Options:
RS Stock No.:
249-2448
Mfr. Part No.:
74LVC16244APAG8
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Buffer

Logic Family

CMOS

Logic Function

Driver, Buffer

Schmitt Trigger Input

No

Input Type

Voltage

Output Type

3 State

Minimum Supply Voltage

2.7V

Pin Count

48

Maximum Supply Voltage

3.6V

Maximum Propagation Delay Time @ CL

4.7ns

Minimum Operating Temperature

-40°C

Maximum High Level Output Current

24mA

Maximum Operating Temperature

85°C

Series

IDT74LVC16244A

Standards/Approvals

MIL-STD-883, Method 3015

Automotive Standard

No

Supply Current

500μA

The Renesas Electronics LVC16244A 16-bit buffer/driver is built using Advanced dual metal CMOS technology. The LVC16244A is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. This device provides true outputs and symmetrical active-low output-enable (OE) inputs.

VCC is 3.3V ± 0.3V (normal range) and it is 2.7V to 3.6V for extended range

CMOS power levels (0.4μ W typ. static)
