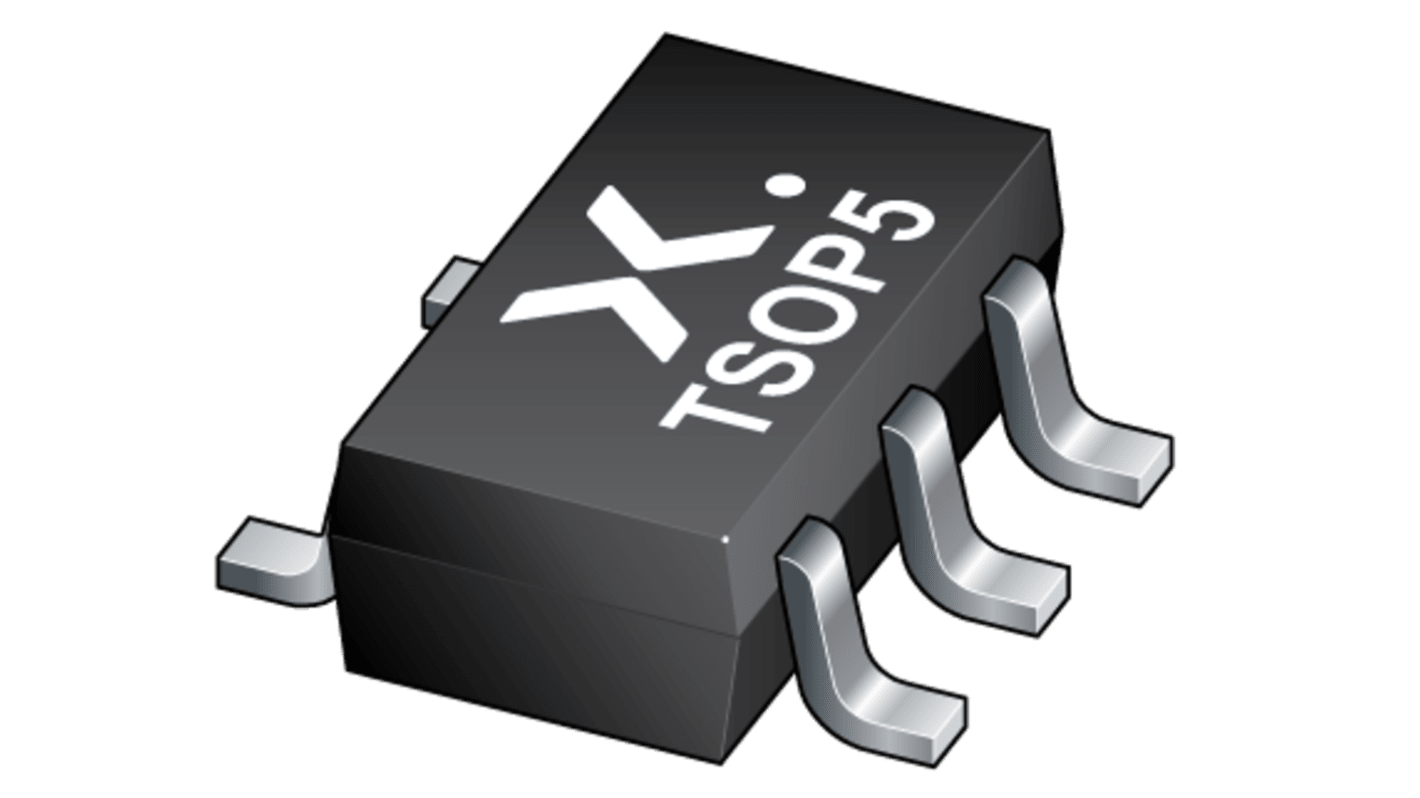

Nexperia 74LVC1G126GV,125, 1-Channel Non-Inverting Schmitt Trigger Input 3 State Buffer, 5-Pin SC-74A
- RS Stock No.:
- 625-416
- Mfr. Part No.:
- 74LVC1G126GV,125
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 10 units)*
£0.88
(exc. VAT)
£1.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,970 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | £0.088 | £0.88 |
| 250 - 990 | £0.085 | £0.85 |
| 1000 + | £0.084 | £0.84 |
*price indicative
- RS Stock No.:
- 625-416
- Mfr. Part No.:
- 74LVC1G126GV,125
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Family | LVC | |
| Product Type | Buffer | |
| Logic Function | Buffer & Line Driver | |
| Number of Channels | 1 | |
| Schmitt Trigger Input | Yes | |
| Input Type | Single Ended | |
| Mount Type | Surface | |
| Output Type | 3 State | |
| Polarity | Non-Inverting | |
| Package Type | SC-74A | |
| Minimum Supply Voltage | 1.65V | |
| Pin Count | 5 | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Propagation Delay Time @ CL | 10.5ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -32mA | |
| Maximum Low Level Output Current | 32mA | |
| Maximum Operating Temperature | 125°C | |
| Series | 74LVC1G126 | |
| Standards/Approvals | JESD8-5, JEDEC:JESD8-7, JESD36, JESD8C | |
| Supply Current | 4μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Logic Family LVC | ||
Product Type Buffer | ||
Logic Function Buffer & Line Driver | ||
Number of Channels 1 | ||
Schmitt Trigger Input Yes | ||
Input Type Single Ended | ||
Mount Type Surface | ||
Output Type 3 State | ||
Polarity Non-Inverting | ||
Package Type SC-74A | ||
Minimum Supply Voltage 1.65V | ||
Pin Count 5 | ||
Maximum Supply Voltage 5.5V | ||
Maximum Propagation Delay Time @ CL 10.5ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -32mA | ||
Maximum Low Level Output Current 32mA | ||
Maximum Operating Temperature 125°C | ||
Series 74LVC1G126 | ||
Standards/Approvals JESD8-5, JEDEC:JESD8-7, JESD36, JESD8C | ||
Supply Current 4μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Nexperia Single buffer/line driver with 3-state output can be driven by either 3.3 V or 5 V devices, making it ideal for mixed-voltage environments. Its inputs feature Schmitt-trigger action, providing tolerance to slower input rise and fall times and enhancing noise immunity.
Overvoltage tolerant inputs to 5.5 V
High noise immunity
CMOS low power dissipation
