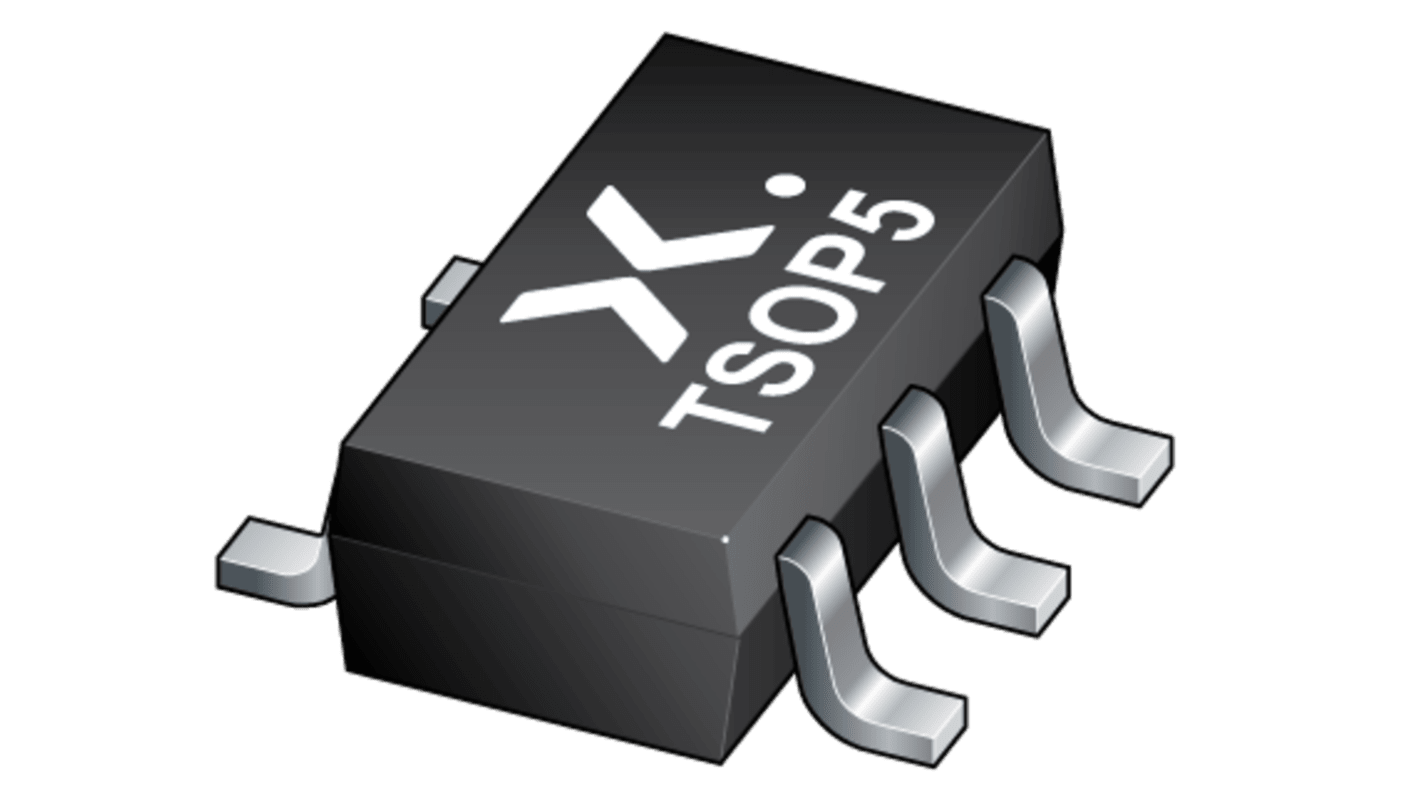

Nexperia 74AHCT1G125GV,125, 1-Channel Non-Inverting 3 State Buffer, 5-Pin SC-74A

View all Buffers
Bulk discount available

Subtotal (1 pack of 10 units)*

£0.80

(exc. VAT)

£1.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 240£0.08£0.80
250 - 990£0.078£0.78
1000 +£0.076£0.76

*price indicative

RS Stock No.:
625-404
Mfr. Part No.:
74AHCT1G125GV,125
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Logic Family

AHC

Product Type

Buffer

Logic Function

Buffer

Number of Channels

1

Schmitt Trigger Input

No

Input Type

CMOS

Output Type

3 State

Mount Type

Surface

Polarity

Non-Inverting

Minimum Supply Voltage

2V

Package Type

SC-74A

Pin Count

5

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

-8.0mA

Minimum Operating Temperature

-40°C

Maximum Propagation Delay Time @ CL

11.5ns

Maximum Low Level Output Current

8.0mA

Maximum Operating Temperature

125°C

Standards/Approvals

IEC 60134, ANSI/ESDA/JEDEC JS-002, JESD 78 Class II, ANSI/ESDA/JEDEC JS-001

Automotive Standard

No

Supply Current

40μA

COO (Country of Origin):
MY
The Nexperia Single buffer/line driver with 3-state output is designed with overvoltage-tolerant inputs, allowing it to function as a voltage translator in mixed voltage environments. It offers reliable signal buffering with flexible voltage compatibility.

High noise immunity

Symmetrical output impedance

CMOS low power dissipation

Latch up performance exceeds 100 mA per JESD 78 Class II Level A

Balanced propagation delays
