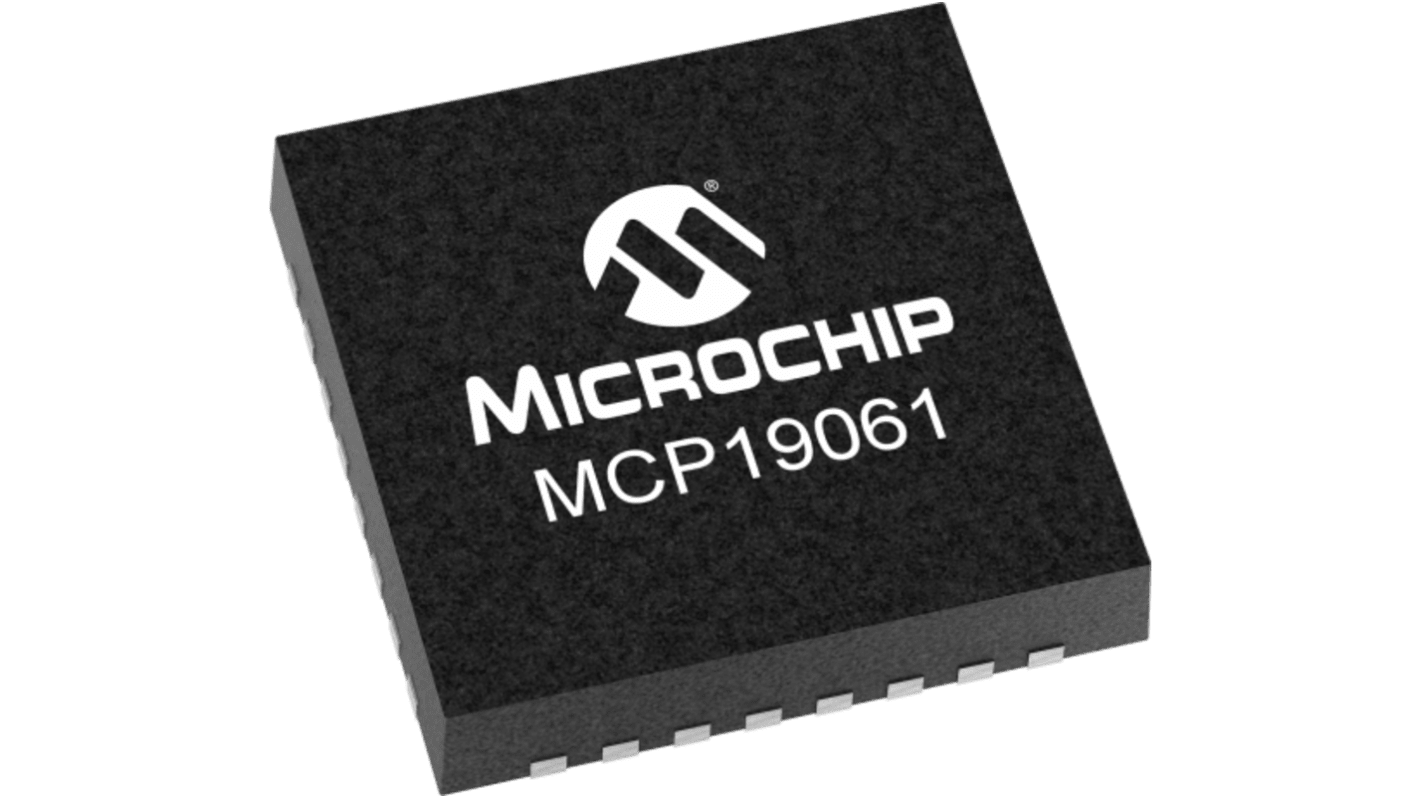

Microchip, MCP19061-E/RTB Buck Controller, 1-Channel Adjustable 32-Pin, VQFN
- RS Stock No.:
- 352-292
- Mfr. Part No.:
- MCP19061-E/RTB
- Brand:
- Microchip
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 352-292
- Mfr. Part No.:
- MCP19061-E/RTB
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Maximum Output Voltage | 36 V | |
Regulator Function | Boost | |
Minimum Output Voltage | 3 V | |
Minimum Input Voltage | 4.5 V | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Pin Count | 32 | |
Package Type | VQFN | |
Select all | ||
---|---|---|
Brand Microchip | ||
Maximum Output Voltage 36 V | ||
Regulator Function Boost | ||
Minimum Output Voltage 3 V | ||
Minimum Input Voltage 4.5 V | ||
Output Type Adjustable | ||
Number of Outputs 1 | ||
Pin Count 32 | ||
Package Type VQFN | ||
The Microchip sophisticated mixed-signal controller with a four-switch buck-boost configuration, designed to function within a supply range of +4.5V to +36V, and it is capable of enduring up to +42V when not in operation. This device is enhanced with a digital PWM controller that includes a serial communication interface, enabling programmability and monitoring from external systems.
Input Voltage +4.5V to +42V
Adjustable Output Range 3V to 36V
Internal LDOs and MOSFET Drivers
Low Quiescent Current in Shutdown Mode
Switching Frequency Range of 300 kHz to 500 kHz
Tolerant in Nonoperating 42V Automotive Load Dump Condition
Adjustable Output Range 3V to 36V
Internal LDOs and MOSFET Drivers
Low Quiescent Current in Shutdown Mode
Switching Frequency Range of 300 kHz to 500 kHz
Tolerant in Nonoperating 42V Automotive Load Dump Condition
