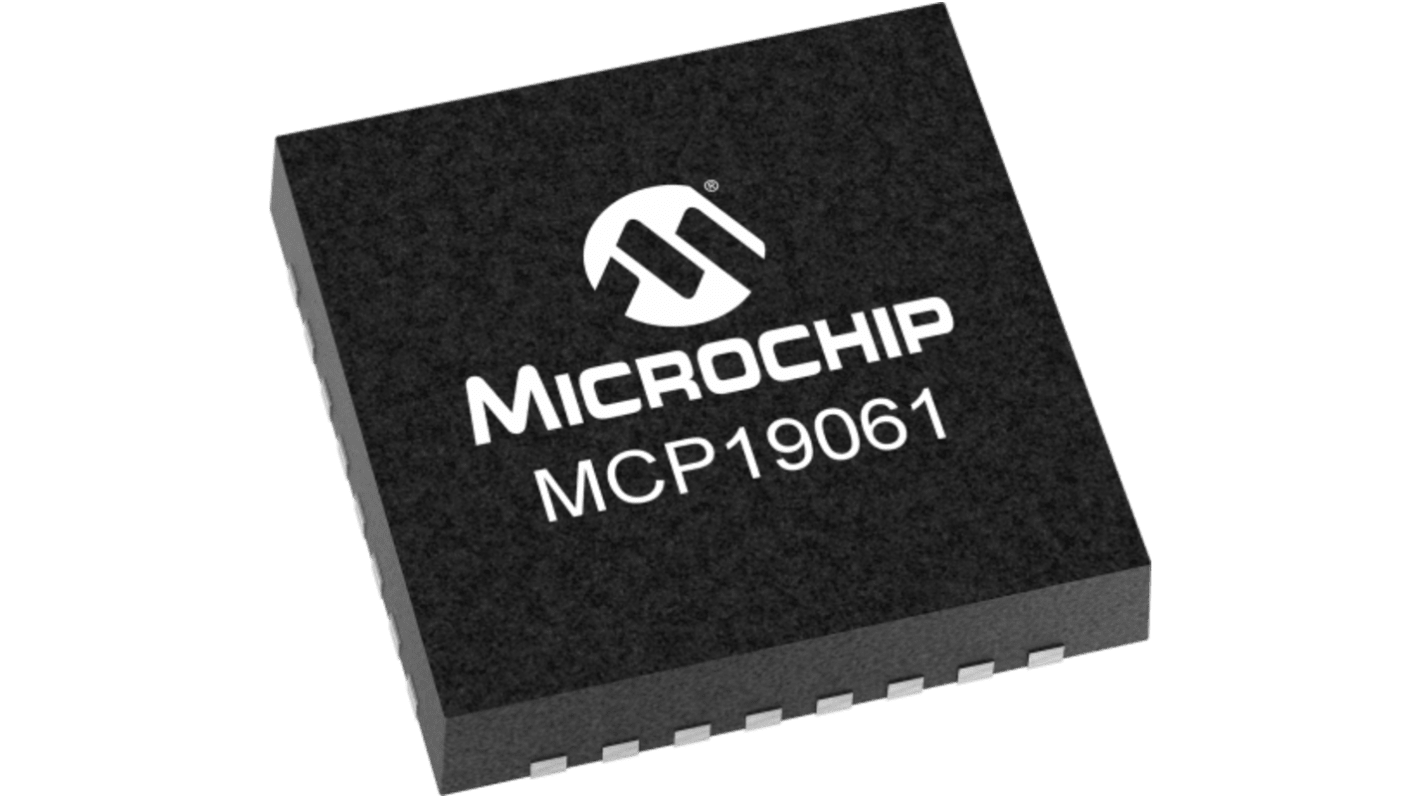

Microchip, MCP19061T-E/RTB Buck Controller, 1-Channel Adjustable 32-Pin, VQFN
- RS Stock No.:
- 352-090
- Mfr. Part No.:
- MCP19061T-E/RTB
- Brand:
- Microchip
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 352-090
- Mfr. Part No.:
- MCP19061T-E/RTB
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Maximum Output Voltage | 36 V | |
Regulator Function | Boost | |
Minimum Output Voltage | 3 V | |
Minimum Input Voltage | 4.5 V | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Pin Count | 32 | |
Package Type | VQFN | |
Select all | ||
---|---|---|
Brand Microchip | ||
Maximum Output Voltage 36 V | ||
Regulator Function Boost | ||
Minimum Output Voltage 3 V | ||
Minimum Input Voltage 4.5 V | ||
Output Type Adjustable | ||
Number of Outputs 1 | ||
Pin Count 32 | ||
Package Type VQFN | ||
- COO (Country of Origin):
- TH
The Microchip 4 switch buck-boost controller features a digital PWM controller with a serial communication bus for external programmability and reporting. Various enhancements were added to the MCP19061 to provide USB-PD compatibility with minimum external components along with improving calibration, increasing accuracy and providing greater flexibility. Complete customization of device operating parameters, start-up or shutdown profiles, protection levels and fault handling procedures are accomplished by internal digital registers.
Adjustable output range 3V to 36V
Internal LDOs and MOSFET drivers
High accuracy internal divider to set full range output voltage without external resistors
Accuracy of input and output voltage measurement 2% from device to device over output voltage range and temperature
Accuracy of output current measurement 3% from device to device over output voltage range and temperature
Internal LDOs and MOSFET drivers
High accuracy internal divider to set full range output voltage without external resistors
Accuracy of input and output voltage measurement 2% from device to device over output voltage range and temperature
Accuracy of output current measurement 3% from device to device over output voltage range and temperature
