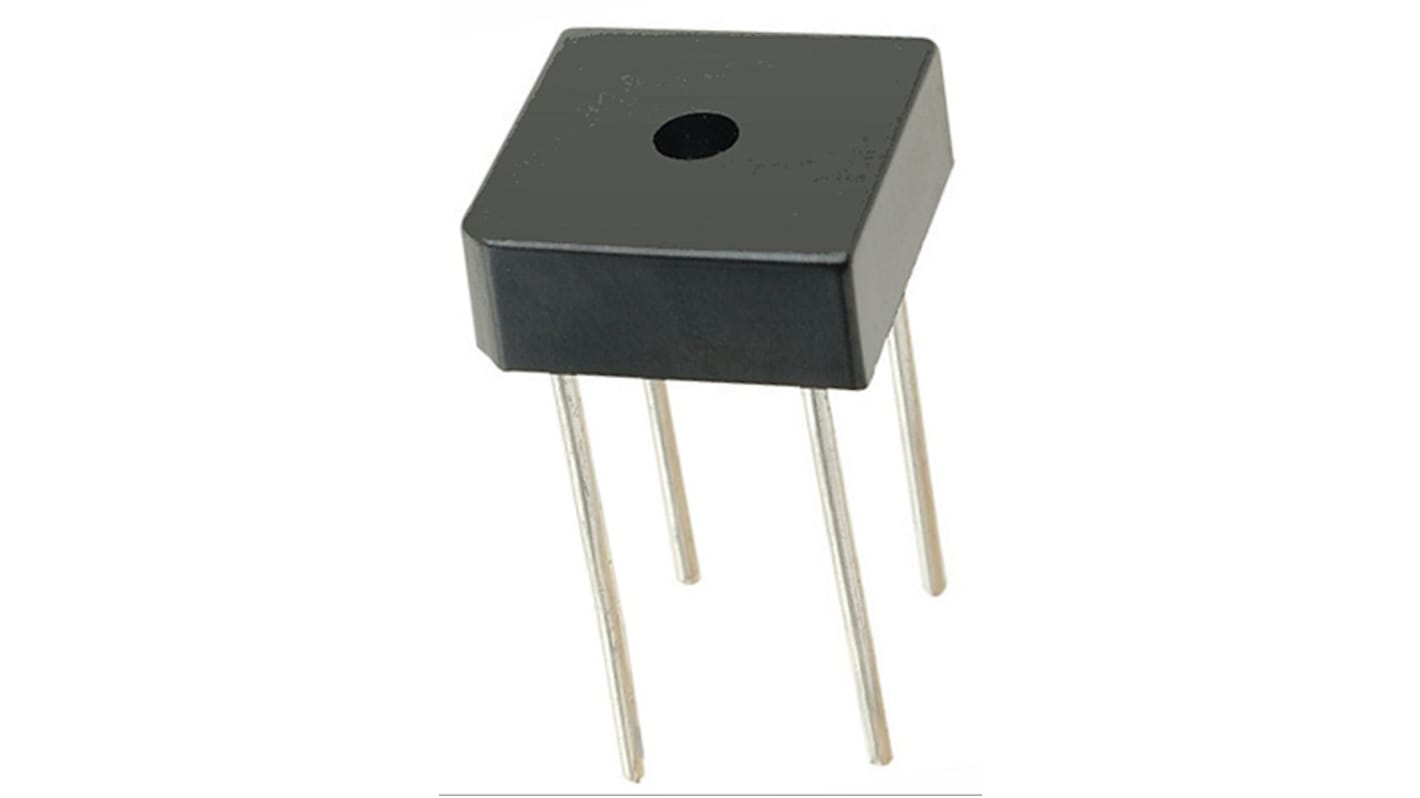

HY Electronic Corp Bridge Rectifier, 6A, 1000V, 4-Pin
- RS Stock No.:
- 917-8799P
- Mfr. Part No.:
- BR610G
- Brand:
- HY Electronic Corp
Bulk discount available
Subtotal 75 units (supplied in a box)*
£51.975
(exc. VAT)
£62.40
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 75 - 125 | £0.693 |
| 150 - 275 | £0.637 |
| 300 - 575 | £0.594 |
| 600 + | £0.551 |
*price indicative
- RS Stock No.:
- 917-8799P
- Mfr. Part No.:
- BR610G
- Brand:
- HY Electronic Corp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HY Electronic Corp | |
| Peak Average Forward Current | 6A | |
| Bridge Type | Single Phase | |
| Peak Reverse Repetitive Voltage | 1000V | |
| Mounting Type | Through Hole | |
| Package Type | BR-6 | |
| Pin Count | 4 | |
| Diode Technology | Silicon Junction | |
| Diode Type | Silicon Junction | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 150A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 1.1V | |
| Peak Reverse Current | 1mA | |
| Length | 15.7mm | |
| Dimensions | 15.7 x 15.7 x 7mm | |
| Width | 15.7mm | |
| Height | 7mm | |
Select all | ||
|---|---|---|
Brand HY Electronic Corp | ||
Peak Average Forward Current 6A | ||
Bridge Type Single Phase | ||
Peak Reverse Repetitive Voltage 1000V | ||
Mounting Type Through Hole | ||
Package Type BR-6 | ||
Pin Count 4 | ||
Diode Technology Silicon Junction | ||
Diode Type Silicon Junction | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 150A | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -55 °C | ||
Peak Forward Voltage 1.1V | ||
Peak Reverse Current 1mA | ||
Length 15.7mm | ||
Dimensions 15.7 x 15.7 x 7mm | ||
Width 15.7mm | ||
Height 7mm | ||
- COO (Country of Origin):
- CN
Bridge Rectifier - BR Series
The glass passivated BR series bridge rectifier from HY Electronic (Cayman) Limited is available in 600 V or 1000 V VRRM. The rectifier let you transform AC to DC in circuits and provides a direct current to your device. The bridge rectifier comes in 6A or 10 A forward current and has a low forward voltage drop.
Surge overload: -150 A peak (BRxxxxG) or -175 A (BRxxxxSG)
Silver plated copper leads
Silver plated copper leads
Bridge Rectifiers - HY Electronic (Cayman) Limited
