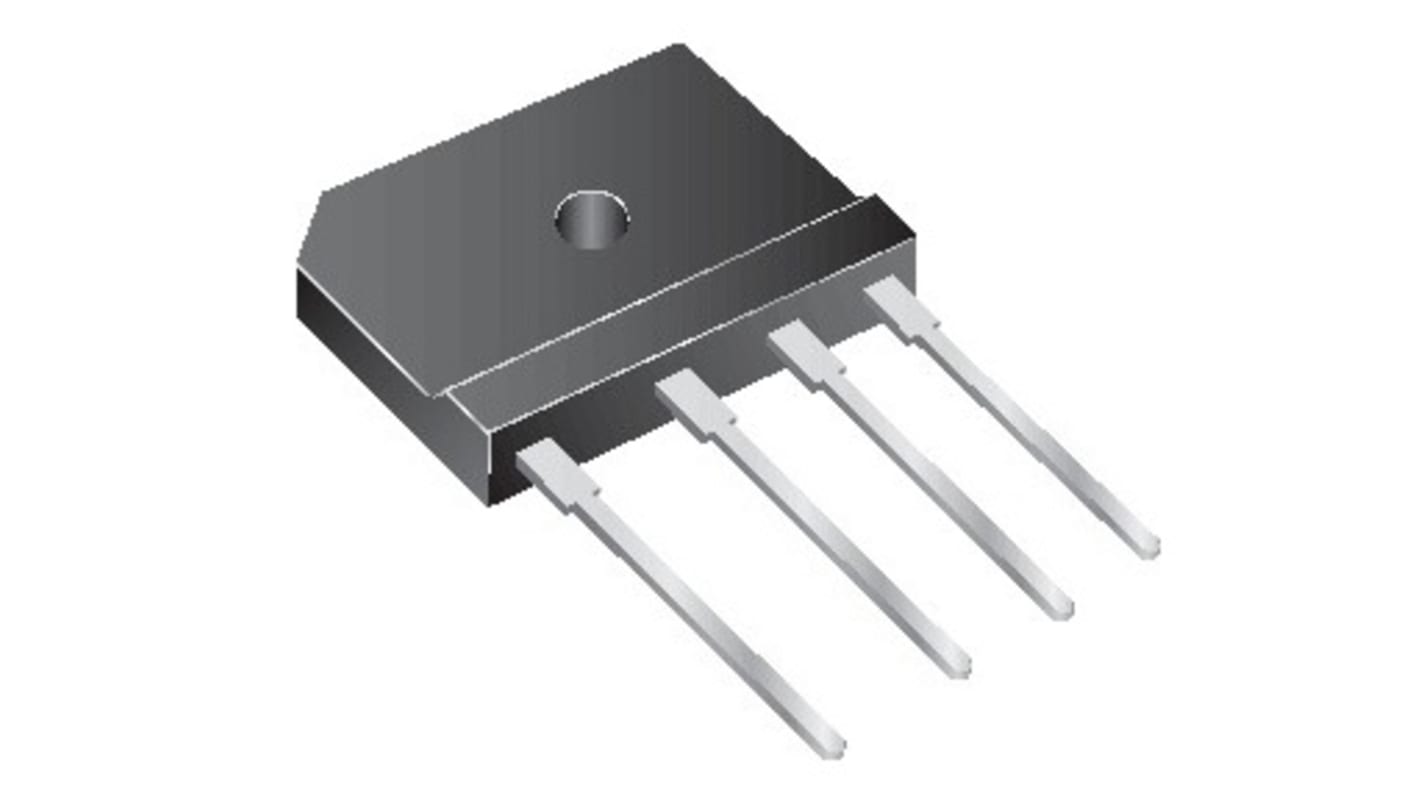

Vishay Bridge Rectifier, 15A, 600V, 4-Pin
- RS Stock No.:
- 279-9317P
- Mfr. Part No.:
- LVE1560E-M3/P
- Brand:
- Vishay
Bulk discount available
Subtotal 100 units (supplied in a tube)*
£287.00
(exc. VAT)
£344.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,036 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 198 | £2.87 |
| 200 - 498 | £2.615 |
| 500 - 998 | £2.485 |
| 1000 + | £2.29 |
*price indicative
- RS Stock No.:
- 279-9317P
- Mfr. Part No.:
- LVE1560E-M3/P
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Bridge Type | Single Phase | |
| Peak Average Forward Current | 15A | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | PCB Mount | |
| Package Type | GSIB-5S | |
| Pin Count | 4 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Bridge Type Single Phase | ||
Peak Average Forward Current 15A | ||
Peak Reverse Repetitive Voltage 600V | ||
Mounting Type PCB Mount | ||
Package Type GSIB-5S | ||
Pin Count 4 | ||
The Vishay low voltage single phase single in-line bridge rectifiers with high surge current capability. General purpose used in AC/DC bridge full wave rectification for switching power supply.
RoHS compliant
Oxide planar chip junction
Halogen free
UL 94 V-0 flammability rating
Low forward voltage drop
Oxide planar chip junction
Halogen free
UL 94 V-0 flammability rating
Low forward voltage drop
