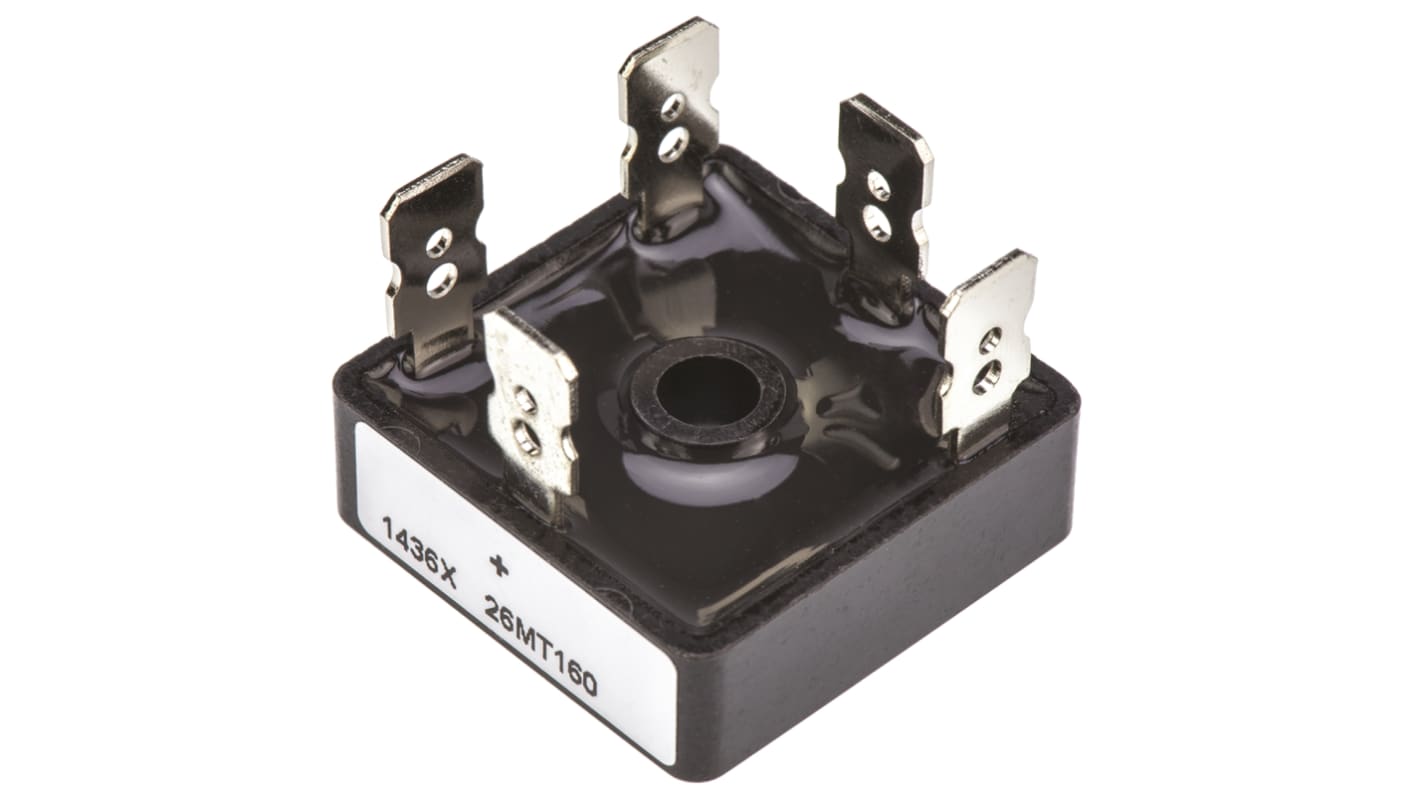

Vishay Bridge Rectifier, 25A, 1600V, 3-phase, 5-Pin
- RS Stock No.:
- 165-2536
- Mfr. Part No.:
- VS-26MT160
- Brand:
- Vishay
Available to back order for despatch 20/04/2026
Added
Price Each (In a Tray of 20)
£15.435
(exc. VAT)
£18.522
(inc. VAT)
| Units | Per unit | Per Tray* |
| 20 - 20 | £15.435 | £308.70 |
| 40 + | £14.664 | £293.28 |
| *price indicative | ||
- RS Stock No.:
- 165-2536
- Mfr. Part No.:
- VS-26MT160
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
Three Phase Bridge Rectifiers with Push-on Terminals, VS-26MT Series, Vishay Semiconductor
Universal, 3-way terminals: Push-on, wrap around or solder
High thermal conductivity package, electrically insulated case
Center hole fixing
Excellent power/volume ratio
High thermal conductivity package, electrically insulated case
Center hole fixing
Excellent power/volume ratio
Approvals
UL E300359
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
|---|---|
| Bridge Type | Three Phase |
| Peak Average Forward Current | 25A |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Through Hole |
| Package Type | D 63 |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 375A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.26V |
| Peak Reverse Current | 200µA |
| Dimensions | 28.5 x 28.5 x 10mm |
| Length | 28.5mm |
| Width | 28.5mm |
| Height | 10mm |
