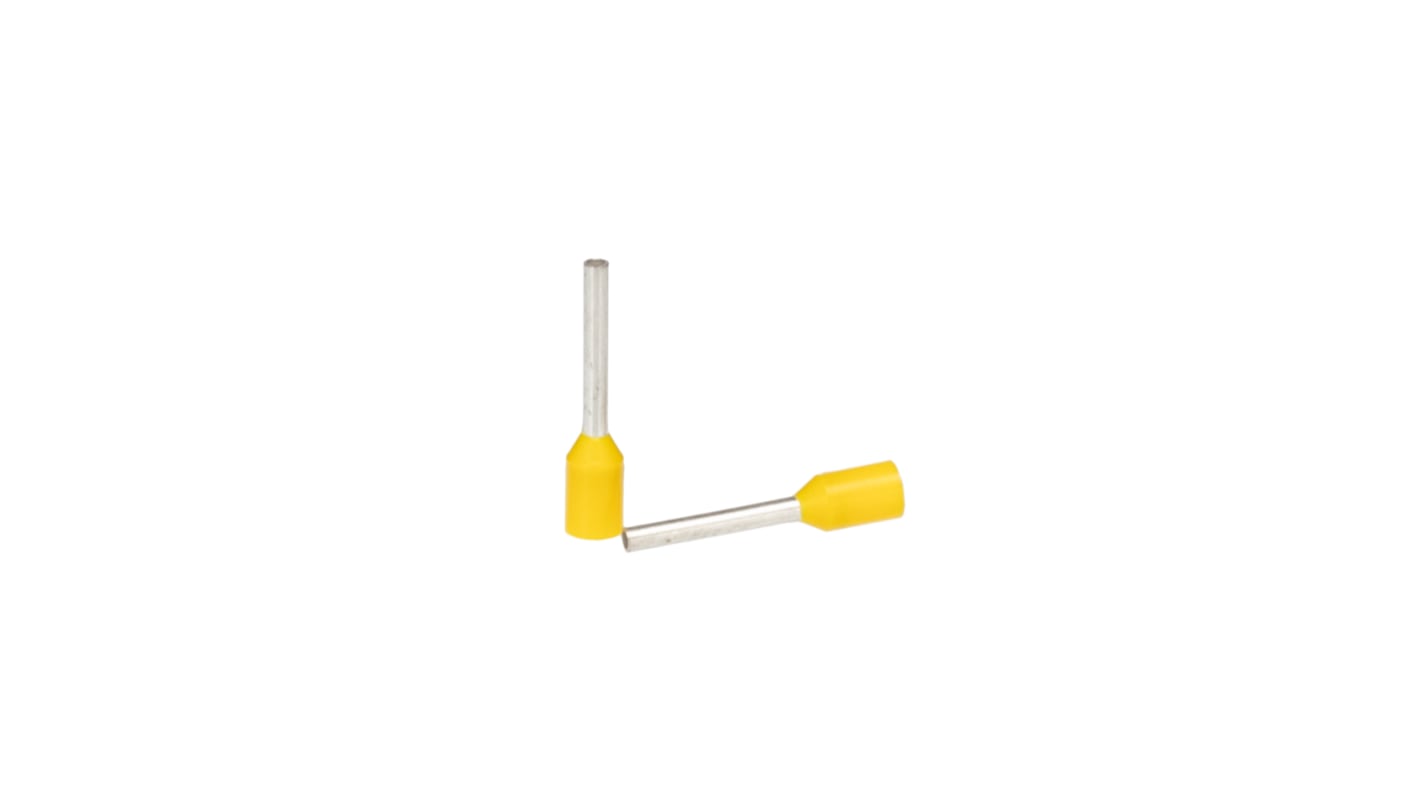

Phoenix Contact, AI Insulated Crimp Bootlace Ferrule, 8 mm Pin Length, 0.8 mm Pin Diameter, Yellow to 24 AWG Wire Size
- RS Stock No.:
- 804-6938
- Mfr. Part No.:
- 3203037
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 100 units)*
£28.40
(exc. VAT)
£34.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10,100 unit(s) shipping from 11 May 2026
- Plus 2,300 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.284 | £28.40 |
| 500 - 2400 | £0.242 | £24.20 |
| 2500 - 4900 | £0.199 | £19.90 |
| 5000 - 9900 | £0.171 | £17.10 |
| 10000 + | £0.162 | £16.20 |
*price indicative
- RS Stock No.:
- 804-6938
- Mfr. Part No.:
- 3203037
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Crimp Bootlace Ferrule | |
| Pin Diameter | 0.8mm | |
| Insulation Material | Plastic | |
| Colour | Yellow | |
| Pin Length | 8mm | |
| Insulation | Insulated | |
| Maximum Wire Size mm² | 0.25mm² | |
| Maximum Wire Size AWG | 24AWG | |
| Overall Length | 12.5mm | |
| Series | AI | |
| Terminal Plating | Tin | |
| Standards/Approvals | No | |
| Minimum Wire Size mm² | 0.25mm² | |
| Terminal Material | Deoxidised High Phosphorus Copper | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Crimp Bootlace Ferrule | ||
Pin Diameter 0.8mm | ||
Insulation Material Plastic | ||
Colour Yellow | ||
Pin Length 8mm | ||
Insulation Insulated | ||
Maximum Wire Size mm² 0.25mm² | ||
Maximum Wire Size AWG 24AWG | ||
Overall Length 12.5mm | ||
Series AI | ||
Terminal Plating Tin | ||
Standards/Approvals No | ||
Minimum Wire Size mm² 0.25mm² | ||
Terminal Material Deoxidised High Phosphorus Copper | ||
- COO (Country of Origin):
- DE
Phoenix Contact Crimp Bootlace Ferrule, 12.5mm Total Length, Pack of 100 - AI 0,25- 8 YE - 3203037
Looking for a secure connecting component? Count on this crimp bootlace ferrule from Phoenix Contact. Simply strip your cable and insert it through the plastic collar so the wires sit snugly inside the metal tube and the collar covers the insulation. Then, crimp the tube section to increase the contact area so you can be sure of highly efficient signal transfer. Using this installation method creates a gas-tight bond for reliable cable mounting, which is ideal for environments like switching cabinets. Don't worry about surges fusing your connections, as the sleeve separates wires to stop unwanted splicing.
Thanks to this ferrule's tin-plated copper pin, it's resistant to corrosion, which helps prevent damage in damp conditions. Tight spaces are no problem for this component's narrow 0.8mm pin diameter. For a boost to workplace safety, this is a halogen-free product that minimises the risk of toxic fumes forming in a fire
Features & Benefits
• Pin length of 8mm to reach deep-set terminals
• Works in temperatures between -40°C and +105°C to deliver reliable performance in tough environments
• Comes in a pack of 100, so you'll have plenty in supply for multiple tasks
