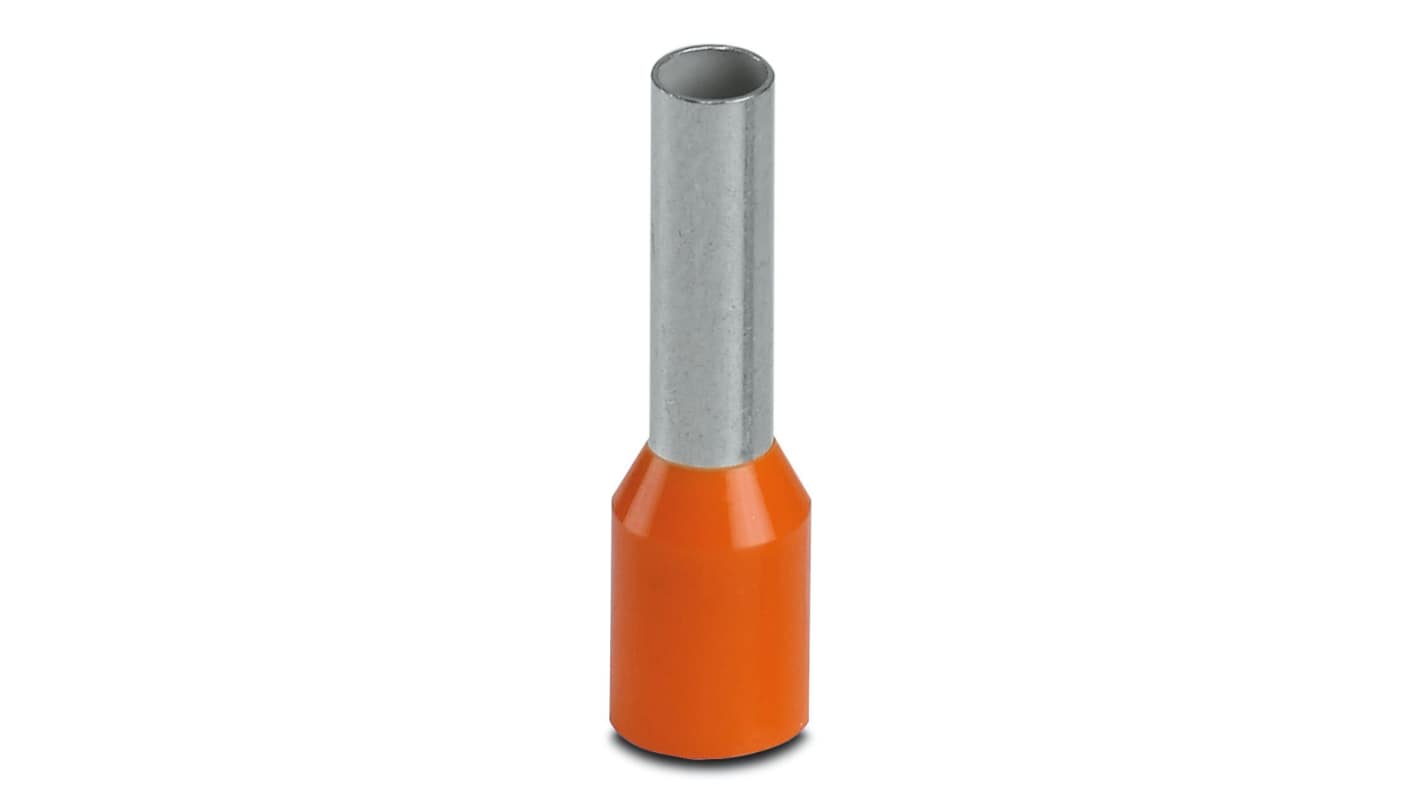

Phoenix Contact, AI4 -10 OG Insulated Crimp Bootlace Ferrule, 10mm Pin Length, 2.9mm Pin Diameter, 4mm² Wire Size,
- RS Stock No.:
- 804-6726
- Mfr. Part No.:
- 3200085
- Brand:
- Phoenix Contact
400 In stock - FREE next working day delivery available
300 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 100)
£0.266
(exc. VAT)
£0.319
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 400 | £0.266 | £26.60 |
| 500 - 2400 | £0.226 | £22.60 |
| 2500 - 4900 | £0.186 | £18.60 |
| 5000 - 9900 | £0.159 | £15.90 |
| 10000 + | £0.152 | £15.20 |
| *price indicative | ||
- RS Stock No.:
- 804-6726
- Mfr. Part No.:
- 3200085
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact Insulated Bootlace Wire Ferrules, AI Series, French Colour Coded
A range of french colour coded insulated bootlace wire ferrules made from soft tin plated electrolytic copper with a polypropylene insulating sleeve with dimensions that conform to DIN 46228-4: 1990-09 and color coding to french standard NF C 63-023: 1994-02.
For suitable hand crimp tools see stock numbers 803-4405, 803-4427 and 803-4402 typically
For suitable hand crimp tools see stock numbers 803-4405, 803-4427 and 803-4402 typically
Phoenix Contact Bootlace Ferrules
Specifications
Attribute | Value |
|---|---|
| Maximum Wire Size mm² | 4mm² |
| Pin Diameter | 2.9mm |
| Number of Entries | 1 |
| Insulation Material | Plastic |
| Colour | Orange |
| Pin Length | 10mm |
| Insulation | Insulated |
| Overall Length | 17.5mm |
| Series | AI4 -10 OG |
