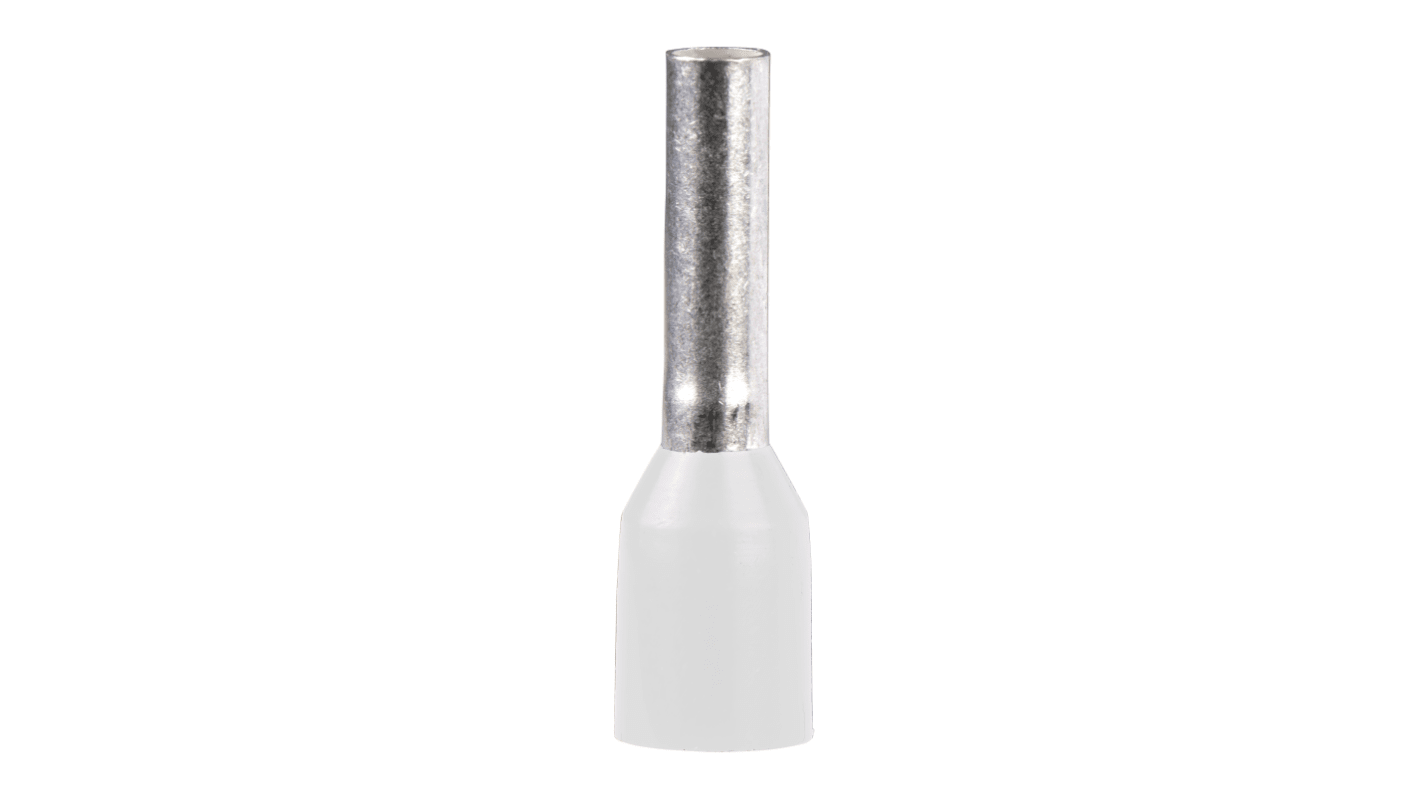

Schneider Electric, DZ5CE Insulated Crimp Bootlace Ferrule, 8.2mm Pin Length, 1.3mm Pin Diameter, 0.5mm² Wire Size,
- RS Stock No.:
- 254-6384
- Distrelec Article No.:
- 304-09-039
- Mfr. Part No.:
- DZ5CE005
- Brand:
- Schneider Electric
Bulk discount available
Subtotal (1 box of 100 units)*
£7.20
(exc. VAT)
£8.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15,400 unit(s) ready to ship
- Plus 73,800 unit(s) ready to ship from another location
- Plus 12,000 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
100 - 400 | £0.072 | £7.20 |
500 - 2400 | £0.065 | £6.50 |
2500 - 4900 | £0.057 | £5.70 |
5000 - 9900 | £0.05 | £5.00 |
10000 + | £0.043 | £4.30 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 254-6384
- Distrelec Article No.:
- 304-09-039
- Mfr. Part No.:
- DZ5CE005
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Maximum Wire Size mm² | 0.5mm² | |
Pin Diameter | 1.3mm | |
Insulation Material | Plastic | |
Number of Entries | 1 | |
Colour | White | |
Pin Length | 8.2mm | |
Insulation | Insulated | |
Maximum Wire Size AWG | 22AWG | |
Overall Length | 13mm | |
Series | DZ5CE | |
Better World Product | Yes | |
Better World Verification | Green Premium | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Maximum Wire Size mm² 0.5mm² | ||
Pin Diameter 1.3mm | ||
Insulation Material Plastic | ||
Number of Entries 1 | ||
Colour White | ||
Pin Length 8.2mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 22AWG | ||
Overall Length 13mm | ||
Series DZ5CE | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
- COO (Country of Origin):
- DE
Schneider Electric DZ5CE Series Crimp Bootlace Ferrule, 0.5mm² Maximum Wire size, 8.2mm Pin Length - DZ5CE005
This crimp bootlace ferrule is an essential wiring accessory designed for single conductor connections. With a maximum wire size of 0.5 mm² and a pin diameter of 1.3mm, it ensures robust electrical performance. Made from halogen-free plastic, it offers durability and safety in various electrical applications, with a total length of 14mm.
Features & Benefits
• Insulated design enhances safety in electrical connections
• Copper tube material ensures excellent conductivity
• Simplifies installation with a single conductor design
• Designed for compatibility with 22 AWG wiring
• Copper tube material ensures excellent conductivity
• Simplifies installation with a single conductor design
• Designed for compatibility with 22 AWG wiring
Applications
• Used for reliable terminations in circuit boards
• Ideal for connecting wiring in automation systems
• Effective in electrical installations for mechanical equipment
• Suitable for use in various electronics projects
• Ideal for connecting wiring in automation systems
• Effective in electrical installations for mechanical equipment
• Suitable for use in various electronics projects
What is the temperature range for safe operation?
The product can operate effectively within an ambient air temperature range of -20 to 105 °C, making it suitable for diverse environments.
How do the materials used contribute to its performance?
The combination of copper tube and halogen-free plastic ensures optimal conductivity and reduces the risk of hazardous emissions, meeting safety and environmental standards.
What quantity do the packages typically contain?
The crimp bootlace ferrule is available in several packaging options, including sets of 100 and larger quantities for extensive projects, making it ideal for bulk use.
Is there any specific installation tool recommended for this ferrule?
Typically, a standard crimping tool designed for bootlace ferrules is recommended to ensure secure connections, minimising the risk of connection failure.
