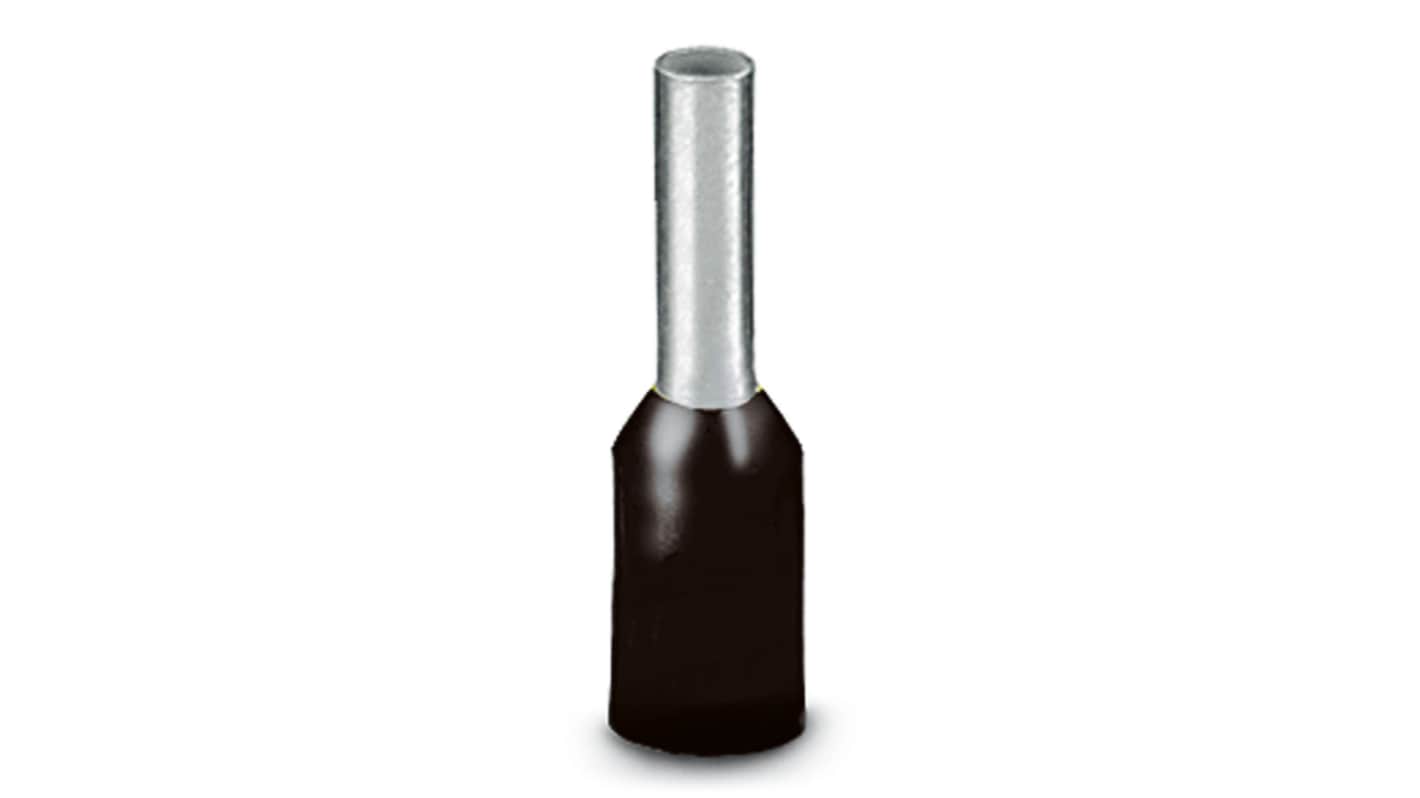

Phoenix Contact, 5 - 8 BK, AI 1 Insulated Ferrule, 8mm Pin Length, 1.8mm Pin Diameter, Black

View all Bootlace Ferrules

Subtotal (1 pack of 100 units)*

£6.20

(exc. VAT)

£7.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6,700 unit(s) ready to ship
  • Plus 7,600 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 +£0.062£6.20

*price indicative

RS Stock No.:
186-0166
Mfr. Part No.:
3200043
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Pin Diameter

1.8mm

Number of Entries

1

Colour

Black

Pin Length

8mm

Insulation

Insulated

Maximum Wire Size AWG

16AWG

Overall Length

14mm

Series

5 - 8 BK, AI 1

COO (Country of Origin):
DE

Phoenix Contact AI 1,5 - 8 BK Series Ferrule, 1.5mm² Maximum Wire size, 1.8mm Pin Diameter - 3200043


This ferrule is an insulated connector designed to secure wire terminations effectively. With a sleeve length of 8mm and an overall length of 14mm, it accommodates maximum wire sizes of 1.5mm² or 16AWG. The device, crafted from soft tin-plated electrolytic copper, enhances connection reliability while preventing wire splicing, making it ideal for various electrical applications.

Features & Benefits


• Facilitates processing of conductors as small as 0.14mm²
• Tin-plated copper construction ensures increased corrosion resistance
• Insulation reliability enhances connection stability
• Designed to fit stranded conductors for versatile applications
• Short-term temperature exposure up to 120°C without compromising integrity
• Compliant with standards for secure electrical connections

Applications


• Used with stranded conductors in electrical terminals
• Ideal for wire connections in automation systems
• Suitable for requiring durable electrical terminations
• Employed in machinery and equipment wiring configurations

What is the maximum stripping length for this ferrule?


The maximum stripping length is 11mm, allowing for sufficient exposure of the wire to ensure a secure connection.

How does the insulation affect the connection performance?


The insulation ensures that close connections remain secure and prevents any accidental wire splicing, enhancing overall safety and performance.

Is this ferrule suitable for high-temperature environments?


Yes, it can withstand short-term temperatures of up to 120°C, making it suitable for various high-temperature applications.

What type of conductors can be used with this connector?


It is specifically designed for stranded conductors of class 2, 5, and 6, providing flexibility and reliability in wire termination solutions.

How is the ferrule's environmental compliance addressed?


The product is free from hazardous substances above threshold values, complying with environmental standards such as China RoHS.
