RS PRO Crimp Bootlace Ferrule, 9.5mm Pin Length, 6.1 mm, 7.5 mm Pin Diameter, 0.75mm² Wire Size
- RS Stock No.:
- 178-7365
- Brand:
- RS PRO
Available to back order for despatch 04/06/2024
Added
Price Each (In a Bag of 100)
£0.039
(exc. VAT)
£0.047
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.039 | £3.90 |
| 1000 - 1900 | £0.035 | £3.50 |
| 2000 - 4900 | £0.032 | £3.20 |
| 5000 - 9900 | £0.03 | £3.00 |
| 10000 + | £0.027 | £2.70 |
| *price indicative | ||
- RS Stock No.:
- 178-7365
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

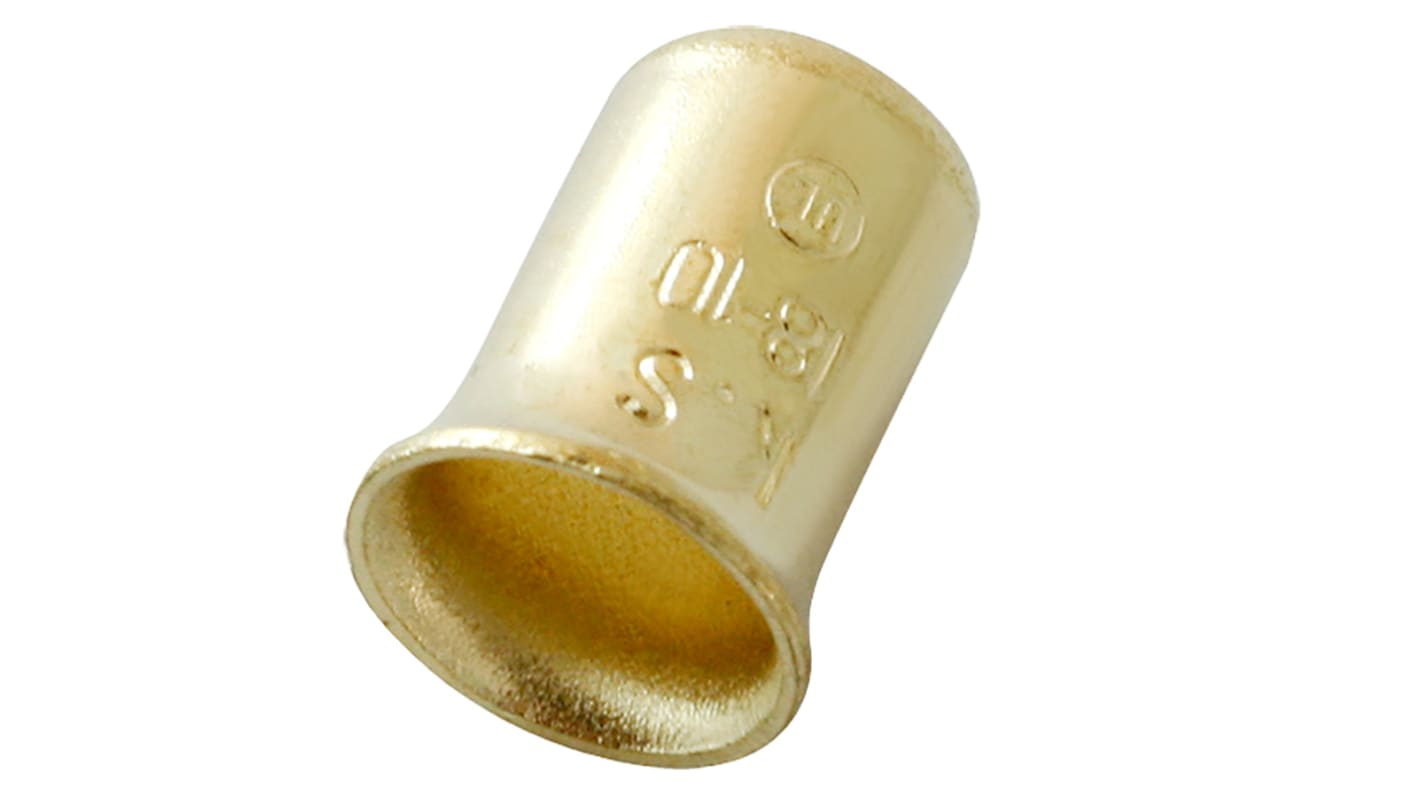

The RS PRO Uninsulated crimp bootlace ferrule has overall length of 9.5mm. It create a reliable electrical connection without the need for screws or spring clamps.
Terminal Material: Copper tube
Surface Treatment: Standard chemical treatment
Surface Treatment: Standard chemical treatment
Specifications
Attribute | Value |
|---|---|
| Maximum Wire Size mm² | 0.75mm² |
| Pin Diameter | 6.1 mm, 7.5 mm |
| Number of Entries | 1 |
| Pin Length | 9.5mm |
| Insulation | Uninsulated |
| Maximum Wire Size AWG | 18AWG |
| Overall Length | 9.5mm |
| Minimum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
