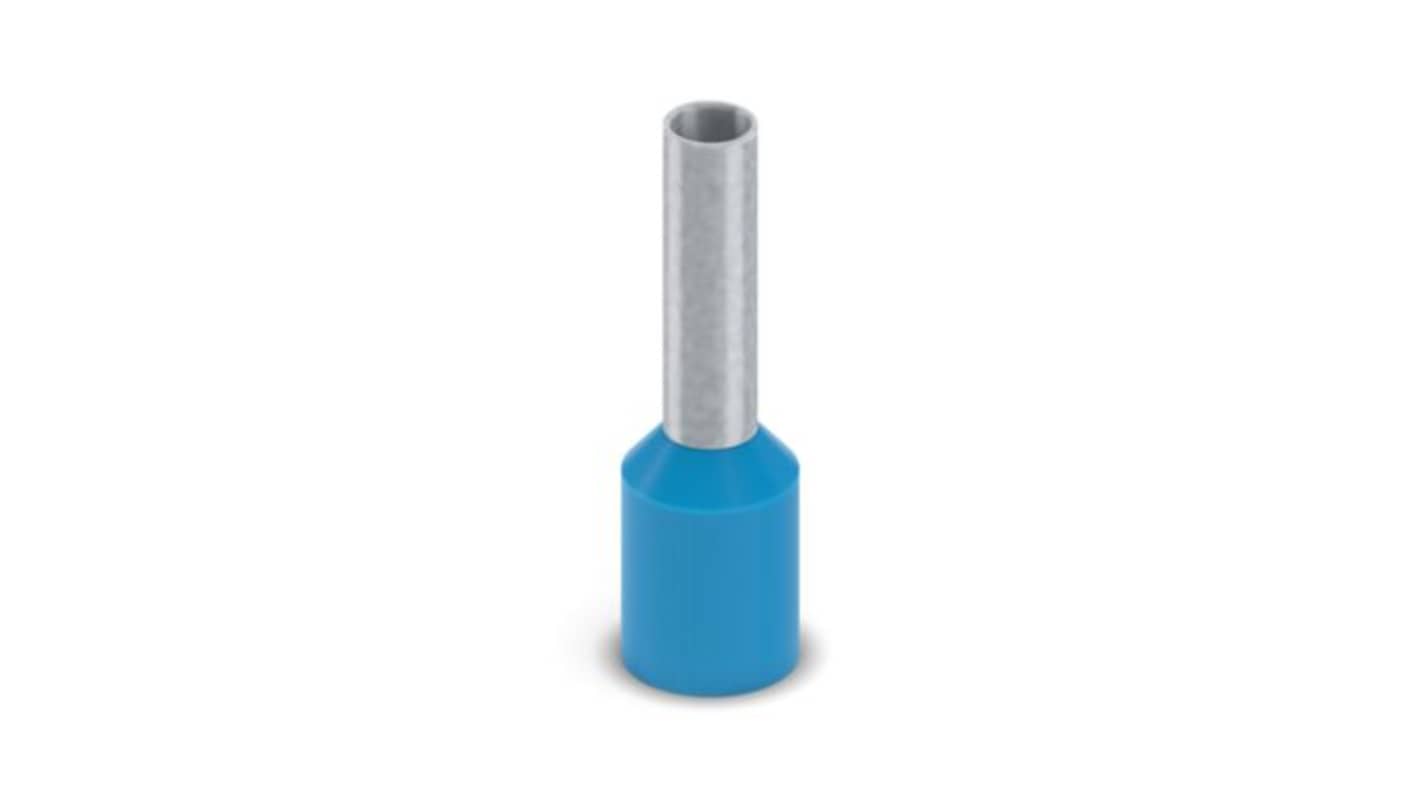

Phoenix Contact, Ferrule A Insulated Bootlace Ferrule, 14mm Pin Length, 2.3mm Pin Diameter, Blue
- RS Stock No.:
- 556-546
- Mfr. Part No.:
- 2100237
- Brand:
- Phoenix Contact
Subtotal (1 pack of 1000 units)*
£37.51
(exc. VAT)
£45.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £37.51 | £0.038 |
*price indicative
- RS Stock No.:
- 556-546
- Mfr. Part No.:
- 2100237
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pin Diameter | 2.3mm | |
Number of Entries | 1 | |
Insulation Material | Polypropylene | |
Colour | Blue | |
Pin Length | 14mm | |
Insulation | Yes | |
Series | Ferrule A | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pin Diameter 2.3mm | ||
Number of Entries 1 | ||
Insulation Material Polypropylene | ||
Colour Blue | ||
Pin Length 14mm | ||
Insulation Yes | ||
Series Ferrule A | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Ferrule is an innovative solution designed for seamless conductor connections in various applications. This top-tier cable end sleeve is crafted from high-quality, soft tin-plated electrolytic copper, ensuring superior conductivity and reliability. The product features a robust polypropylene insulating collar that meets UL 486F standards. Engineered for use with stranded conductors and compliant with multiple cable standards, it offers simplified installation while promoting safety in electrical systems. The ferrule is suitable for conductor cross sections of up to 2.5 mm², making it an ideal choice for professionals seeking both efficiency and performance in their electrical connectors.
Features a blue colour, compliant with RAL 5015
Robust construction with a flammability rating according to UL 94 HB
Like the sleeve length of 14 mm, tailored for precise installations
Offers high-temperature resistance, functioning effectively up to 120°C
Components are silicone and halogen-free for sensitive environments
Robust construction with a flammability rating according to UL 94 HB
Like the sleeve length of 14 mm, tailored for precise installations
Offers high-temperature resistance, functioning effectively up to 120°C
Components are silicone and halogen-free for sensitive environments
