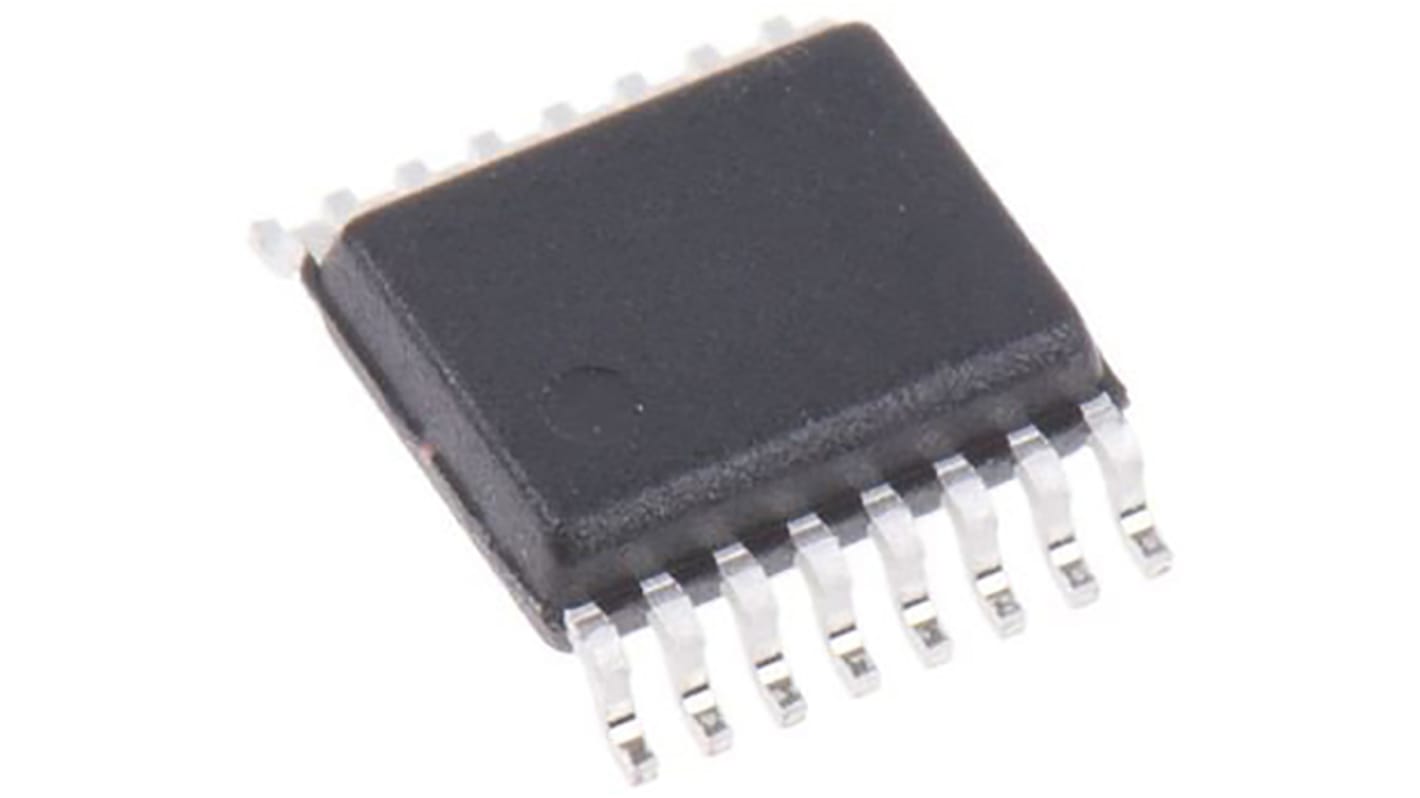

Maxim Integrated MAX1705EEE+, DC to DC Boost Converter, Step Up 800mA Adjustable, 400 kHz 16-Pin, QSOP
- RS Stock No.:
- 540-3145
- Mfr. Part No.:
- MAX1705EEE+
- Brand:
- Maxim Integrated
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 2)
£2.695
(exc. VAT)
£3.234
(inc. VAT)
- RS Stock No.:
- 540-3145
- Mfr. Part No.:
- MAX1705EEE+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Regulator Function | Step Up | |
| Maximum Output Current | 800mA | |
| Number of Outputs | 1 | |
| Maximum Input Voltage | 5.5 V | |
| Load Regulation | 0.65 % | |
| Mounting Type | Surface Mount | |
| Package Type | QSOP | |
| Pin Count | 16 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 400 kHz | |
| Switching Regulator | Yes | |
| Efficiency | 96% | |
| Dimensions | 4.98 x 3.99 x 1.55mm | |
| Height | 1.55mm | |
| Maximum Output Voltage | 5.5 V | |
| Maximum Operating Temperature | +85 °C | |
| Length | 4.98mm | |
| Width | 3.99mm | |
| Minimum Input Voltage | 0.7 V | |
| Minimum Output Voltage | 2.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Regulator Function Step Up | ||
Maximum Output Current 800mA | ||
Number of Outputs 1 | ||
Maximum Input Voltage 5.5 V | ||
Load Regulation 0.65 % | ||
Mounting Type Surface Mount | ||
Package Type QSOP | ||
Pin Count 16 | ||
Output Type Adjustable | ||
Maximum Switching Frequency 400 kHz | ||
Switching Regulator Yes | ||
Efficiency 96% | ||
Dimensions 4.98 x 3.99 x 1.55mm | ||
Height 1.55mm | ||
Maximum Output Voltage 5.5 V | ||
Maximum Operating Temperature +85 °C | ||
Length 4.98mm | ||
Width 3.99mm | ||
Minimum Input Voltage 0.7 V | ||
Minimum Output Voltage 2.5 V | ||
Minimum Operating Temperature -40 °C | ||
Switching Regulators, Step-Up DC-DC Converters, Maxim Integrated
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
Switching Voltage Regulators, Maxim Integrated
