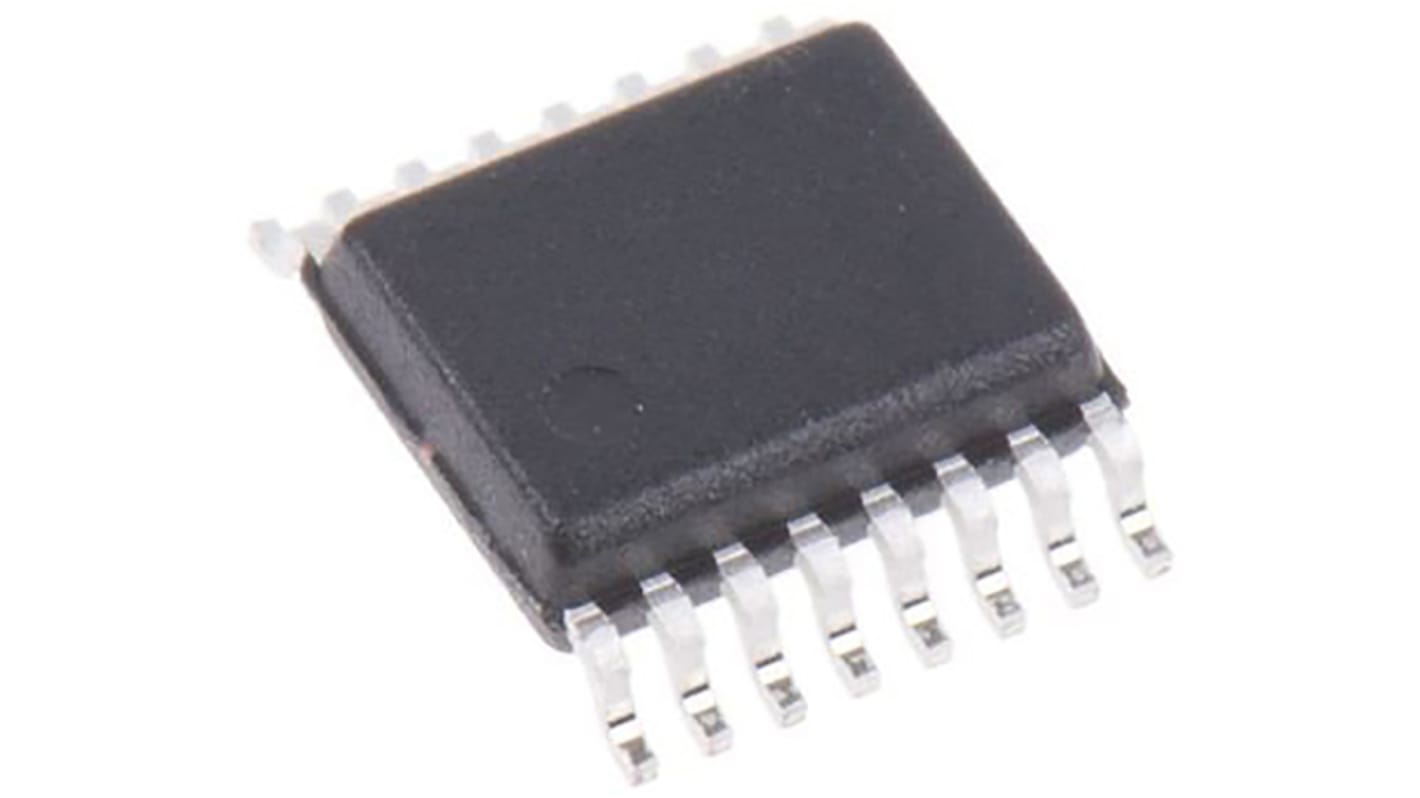

Maxim Integrated, MAX15046CAEE+ Switching Regulator, 1-Channel 25A Adjustable 16-Pin, QSOP
- RS Stock No.:
- 783-3838
- Mfr. Part No.:
- MAX15046CAEE+
- Brand:
- Maxim
Discontinued
- RS Stock No.:
- 783-3838
- Mfr. Part No.:
- MAX15046CAEE+
- Brand:
- Maxim
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim | |
| Maximum Output Current | 25A | |
| Maximum Output Voltage | 5.5 V | |
| Regulator Function | Buck Controller | |
| Minimum Output Voltage | 5 V | |
| Minimum Input Voltage | 4.5 V | |
| Maximum Input Voltage | 40 V | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Pin Count | 16 | |
| Maximum Switching Frequency | 1.1 MHz | |
| Package Type | QSOP | |
| Switching Regulator | Yes | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Length | 4.98mm | |
| Height | 1.55mm | |
| Width | 3.99mm | |
| Dimensions | 4.98 x 3.99 x 1.55mm | |
| Select all | ||
|---|---|---|
Brand Maxim | ||
Maximum Output Current 25A | ||
Maximum Output Voltage 5.5 V | ||
Regulator Function Buck Controller | ||
Minimum Output Voltage 5 V | ||
Minimum Input Voltage 4.5 V | ||
Maximum Input Voltage 40 V | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Pin Count 16 | ||
Maximum Switching Frequency 1.1 MHz | ||
Package Type QSOP | ||
Switching Regulator Yes | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Length 4.98mm | ||
Height 1.55mm | ||
Width 3.99mm | ||
Dimensions 4.98 x 3.99 x 1.55mm | ||
Switching Regulators, Step-Down DC-DC Controllers, Maxim Integrated
Switching Voltage Regulators, Maxim Integrated
