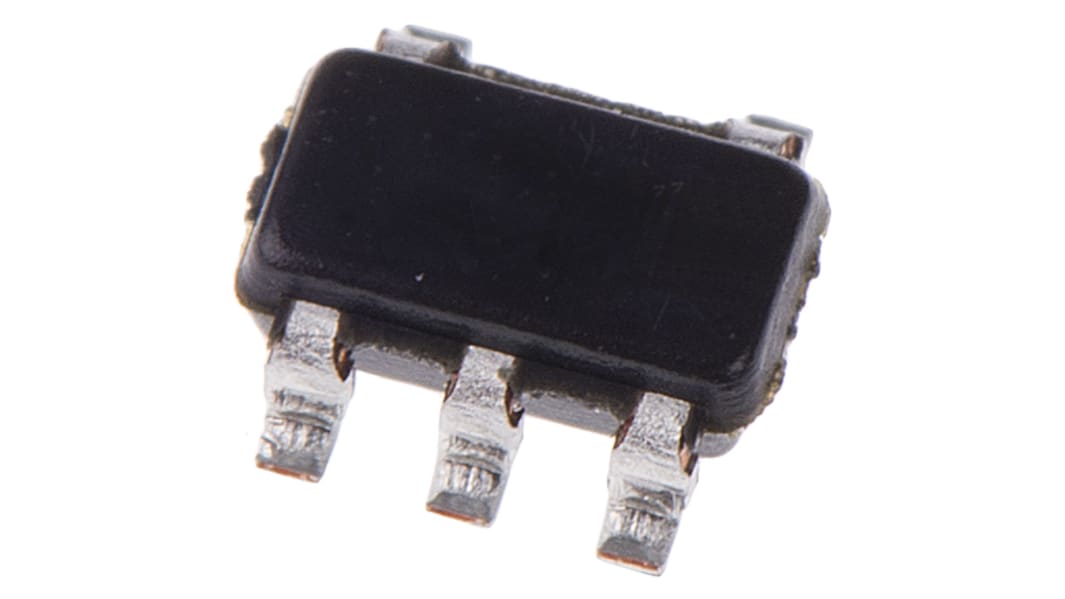

Texas Instruments LM2735XMF/NOPB, Boost Converter, Step Up 3A Adjustable, 1600 kHz 5-Pin, SOT-23
- RS Stock No.:
- 407-183
- Mfr. Part No.:
- LM2735XMF/NOPB
- Brand:
- Texas Instruments
10 In stock - FREE next working day delivery available
50 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£1.884
(exc. VAT)
£2.261
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £1.884 | £9.42 |
| 25 - 45 | £1.79 | £8.95 |
| 50 - 120 | £1.612 | £8.06 |
| 125 - 245 | £1.45 | £7.25 |
| 250 + | £1.378 | £6.89 |
| *price indicative | ||
- RS Stock No.:
- 407-183
- Mfr. Part No.:
- LM2735XMF/NOPB
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Up (Boost) DC/DC Converters (Integrated Switch), Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 3A |
| Maximum Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1600 kHz |
| Switching Regulator | Yes |
| Efficiency | 90% |
| Dimensions | 2.92 x 1.6 x 1.02mm |
| Maximum Output Voltage | 24 V |
| Height | 1.02mm |
| Minimum Input Voltage | 2.7 V |
| Minimum Output Voltage | 3 V |
| Maximum Operating Temperature | +125 °C |
| Length | 2.92mm |
| Width | 1.6mm |
| Minimum Operating Temperature | -40 °C |
