Microchip BM20SPKS1NBC-0001AA Bluetooth Chip 4.1

View all Bluetooth Modules

Subtotal (1 unit)*

£7.11

(exc. VAT)

£8.53

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Last RS stock
  • Final 13 unit(s), ready to ship
Units
Per unit
1 +£7.11

*price indicative

RS Stock No.:
177-9780
Mfr. Part No.:
BM20SPKS1NBC-0001AA
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Bluetooth Class

Class 2

Product Type

Bluetooth Chip

Bluetooth Version

4.1

Maximum Output Power

4dBm

Receiver Sensitivity

-91dBm

Frequency

2.48GHz

Interface Type

UART, I2S

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

3.3V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Standards/Approvals

No

Series

BM20

Height

7.62mm

Length

322.6mm

Width

135.9 mm

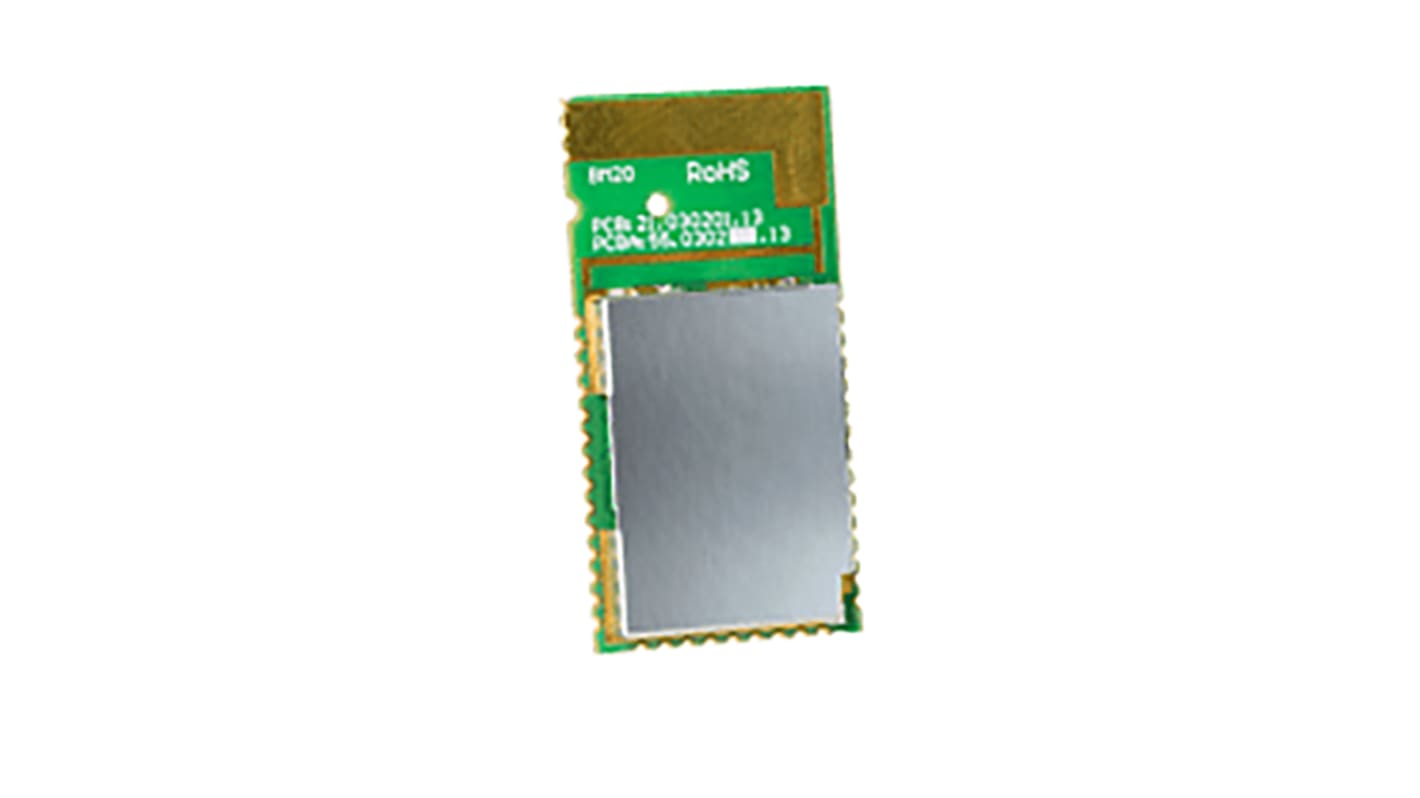

The BM20 stereo module is a Bluetooth® (BDR/EDR) module for designers who want to add Bluetooth wireless audio and voice applications to their products. This module provides a complete wireless solution with Bluetooth stack, integrated antenna, and worldwide radio certifications in a compact surface mount package, 29 x 15 x 2.5 mm3. This stereo module contains a digital audio interface. It supports HSP, HFP, SPP, A2DP, and AVRCP profiles.

Complete, Fully Certified, Embedded 2.4 GHz Bluetooth® Module

Bluetooth Classic (BDR/EDR)

Onboard embedded Bluetooth Stack

Transparent UART mode for seamless serial data over UART interface

Easy to configure with Windows GUI or direct by MCU

Firmware can be field upgradable via UART

Compact surface mount module: 29 x 15 x 2.5 mm3

Castellated surface mount pads for easy and reliable host PCB mounting

Environmentally friendly

Perfect for Portable Battery Operated Devices

Internal Battery Regulator Circuitry
