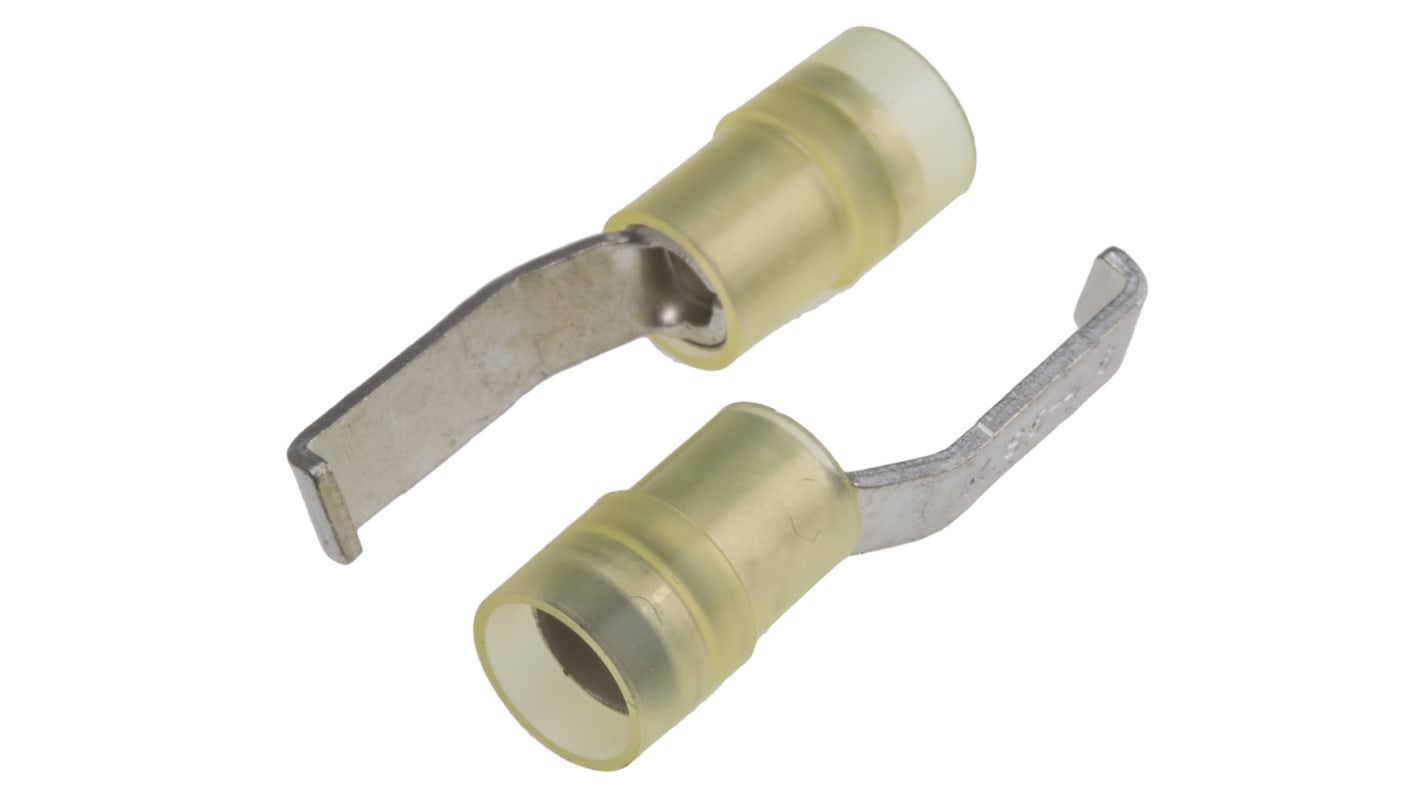

RS PRO Hooked Insulated Crimp Blade Terminal 17.2mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow

View all Blade Terminals
Bulk discount available

Subtotal (1 pack of 100 units)*

£21.10

(exc. VAT)

£25.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5,700 unit(s) ready to ship
  • Plus 2,000 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 400£0.211£21.10
500 - 2400£0.18£18.00
2500 +£0.158£15.80

*price indicative

RS Stock No.:
267-4394
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Gender

Male

Insulation

Insulated

Insulation Material

Nylon

Minimum Wire Size mm²

4mm²

Shrouded/Unshrouded

Unshrouded

Maximum Wire Size mm²

6mm²

Minimum Wire Size AWG

12AWG

Maximum Wire Size AWG

10AWG

Overall Length

30.2mm

Inner Diameter

7mm

Blade Length

17.2mm

Blade Width

4.6mm

Blade Thickness

1mm

Hooked

Yes

Colour

Yellow

Contact Plating

Tin

Contact Material

Copper

COO (Country of Origin):
TW

RS PRO Insulated Double Crimp Hook Blade Terminals


RS PRO range of insulated double crimp hook blade terminals made from brass with a copper-sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and of excellent quality.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.

Features & Benefits


  • Gender: Male

  • Insulation: Insulated

  • Shrouded: Unshrouded

  • Insulation Material: Nylon

  • Various colours available

  • Contact Material: Copper Contact Plating: Tin

Hook Blade Colour Code


  • Red 0.5 - 1.5 mm²

  • Blue 1 - 2.6 mm²

  • Yellow 2.5 - 6.5 mm²

Note


For hook blades, the overall lengths are 27·4 mm (red), 28·4mm (blue) and 30·2mm (yellow). The size quoted is blade width.

Approvals


UL Listed; UL Listed for Canada

Note

For Hook blades (see stock no. 267-4063) the overall lengths are 27·4 (red), 28·4 (blue) and 30·2 (yellow). Size quoted is blade width.

Approvals

UL Listed; UL Listed for Canada
