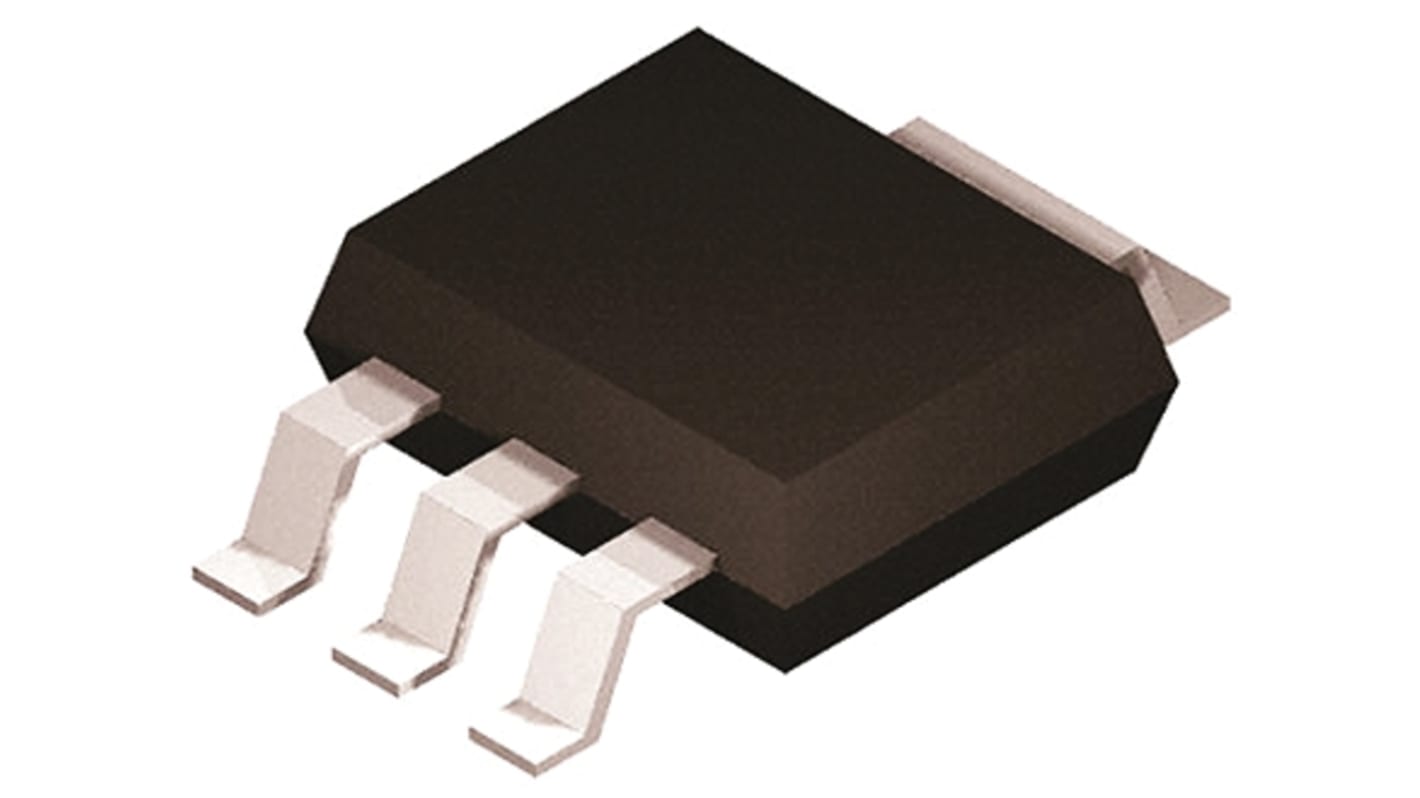

Nexperia PBHV9215Z,115 PNP Transistor, 2 A, 150 V, 3 + Tab-Pin SOT-223
- RS Stock No.:
- 816-0661
- Mfr. Part No.:
- PBHV9215Z,115
- Brand:
- Nexperia
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 20)
£0.118
(exc. VAT)
£0.142
(inc. VAT)
| Units | Per unit | Per Pack* |
| 20 + | £0.118 | £2.36 |
| *price indicative | ||
- RS Stock No.:
- 816-0661
- Mfr. Part No.:
- PBHV9215Z,115
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Low Saturation Voltage PNP Transistors
A range of NXP BISS (Breakthrough In Small Signal) Low Saturation Voltage PNP Bipolar Junction Transistors. These devices feature very low collector-emitter saturation voltages and high collector current capacities in compact space-saving packages. The reduced losses of these transistors results in lower heat generation and an overall increase in efficiency when used in switching and digital applications.
Bipolar Transistors, Nexperia
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 2 A |
| Maximum Collector Emitter Voltage | 150 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.45 W |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | -200 V |
| Maximum Emitter Base Voltage | -6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 + Tab |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Priced to Clear | Yes |
| Dimensions | 6.7 x 3.7 x 1.8mm |
- RS Stock No.:
- 816-0661
- Mfr. Part No.:
- PBHV9215Z,115
- Brand:
- Nexperia
