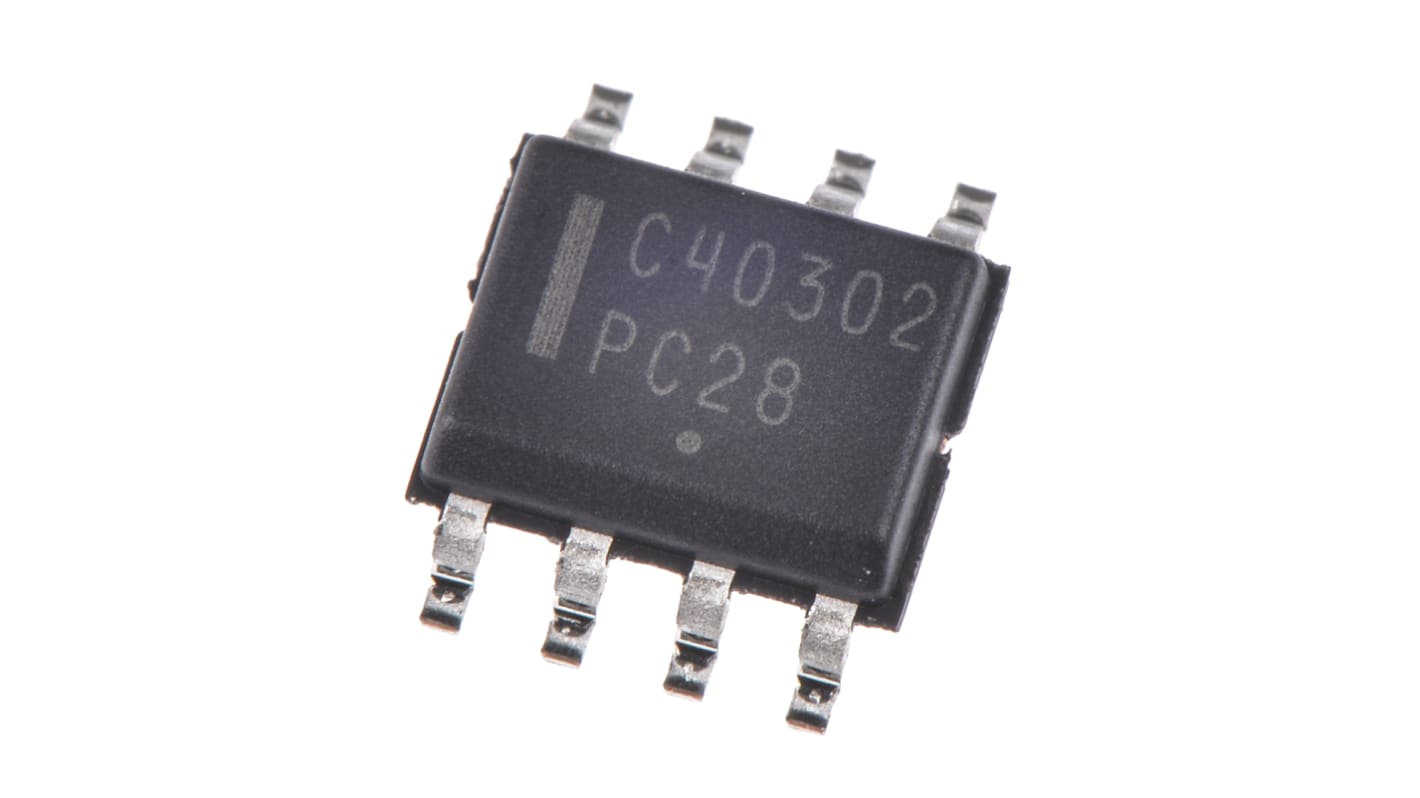

onsemi NSS40302PDR2G Transistor, 3 A NPN + PNP, 40 V, 8-Pin SOIC
- RS Stock No.:
- 805-4522
- Mfr. Part No.:
- NSS40302PDR2G
- Brand:
- onsemi
Subtotal (1 tape of 25 units)*
£22.225
(exc. VAT)
£26.675
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,275 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 25 + | £0.889 | £22.23 |
*price indicative
- RS Stock No.:
- 805-4522
- Mfr. Part No.:
- NSS40302PDR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 3A | |
| Maximum Collector Emitter Voltage Vceo | 40V | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Transistor Configuration | Isolated | |
| Maximum Collector Base Voltage VCBO | 40V | |
| Transistor Polarity | NPN + PNP | |
| Minimum DC Current Gain hFE | 180 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Emitter Base Voltage VEBO | 6V | |
| Maximum Power Dissipation Pd | 783mW | |
| Maximum Transition Frequency ft | 100MHz | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 150°C | |
| Length | 5mm | |
| Standards/Approvals | No | |
| Series | e2PowerEdge | |
| Height | 1.75mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 3A | ||
Maximum Collector Emitter Voltage Vceo 40V | ||
Package Type SOIC | ||
Mount Type Surface | ||
Transistor Configuration Isolated | ||
Maximum Collector Base Voltage VCBO 40V | ||
Transistor Polarity NPN + PNP | ||
Minimum DC Current Gain hFE 180 | ||
Minimum Operating Temperature -55°C | ||
Maximum Emitter Base Voltage VEBO 6V | ||
Maximum Power Dissipation Pd 783mW | ||
Maximum Transition Frequency ft 100MHz | ||
Pin Count 8 | ||
Maximum Operating Temperature 150°C | ||
Length 5mm | ||
Standards/Approvals No | ||
Series e2PowerEdge | ||
Height 1.75mm | ||
Automotive Standard AEC-Q101 | ||
Dual NPN/PNP Transistors, ON Semiconductor
Dual transistor packages each containing an NPN and a PNP device
