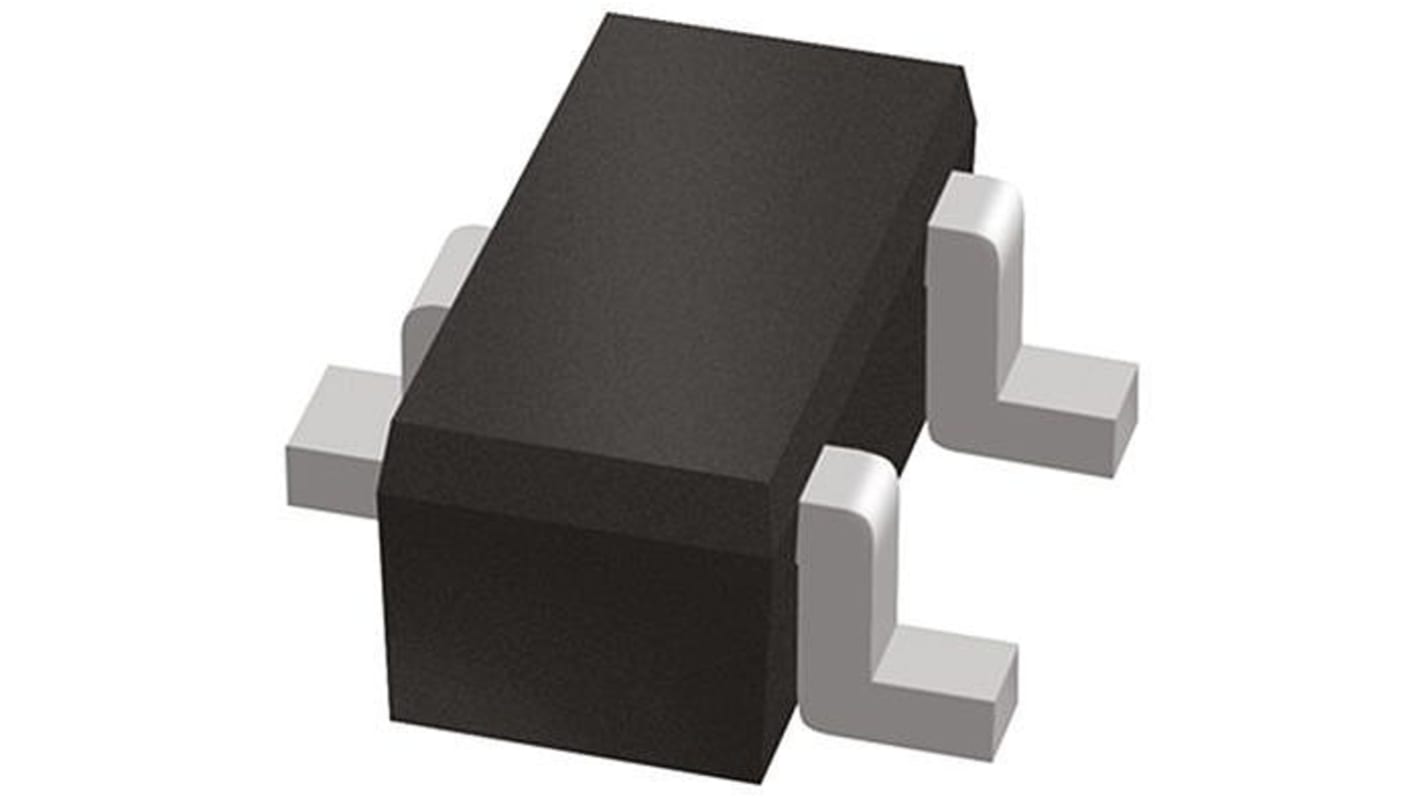

onsemi DTC114EET1G Digital Transistor, 50 V NPN 100 mA Surface, 3-Pin

View all Bipolar Transistors
Bulk discount available

Subtotal (1 tape of 200 units)*

£9.20

(exc. VAT)

£11.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 26,400 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
200 - 200£0.046£9.20
400 - 800£0.044£8.80
1000 - 1800£0.023£4.60
2000 - 3800£0.022£4.40
4000 +£0.021£4.20

*price indicative

Packaging Options:
RS Stock No.:
791-6034
Mfr. Part No.:
DTC114EET1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

Digital Transistor

Maximum Collector Emitter Voltage Vceo

50V

Mount Type

Surface

Transistor Configuration

Single

Maximum Collector Base Voltage VCBO

50V

Maximum Continuous Collector Current Ic

100mA

Maximum Power Dissipation Pd

338mW

Minimum DC Current Gain hFE

35

Transistor Polarity

NPN

Maximum Collector Emitter Saturation Voltage VceSAT

0.25V

Maximum Emitter Base Voltage VEBO

50V

Maximum Operating Temperature

150°C

Pin Count

3

Length

1.65mm

Series

DTC114EE

Width

1.7 mm

Standards/Approvals

RoHS, Pb-Free

Height

0.9mm

Automotive Standard

AEC-Q101

Dual Resistor Digital NPN Transistors, ON Semiconductor


Digital Transistors, ON Semiconductor


Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.

Standards

Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
