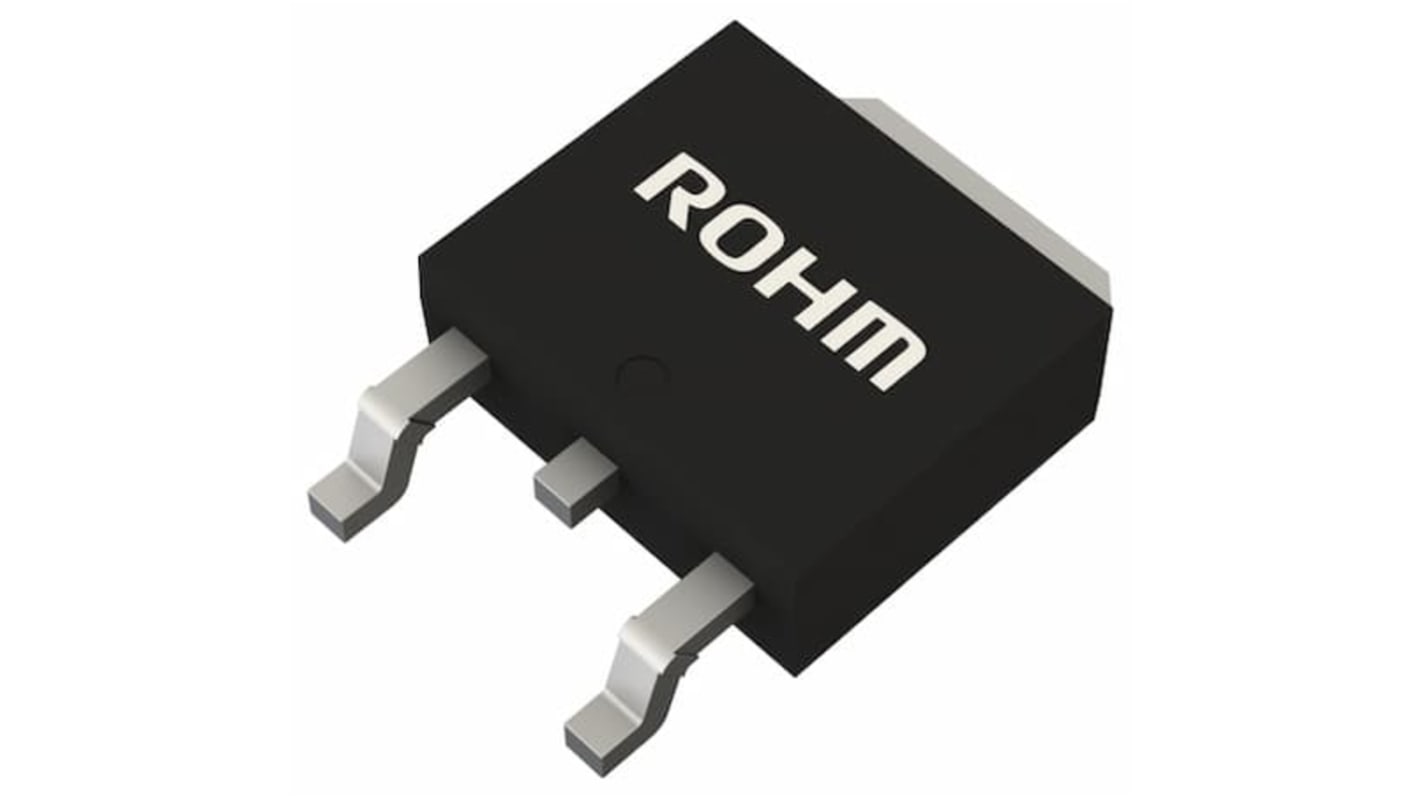

ROHM Bipolar Transistor, -7 A PNP, -50 V, 3-Pin DPAK
- RS Stock No.:
- 255-7652
- Mfr. Part No.:
- 2SAR583D3FRATL
- Brand:
- ROHM
Subtotal (1 reel of 2500 units)*
£1,710.00
(exc. VAT)
£2,052.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.684 | £1,710.00 |
*price indicative
- RS Stock No.:
- 255-7652
- Mfr. Part No.:
- 2SAR583D3FRATL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | -7A | |
| Maximum Collector Emitter Voltage Vceo | -50V | |
| Package Type | TO-252 | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | -50V | |
| Minimum Operating Temperature | -55°C | |
| Transistor Polarity | PNP | |
| Maximum Power Dissipation Pd | 10mW | |
| Maximum Transition Frequency ft | 230MHz | |
| Minimum DC Current Gain hFE | 450 | |
| Maximum Emitter Base Voltage VEBO | -6V | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Height | 10.5mm | |
| Length | 6.8mm | |
| Series | 2SAR583D3 FRA | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc -7A | ||
Maximum Collector Emitter Voltage Vceo -50V | ||
Package Type TO-252 | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO -50V | ||
Minimum Operating Temperature -55°C | ||
Transistor Polarity PNP | ||
Maximum Power Dissipation Pd 10mW | ||
Maximum Transition Frequency ft 230MHz | ||
Minimum DC Current Gain hFE 450 | ||
Maximum Emitter Base Voltage VEBO -6V | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Height 10.5mm | ||
Length 6.8mm | ||
Series 2SAR583D3 FRA | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The ROHM PNP power transistor has collector current of -7A and collector emitter voltage of -50V.
Suitable for power driver
Complementary NPN types : 2SCR583D3 FRA
Low VCE(sat), VCE(sat)=-400mV(Max.). (IC/IB=-3A/-150mA)
