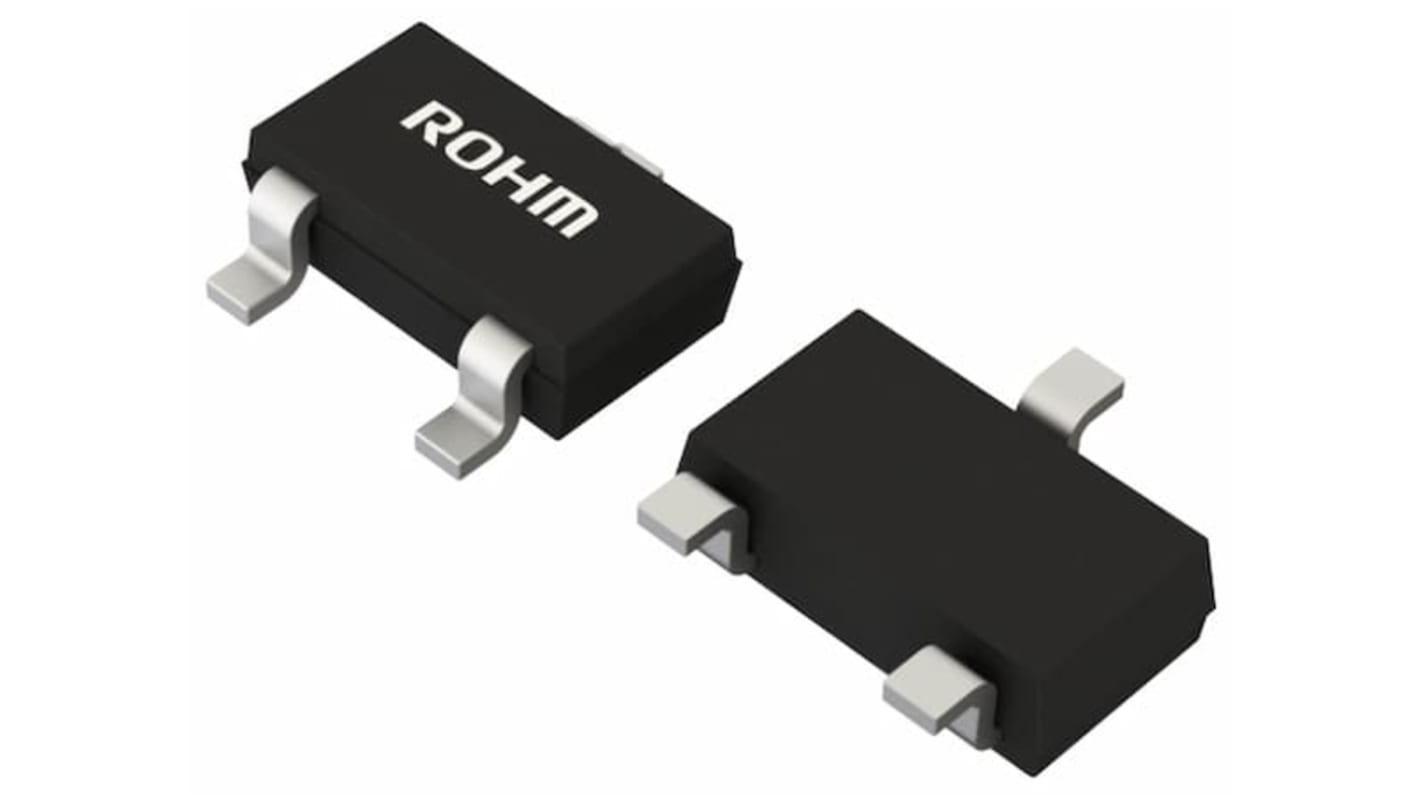

ROHM Bipolar Transistor, -1 A PNP, -50 V, 3-Pin SOT-346
- RS Stock No.:
- 255-7650
- Mfr. Part No.:
- 2SAR513RHZGTL
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£522.00
(exc. VAT)
£627.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.174 | £522.00 |
*price indicative
- RS Stock No.:
- 255-7650
- Mfr. Part No.:
- 2SAR513RHZGTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | -1A | |
| Maximum Collector Emitter Voltage Vceo | -50V | |
| Package Type | SOT-346 | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | -50V | |
| Maximum Power Dissipation Pd | 0.5W | |
| Maximum Transition Frequency ft | 400MHz | |
| Minimum DC Current Gain hFE | 450 | |
| Maximum Emitter Base Voltage VEBO | -6V | |
| Minimum Operating Temperature | -55°C | |
| Transistor Polarity | PNP | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Series | 2SAR513R HZG | |
| Standards/Approvals | No | |
| Height | 3mm | |
| Length | 3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc -1A | ||
Maximum Collector Emitter Voltage Vceo -50V | ||
Package Type SOT-346 | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO -50V | ||
Maximum Power Dissipation Pd 0.5W | ||
Maximum Transition Frequency ft 400MHz | ||
Minimum DC Current Gain hFE 450 | ||
Maximum Emitter Base Voltage VEBO -6V | ||
Minimum Operating Temperature -55°C | ||
Transistor Polarity PNP | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Series 2SAR513R HZG | ||
Standards/Approvals No | ||
Height 3mm | ||
Length 3mm | ||
Automotive Standard No | ||
The ROHM middle power transistor is PNP type 1.0A, 50V transistor used for middle power driver.
Suitable for Middle Power Driver
Complementary NPN Types:2SCR513R HZG
Low VCE(sat) VCE(sat)=-400mV(Max.) (IC/IB=-500mA/-25mA)
AEC-Q101 Qualified
