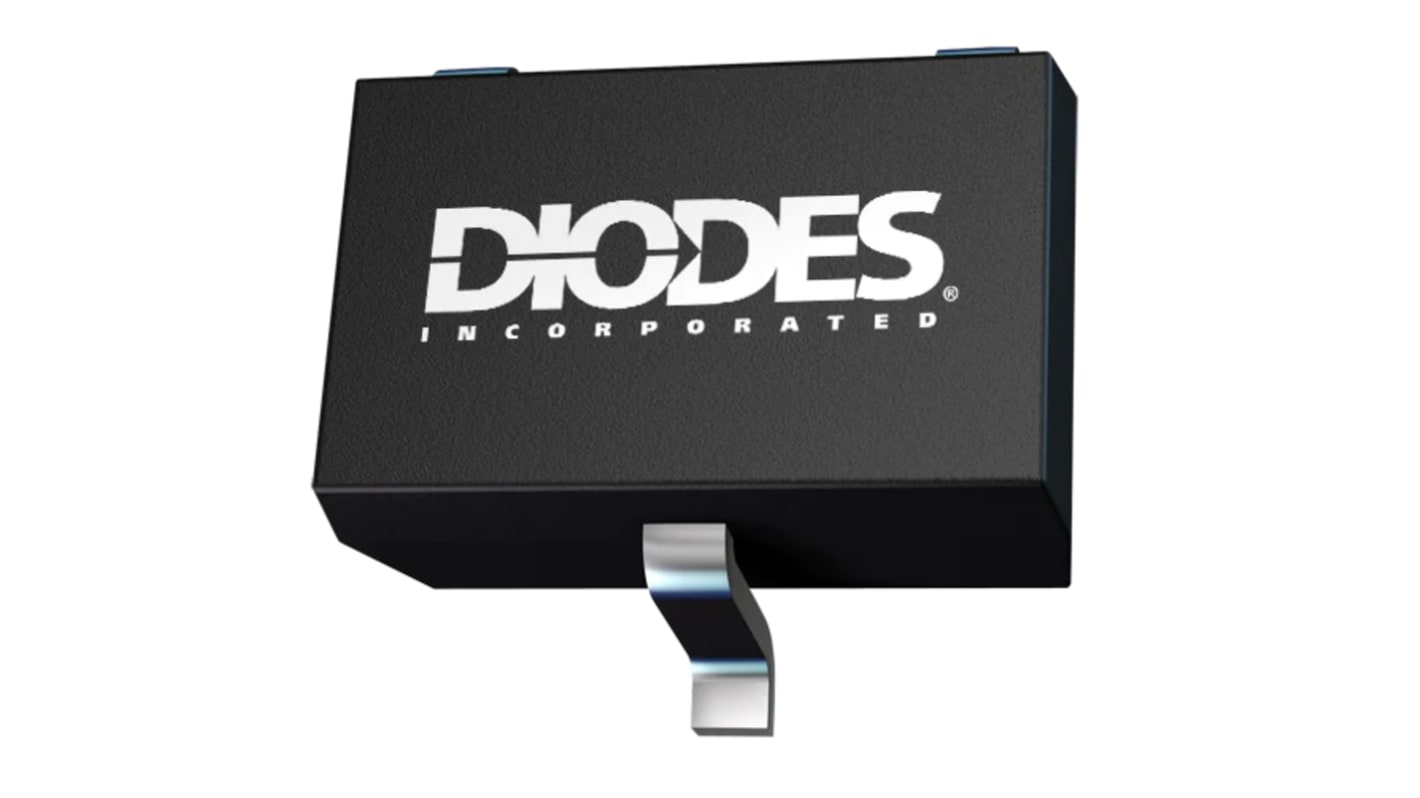

Diodes Inc BC857CWQ-13 Bipolar Transistor, -100 mA PNP, -45 V, 4-Pin SOT-323
- RS Stock No.:
- 254-8534
- Mfr. Part No.:
- BC857CWQ-13
- Brand:
- DiodesZetex
Stock information currently inaccessible
- RS Stock No.:
- 254-8534
- Mfr. Part No.:
- BC857CWQ-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | -100mA | |
| Maximum Collector Emitter Voltage Vceo | -45V | |
| Package Type | SOT-323 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | -50V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Transition Frequency ft | 200MHz | |
| Maximum Power Dissipation Pd | 1.1W | |
| Transistor Polarity | PNP | |
| Maximum Emitter Base Voltage VEBO | -5V | |
| Minimum DC Current Gain hFE | 800 | |
| Pin Count | 4 | |
| Maximum Operating Temperature | 150°C | |
| Series | BC857CWQ | |
| Length | 2.15mm | |
| Standards/Approvals | RoHS | |
| Height | 2.1mm | |
| Automotive Standard | AEC-Q200, AEC-Q101, AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc -100mA | ||
Maximum Collector Emitter Voltage Vceo -45V | ||
Package Type SOT-323 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO -50V | ||
Minimum Operating Temperature -55°C | ||
Maximum Transition Frequency ft 200MHz | ||
Maximum Power Dissipation Pd 1.1W | ||
Transistor Polarity PNP | ||
Maximum Emitter Base Voltage VEBO -5V | ||
Minimum DC Current Gain hFE 800 | ||
Pin Count 4 | ||
Maximum Operating Temperature 150°C | ||
Series BC857CWQ | ||
Length 2.15mm | ||
Standards/Approvals RoHS | ||
Height 2.1mm | ||
Automotive Standard AEC-Q200, AEC-Q101, AEC-Q100 | ||
The DiodeZetex bipolar junction transistor (BJT) is designed to meet the stringent requirements of automotive applications.
Ideally suited for automatic insertion
For switching and AF amplifier applications
Halogen and antimony free
