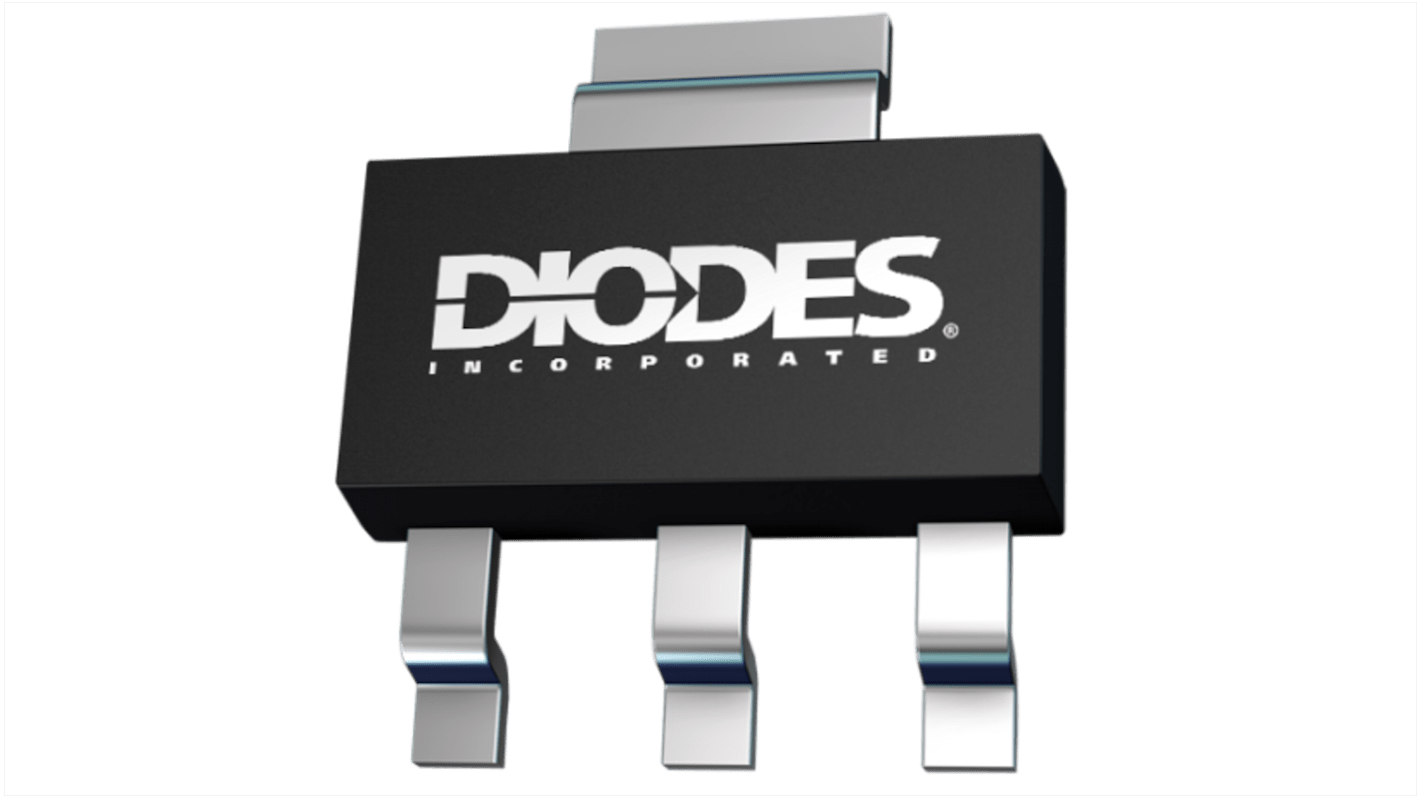

Diodes Inc BCP5616TTC Low Saturation Bipolar Transistor, -1 A PNP, -80 V, 4-Pin SOT-223
- RS Stock No.:
- 246-7453
- Mfr. Part No.:
- BCP5616TTC
- Brand:
- DiodesZetex
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 246-7453
- Mfr. Part No.:
- BCP5616TTC
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Low Saturation Bipolar Transistor | |
| Maximum DC Collector Current Idc | -1A | |
| Maximum Collector Emitter Voltage Vceo | -80V | |
| Package Type | SOT-223 | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | 100V | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Minimum DC Current Gain hFE | 250 | |
| Transistor Polarity | PNP | |
| Maximum Power Dissipation Pd | 2.5W | |
| Maximum Transition Frequency ft | 150MHz | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 4 | |
| Standards/Approvals | RoHS | |
| Height | 7mm | |
| Length | 6.5mm | |
| Automotive Standard | AEC-Q100, AEC-Q200, AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Low Saturation Bipolar Transistor | ||
Maximum DC Collector Current Idc -1A | ||
Maximum Collector Emitter Voltage Vceo -80V | ||
Package Type SOT-223 | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO 100V | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Minimum DC Current Gain hFE 250 | ||
Transistor Polarity PNP | ||
Maximum Power Dissipation Pd 2.5W | ||
Maximum Transition Frequency ft 150MHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Pin Count 4 | ||
Standards/Approvals RoHS | ||
Height 7mm | ||
Length 6.5mm | ||
Automotive Standard AEC-Q100, AEC-Q200, AEC-Q101 | ||
The DiodesZetex makes an NPN, low saturation medium power transistor. With the SOT223 packaging, this device offers BVCEO greater than 80 V and low saturation voltage of less than -500 mV, it is designed for temperatures exceeding -55°C to 150°C. The device has power dissipation of 2W. The package is Lead, halogen and Antimony Free. It is well suited for applications like medium power switching or amplification applications, AF Driver and output stages.
The Collector-Emitter voltage is 80 V The device has ul flammability classification rating of 94V-0 The device has moisture sensitivity of level 3 per J-STD-020 The Terminal finish is Matte Tin annealed over Copper
