Nexperia PDTC114EQBZ 3 NPN Digital Transistor, 100 mA, 50 V DFN1110D-3
- RS Stock No.:
- 243-4715
- Mfr. Part No.:
- PDTC114EQBZ
- Brand:
- Nexperia
5000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 5000)
£0.034
(exc. VAT)
£0.041
(inc. VAT)
| Units | Per unit | Per Reel* |
| 5000 - 5000 | £0.034 | £170.00 |
| 10000 - 20000 | £0.03 | £150.00 |
| 25000 - 45000 | £0.027 | £135.00 |
| 50000 + | £0.025 | £125.00 |
| *price indicative | ||
- RS Stock No.:
- 243-4715
- Mfr. Part No.:
- PDTC114EQBZ
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details

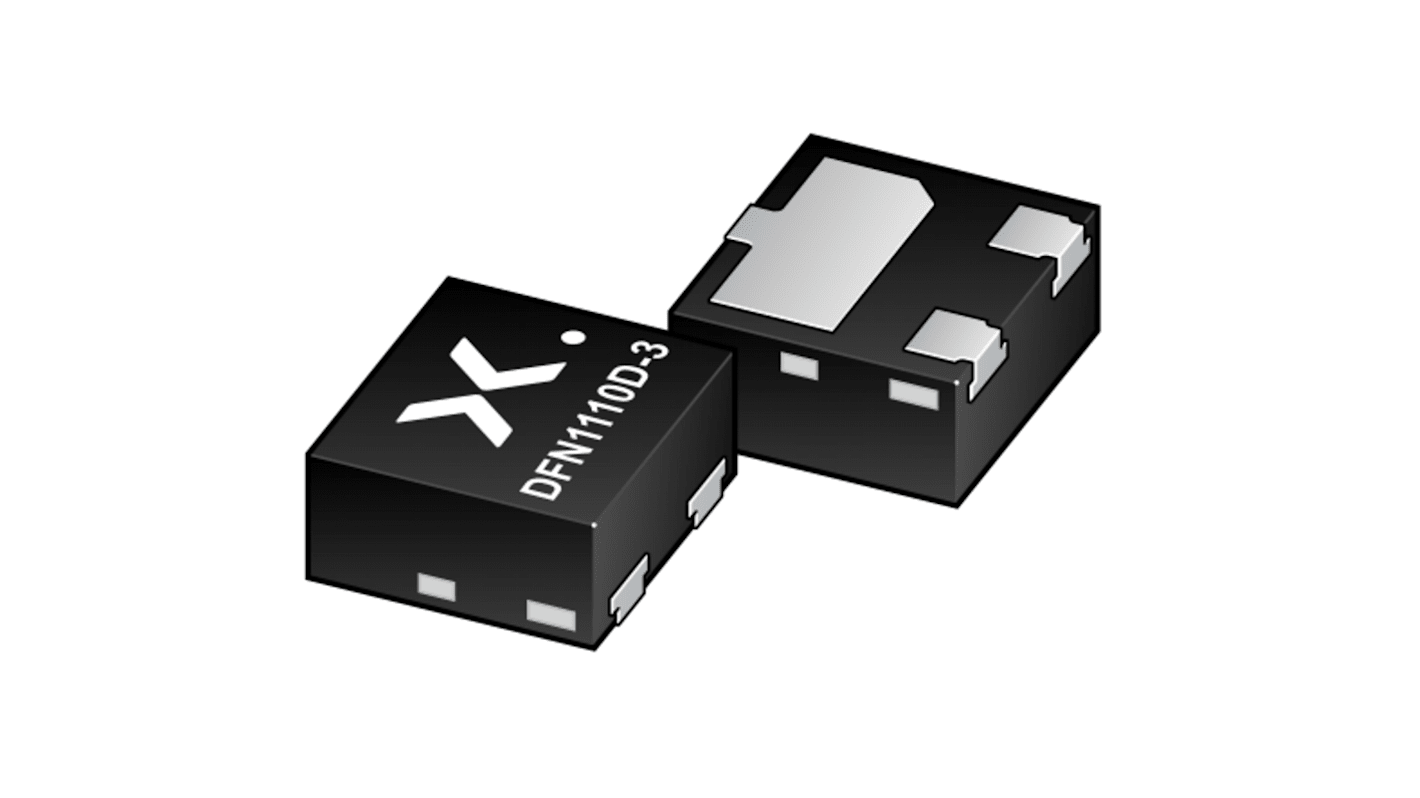

The Nexperia NPN resistor equipped transistor (RET) family in an ultra small DFN1110D-3 (SOT8015) leadless surface mounted device (SMD) having plastic package with side-wettable flanks.
100 mA output current capability
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
Suitable for automatic optical inspection (AOI) of solder joint
Built-in resistors
Simplifies circuit design
Reduces component count
Reduces pick and place costs
Low package height of 0.5 mm
Suitable for automatic optical inspection (AOI) of solder joint
Digital applications
Cost saving alternative for BC857 series in digital applications
Controlling IC inputs
Switching loads
Cost saving alternative for BC857 series in digital applications
Controlling IC inputs
Switching loads
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Package Type | DFN1110D-3 |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 3 |
