Nexperia BC807-25QC-QZ PNP Transistor, -500 mA, -45 V DFN1412D-3
- RS Stock No.:
- 240-1768
- Mfr. Part No.:
- BC807-25QC-QZ
- Brand:
- Nexperia
5000 In stock - FREE next working day delivery available
Price Each (On a Reel of 5000)
£0.039
(exc. VAT)
£0.047
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 - 5000 | £0.039 | £195.00 |
| 10000 - 20000 | £0.035 | £175.00 |
| 25000 + | £0.034 | £170.00 |
*price indicative
- RS Stock No.:
- 240-1768
- Mfr. Part No.:
- BC807-25QC-QZ
- Brand:
- Nexperia
Technical Reference
Legislation and Compliance
Product Details

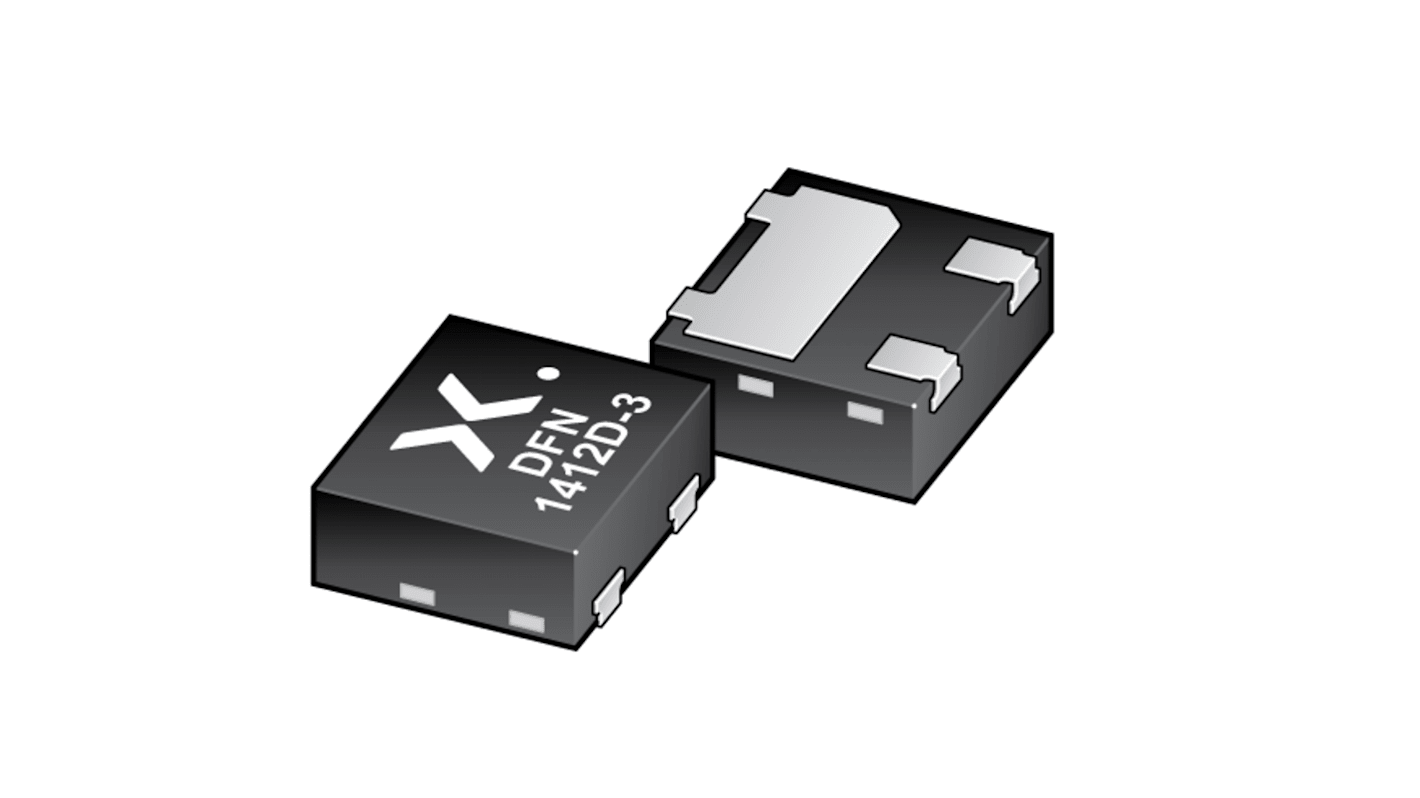

The Nexperia PNP general-purpose transistor is in an ultra small DFN1412D-3 (SOT8009) leadless Surface-Mounted Device (SMD) plastic package with side-wettable flanks.
High power dissipation capability
High current
Three current gain selections
Suitable for Automatic Optical Inspection (AOI) of solder joint
Smaller footprint compared to conventional leaded SMD packages
Low package height of 0.5 mm
Qualified according to AEC-Q101 and recommended for use in automotive applications
High current
Three current gain selections
Suitable for Automatic Optical Inspection (AOI) of solder joint
Smaller footprint compared to conventional leaded SMD packages
Low package height of 0.5 mm
Qualified according to AEC-Q101 and recommended for use in automotive applications
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | -500 mA |
| Maximum Collector Emitter Voltage | -45 V |
| Package Type | DFN1412D-3 |
| Mounting Type | Surface Mount |
| Minimum DC Current Gain | 160 |
