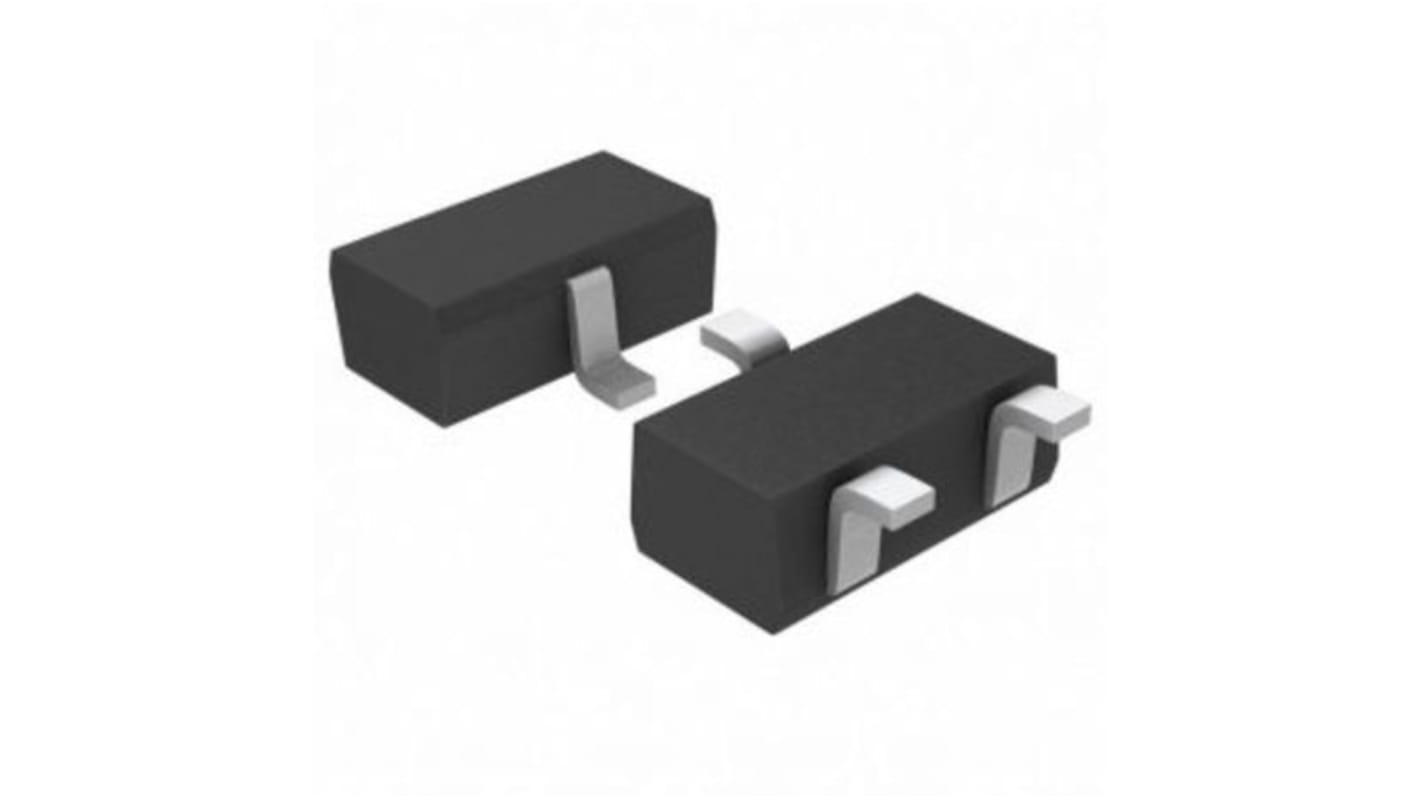

ROHM DTC143ZCAHZGT116 Digital Transistor, 50 V NPN 100 mA, 3-Pin Surface
- RS Stock No.:
- 215-9711
- Mfr. Part No.:
- DTC143ZCAHZGT116
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£75.00
(exc. VAT)
£90.00
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 6,000 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.025 | £75.00 |
*price indicative
- RS Stock No.:
- 215-9711
- Mfr. Part No.:
- DTC143ZCAHZGT116
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Digital Transistor | |
| Maximum Collector Emitter Voltage Vceo | 50V | |
| Mount Type | Surface | |
| Minimum DC Current Gain hFE | 80 | |
| Maximum Power Dissipation Pd | 200mW | |
| Maximum Continuous Collector Current Ic | 100mA | |
| Transistor Polarity | NPN | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Height | 1.2mm | |
| Series | DTC143ZCAHZG | |
| Length | 3.1mm | |
| Width | 1.5 mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Digital Transistor | ||
Maximum Collector Emitter Voltage Vceo 50V | ||
Mount Type Surface | ||
Minimum DC Current Gain hFE 80 | ||
Maximum Power Dissipation Pd 200mW | ||
Maximum Continuous Collector Current Ic 100mA | ||
Transistor Polarity NPN | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Height 1.2mm | ||
Series DTC143ZCAHZG | ||
Length 3.1mm | ||
Width 1.5 mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
The Rohm digital transistor with bias resistor and built in transistor which enables the configuration of an inverter circuit without connecting external input resistor. It is used in inverter, Interface and driver.
Easy circuit design
