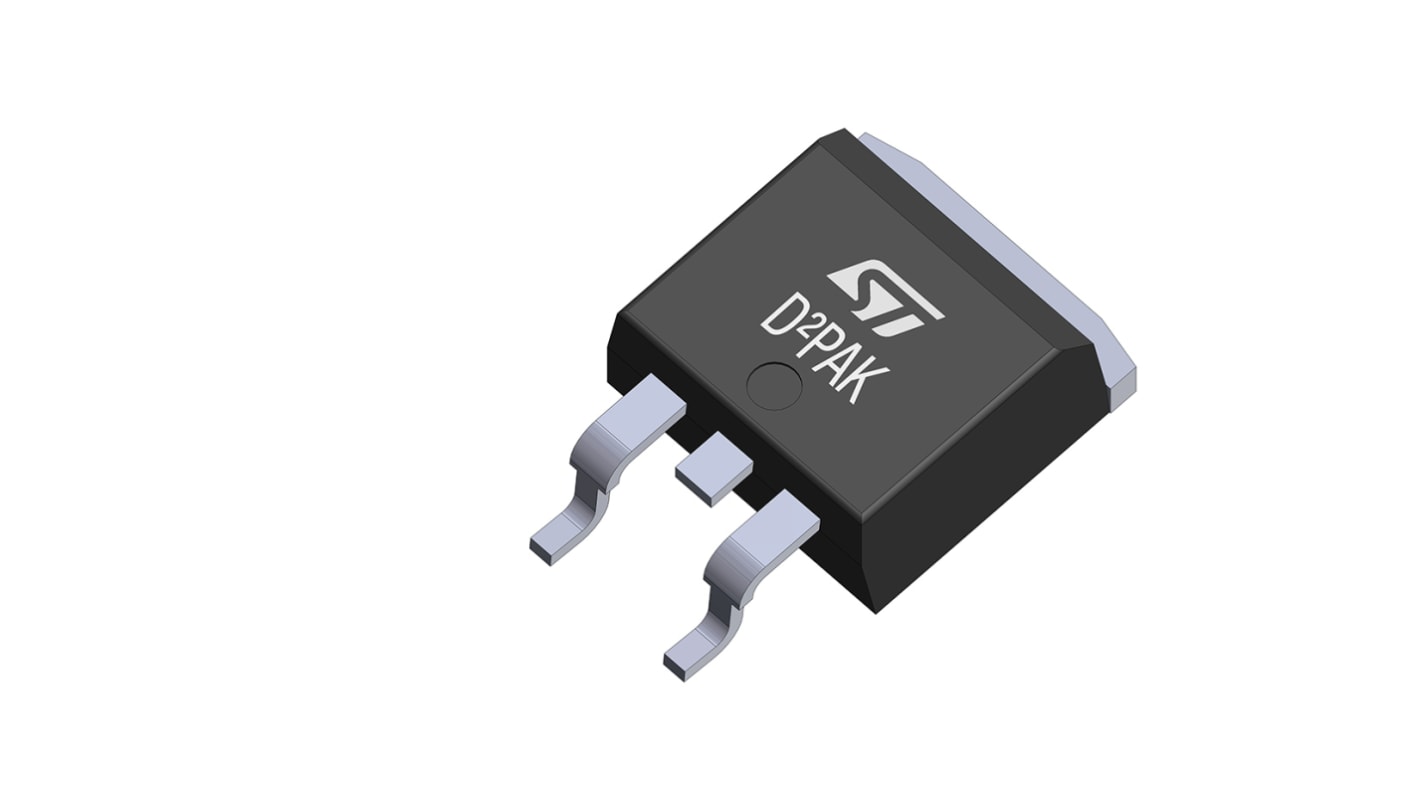

STMicroelectronics Bipolar Transistor, 15 A NPN, 100 V, 3-Pin TO-263
- RS Stock No.:
- 188-8258
- Mfr. Part No.:
- 2STBN15D100
- Brand:
- STMicroelectronics
Subtotal (1 reel of 1000 units)*
£409.00
(exc. VAT)
£491.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.409 | £409.00 |
*price indicative
- RS Stock No.:
- 188-8258
- Mfr. Part No.:
- 2STBN15D100
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | 15A | |
| Maximum Collector Emitter Voltage Vceo | 100V | |
| Package Type | TO-263 | |
| Mount Type | Surface | |
| Transistor Configuration | Common Emitter | |
| Maximum Collector Base Voltage VCBO | 100V | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Minimum DC Current Gain hFE | 750 | |
| Maximum Power Dissipation Pd | 70W | |
| Transistor Polarity | NPN | |
| Minimum Operating Temperature | -65°C | |
| Pin Count | 3 | |
| Maximum Operating Temperature | 150°C | |
| Length | 10.4mm | |
| Standards/Approvals | No | |
| Height | 15.85mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc 15A | ||
Maximum Collector Emitter Voltage Vceo 100V | ||
Package Type TO-263 | ||
Mount Type Surface | ||
Transistor Configuration Common Emitter | ||
Maximum Collector Base Voltage VCBO 100V | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Minimum DC Current Gain hFE 750 | ||
Maximum Power Dissipation Pd 70W | ||
Transistor Polarity NPN | ||
Minimum Operating Temperature -65°C | ||
Pin Count 3 | ||
Maximum Operating Temperature 150°C | ||
Length 10.4mm | ||
Standards/Approvals No | ||
Height 15.85mm | ||
Automotive Standard No | ||
The device is manufactured in Planar technology with “base island” layout and monolithic Darlington configuration.
Good hFE linearity
Monolithic Darlington configuration with integrated antiparallel collector-emitter diode
High fT frequency
Application
Linear and switching industrial equipment
