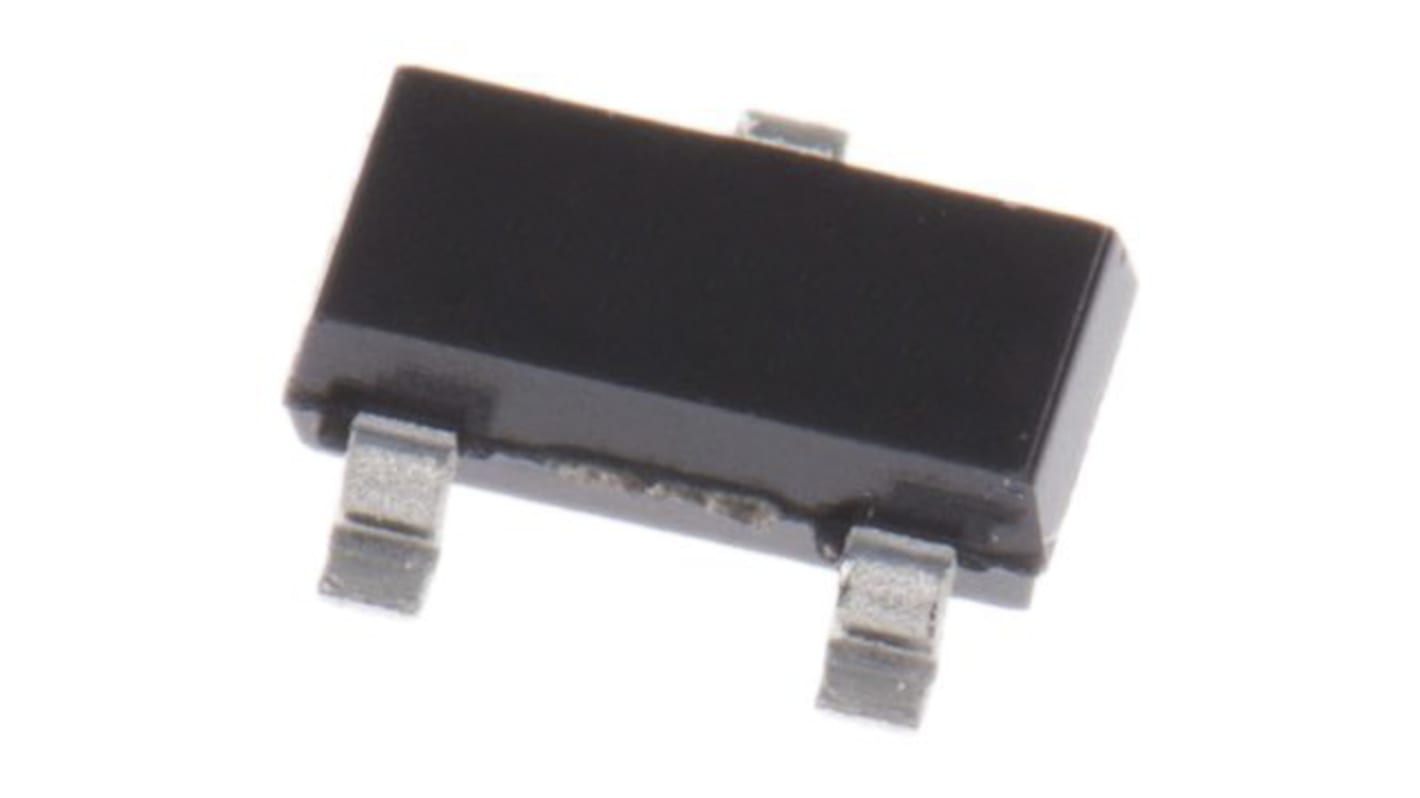

onsemi NSS12201LT1G NPN Digital Transistor, 12 V, 3-Pin SOT-23
- RS Stock No.:
- 186-8467
- Mfr. Part No.:
- NSS12201LT1G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£7.00
(exc. VAT)
£8.50
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 2,500 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.28 | £7.00 |
| 100 - 225 | £0.241 | £6.03 |
| 250 - 475 | £0.209 | £5.23 |
| 500 - 975 | £0.184 | £4.60 |
| 1000 + | £0.167 | £4.18 |
*price indicative
- RS Stock No.:
- 186-8467
- Mfr. Part No.:
- NSS12201LT1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Transistor Type | NPN | |
| Maximum Collector Emitter Voltage | 12 V | |
| Package Type | SOT-23 | |
| Mounting Type | Surface Mount | |
| Maximum Power Dissipation | 540 mW | |
| Minimum DC Current Gain | 200 | |
| Transistor Configuration | Single | |
| Maximum Emitter Base Voltage | 6 V dc | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Dimensions | 3.04 x 1.4 x 1.01mm | |
| Maximum Operating Temperature | +150 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Transistor Type NPN | ||
Maximum Collector Emitter Voltage 12 V | ||
Package Type SOT-23 | ||
Mounting Type Surface Mount | ||
Maximum Power Dissipation 540 mW | ||
Minimum DC Current Gain 200 | ||
Transistor Configuration Single | ||
Maximum Emitter Base Voltage 6 V dc | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Dimensions 3.04 x 1.4 x 1.01mm | ||
Maximum Operating Temperature +150 °C | ||
Typical applications are DC-DC converters and power management in portable and battery powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players. Other applications are low voltage motor controls in mass storage products such as disc drives and tape drives. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e2PowerEdge devices to be driven directly from PMU's control outputs, and the Linear Gain (Beta) makes them ideal components in analog amplifiers.
High Current, Low VCE(sat), ESD Robust, High Current Gain, High Cut Off Frequency, Low Profile Package, Linear Gain (Beta)
Benefits
Improved Circuit Efficiency, Decreased Battery Charge Time, Reduce component count, High Frequency Switching, Smaller Portable Product, No distortion
Applications
Load Switching, Battery Charging, External Pass Transistor, DC/DC Converter, Complimentary Driver, Current Extention & Low Drop Out Regulation, Cathode Florescent Lamp drive, Peripheral Driver - LEDs, Motors, Relays
Benefits
Improved Circuit Efficiency, Decreased Battery Charge Time, Reduce component count, High Frequency Switching, Smaller Portable Product, No distortion
Applications
Load Switching, Battery Charging, External Pass Transistor, DC/DC Converter, Complimentary Driver, Current Extention & Low Drop Out Regulation, Cathode Florescent Lamp drive, Peripheral Driver - LEDs, Motors, Relays
