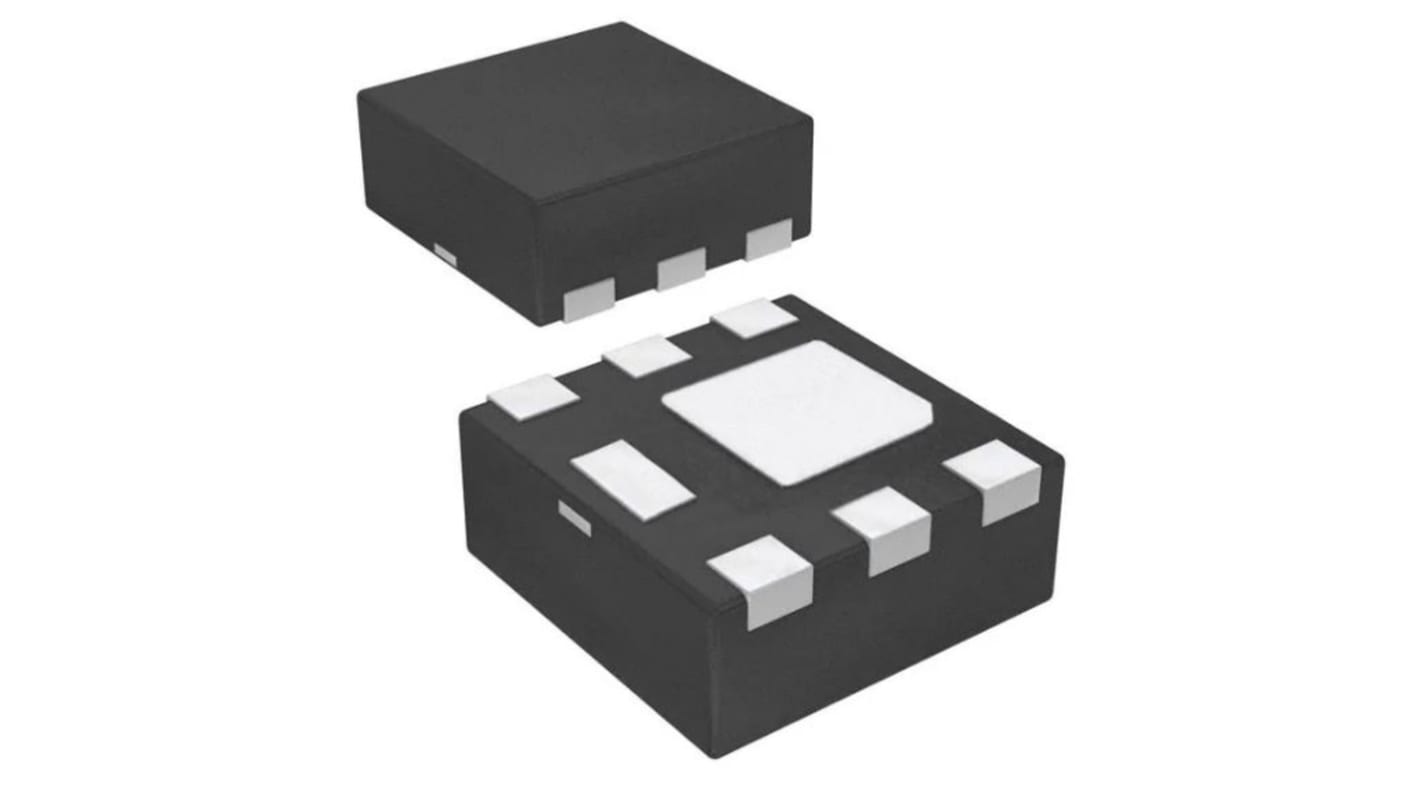

onsemi FDMA420NZ Digital Transistor N-Channel Surface, 6-Pin

RS Stock No.:: 186-8172
Mfr. Part No.:: FDMA420NZ
Brand:: onsemi

onsemi FDMA420NZ Digital Transistor N-Channel Surface, 6-Pin

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 25 units)*

£11.55

(exc. VAT)

£13.85

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit	Per Pack*
25 - 75	£0.462	£11.55
100 - 225	£0.398	£9.95
250 +	£0.345	£8.63

*price indicative

RS Stock No.:: 186-8172
Mfr. Part No.:: FDMA420NZ
Brand:: onsemi

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	onsemi
	Product Type	Digital Transistor
	Mount Type	Surface
	Transistor Configuration	Single
	Maximum Power Dissipation Pd	2.4W
	Transistor Polarity	N-Channel
	Pin Count	6
	Maximum Operating Temperature	150°C
	Length	2mm
	Series	PowerTrench
	Width	2mm
	Height	800μm
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand onsemi
	Product Type Digital Transistor
	Mount Type Surface
	Transistor Configuration Single
	Maximum Power Dissipation Pd 2.4W
	Transistor Polarity N-Channel
	Pin Count 6
	Maximum Operating Temperature 150°C
	Length 2mm
	Series PowerTrench
	Width 2mm
	Height 800μm
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet

COO (Country of Origin):: TH

This Single N-Channel MOSFET has been designed using an advanced Power Trench process to optimize the RDS(on) @VGS=2.5V on special MicroFET lead frame.

RDS(on) = 30mΩ @ VGS = 4.5 V, ID = 5.7A

RDS(on) = 40mΩ @ VGS = 2.5 V, ID = 5.0A

Low Profile-0.8mm maximum-in the new package MicroFET 2x2 mm

HBM ESD protection level 2.5k V typical (Note 3)

Free from halogenated compounds and antimony oxides

Applications

This product is general usage and suitable for many different applications.
