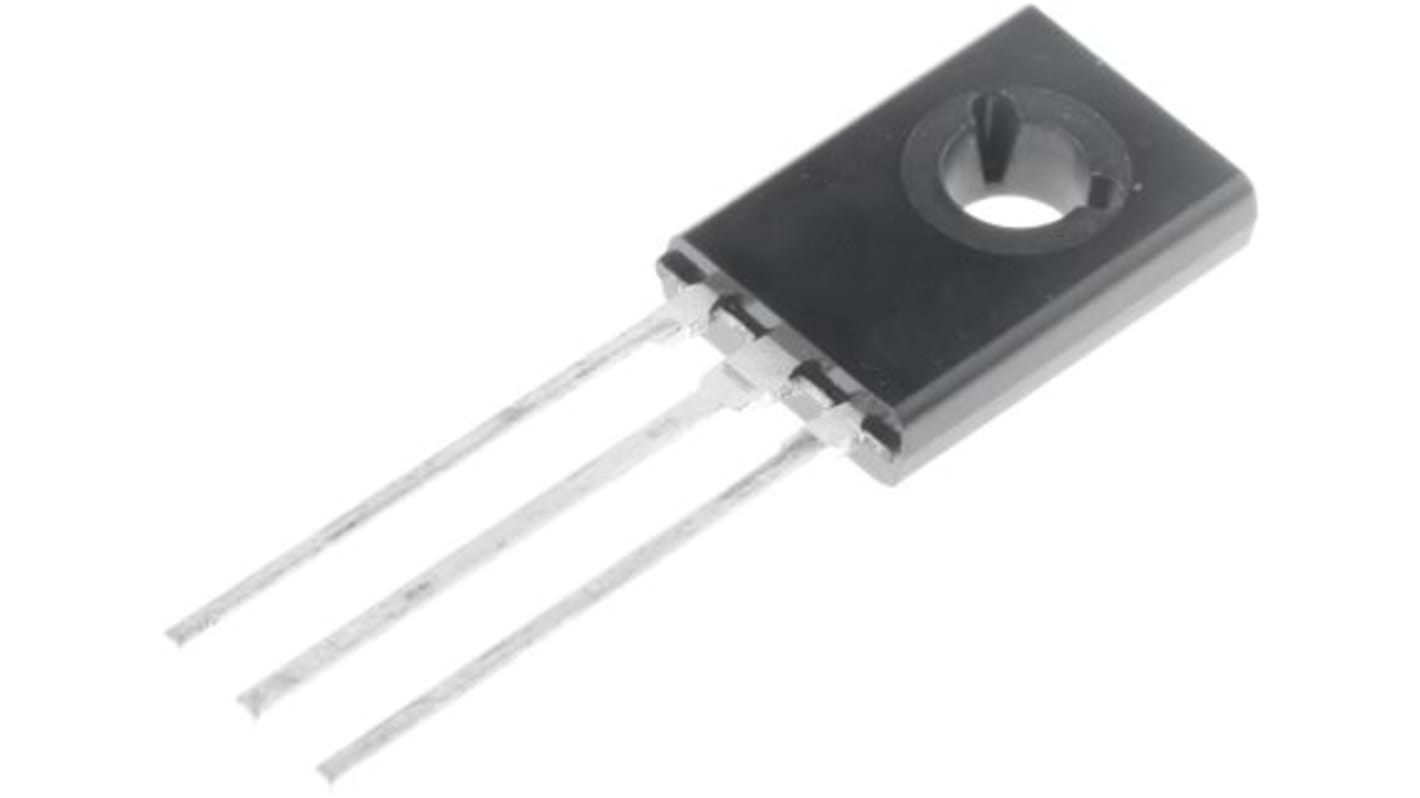

onsemi BD787G NPN Digital Transistor, 60 V dc, 3-Pin TO-225
- RS Stock No.:
- 186-8042
- Mfr. Part No.:
- BD787G
- Brand:
- onsemi
600 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.489
(exc. VAT)
£0.587
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 75 | £0.489 | £12.225 |
| 100 - 475 | £0.343 | £8.575 |
| 500 - 975 | £0.295 | £7.375 |
| 1000 - 2475 | £0.251 | £6.275 |
| 2500 + | £0.236 | £5.90 |
| *price indicative | ||
- RS Stock No.:
- 186-8042
- Mfr. Part No.:
- BD787G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The 4 A, 60 V PNP Bipolar Power Transistor is designed for lower power audio amplifier and low current, high speed switching applications. The BD787 and BD788 are complementary devices.
Low Collector-Emitter Sustaining Voltage VCEO(sus) 60 Vdc (Min) BD787, BD788
High Current-Gain Bandwidth Product fT = 50 MHz (Min) @ IC = 100 mAdc
Collector-Emitter Saturation Voltage Specified at 0.5, 1.0, 2.0 and 4.0 Adc
Pb-Free Packages are Available
High Current-Gain Bandwidth Product fT = 50 MHz (Min) @ IC = 100 mAdc
Collector-Emitter Saturation Voltage Specified at 0.5, 1.0, 2.0 and 4.0 Adc
Pb-Free Packages are Available
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Collector Emitter Voltage | 60 V dc |
| Package Type | TO-225 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 15 W |
| Minimum DC Current Gain | 40 |
| Transistor Configuration | Single |
| Maximum Emitter Base Voltage | 6 V dc |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 7.8 x 3 x 11.1mm |
| Maximum Operating Temperature | +150 °C |
