onsemi PZT751T1G PNP Transistor, -2 A, -60 V, 3 + Tab-Pin SOT-223
- RS Stock No.:
- 184-1495
- Mfr. Part No.:
- PZT751T1G
- Brand:
- onsemi
Available to back order for despatch 15/10/2024
Added
Price Each (In a Pack of 50)
£0.315
(exc. VAT)
£0.378
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 50 | £0.315 | £15.75 |
| 100 - 950 | £0.183 | £9.15 |
| 1000 - 1950 | £0.124 | £6.20 |
| 2000 - 9950 | £0.11 | £5.50 |
| 10000 + | £0.099 | £4.95 |
| *price indicative | ||
- RS Stock No.:
- 184-1495
- Mfr. Part No.:
- PZT751T1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

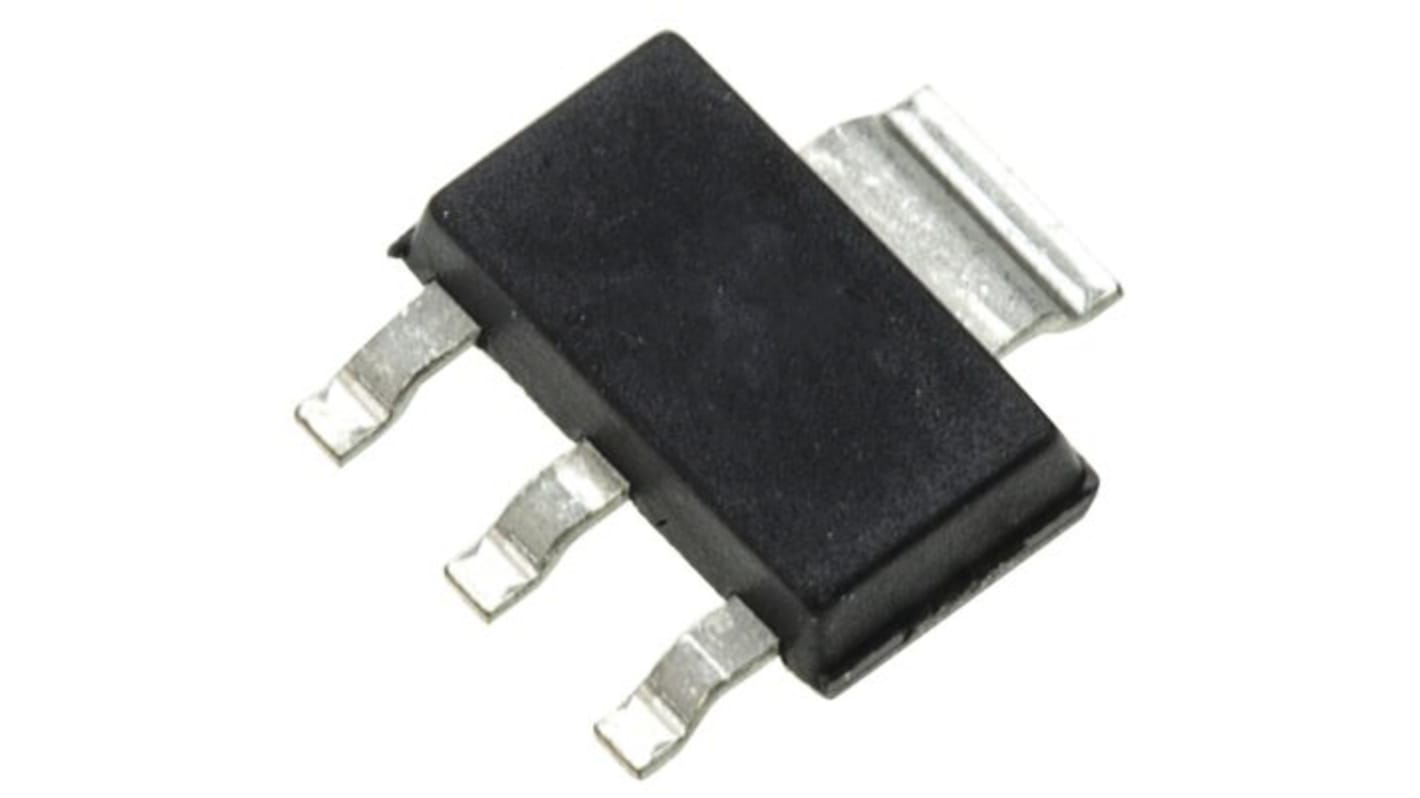

This High Current PNP Bipolar Transistor is designed for use in industrial and consumer applications. The device is housed in the SOT-223 package, which is designed for medium power surface mount applications.
The SOT-223 Package can be soldered using wave or reflow.
SOT-223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die
NPN Complement is PZT651T1
High Current: 2.0 Amp
These Devices are Pb-Free, Halogen Free/BFR Free
SOT-223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die
NPN Complement is PZT651T1
High Current: 2.0 Amp
These Devices are Pb-Free, Halogen Free/BFR Free
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | -2 A |
| Maximum Collector Emitter Voltage | -60 V |
| Package Type | SOT-223 (SC-73) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 800 mW |
| Minimum DC Current Gain | 40 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | -80 V |
| Maximum Emitter Base Voltage | -5 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 + Tab |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 6.7 x 3.7 x 1.65mm |
