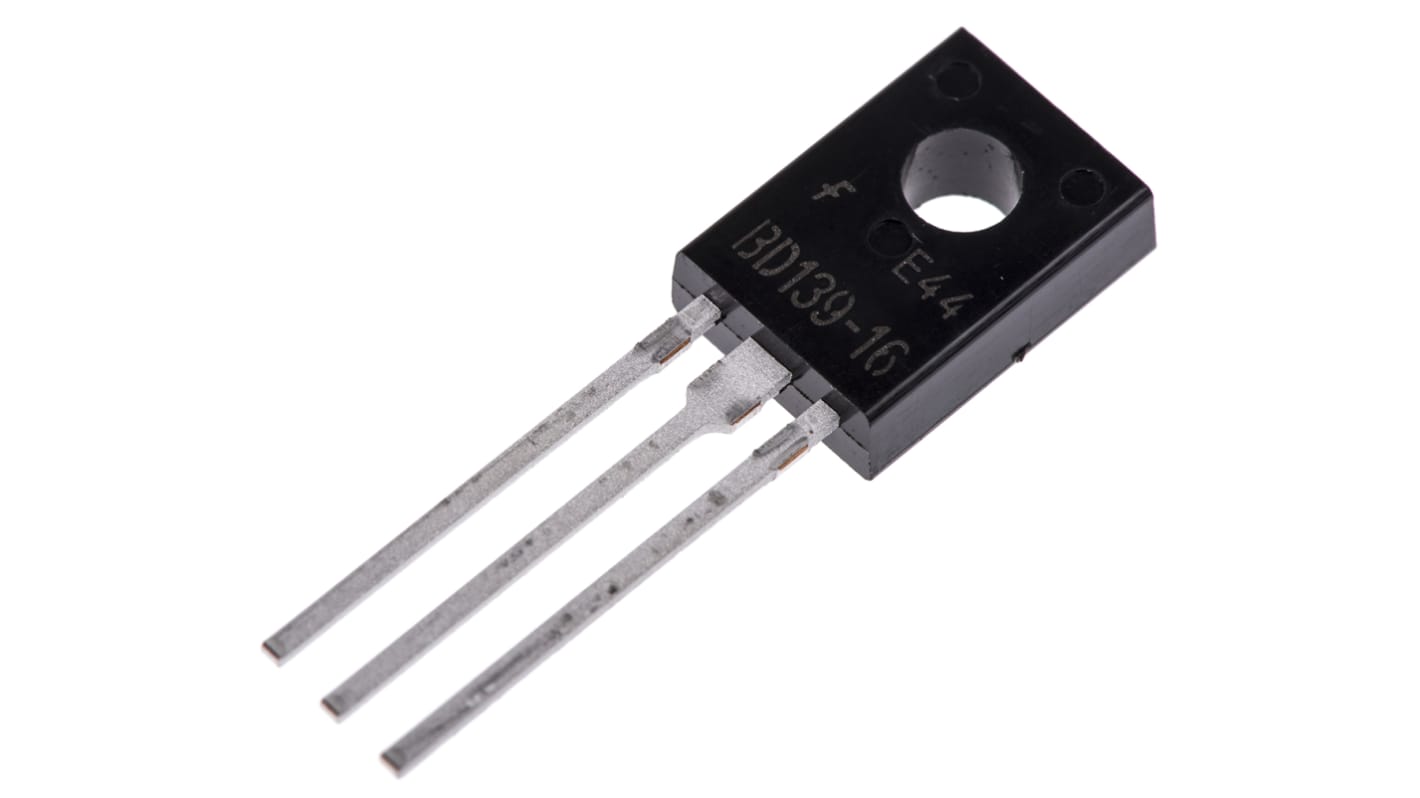

onsemi BD13916STU Transistor, 1.5 A NPN, 80 V, 3-Pin TO-126
- RS Stock No.:
- 145-4345
- Mfr. Part No.:
- BD13916STU
- Brand:
- onsemi
Bulk discount available
Subtotal (1 tube of 60 units)*
£22.14
(exc. VAT)
£26.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,320 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 60 - 60 | £0.369 | £22.14 |
| 120 - 240 | £0.347 | £20.82 |
| 300 + | £0.332 | £19.92 |
*price indicative
- RS Stock No.:
- 145-4345
- Mfr. Part No.:
- BD13916STU
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 1.5A | |
| Maximum Collector Emitter Voltage Vceo | 80V | |
| Package Type | TO-126 | |
| Mount Type | Through Hole | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | 80V | |
| Minimum DC Current Gain hFE | 25 | |
| Maximum Power Dissipation Pd | 12.5W | |
| Transistor Polarity | NPN | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Series | BD139 | |
| Standards/Approvals | No | |
| Height | 27.5mm | |
| Width | 3.5 mm | |
| Length | 8.3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 1.5A | ||
Maximum Collector Emitter Voltage Vceo 80V | ||
Package Type TO-126 | ||
Mount Type Through Hole | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO 80V | ||
Minimum DC Current Gain hFE 25 | ||
Maximum Power Dissipation Pd 12.5W | ||
Transistor Polarity NPN | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Series BD139 | ||
Standards/Approvals No | ||
Height 27.5mm | ||
Width 3.5 mm | ||
Length 8.3mm | ||
Automotive Standard No | ||
Small Signal NPN Transistors, 60V to 100V, Fairchild Semiconductor
Bipolar Transistors, Fairchild Semiconductor
Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.
