- RS Stock No.:
- 103-2931
- Mfr. Part No.:
- BC846BLT1G
- Brand:
- onsemi
18000 In stock - FREE next working day delivery available
Price Each (On a Reel of 3000)
£0.016
(exc. VAT)
£0.019
(inc. VAT)
Units | Per unit | Per Reel* |
3000 - 3000 | £0.016 | £48.00 |
6000 + | £0.015 | £45.00 |
*price indicative |
- RS Stock No.:
- 103-2931
- Mfr. Part No.:
- BC846BLT1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Small Signal NPN Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.

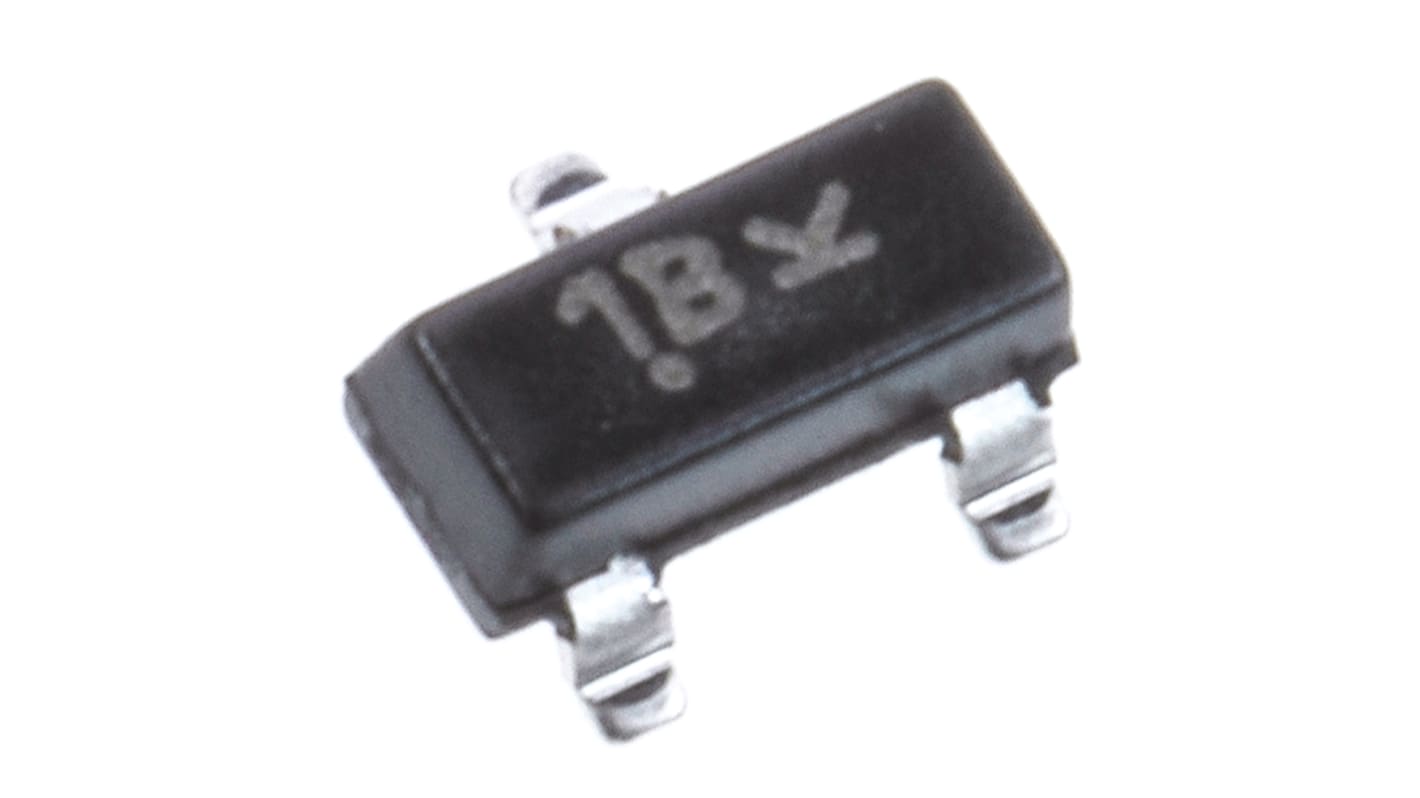

The ON Semiconductor BC846BLT1G is an NPN bipolar transistor from the BC846BL series. It is designed for linear and switching applications. The BC846BLT1G comes in an SOT-23 SMD package which is designed for low power applications.
• MSL: 1
• ESD Rating: >400V (human body), >400V (machine)
• SOT-23 package
• MSL: 1
• ESD Rating: >400V (human body), >400V (machine)
• SOT-23 package
Specifications
Attribute | Value |
---|---|
Transistor Type | NPN |
Maximum DC Collector Current | 100 mA |
Maximum Collector Emitter Voltage | 65 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Maximum Power Dissipation | 300 mW |
Minimum DC Current Gain | 200 |
Transistor Configuration | Single |
Maximum Collector Base Voltage | 80 V |
Maximum Emitter Base Voltage | 6 V |
Maximum Operating Frequency | 100 MHz |
Pin Count | 3 |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Dimensions | 0.94 x 2.9 x 1.3mm |
