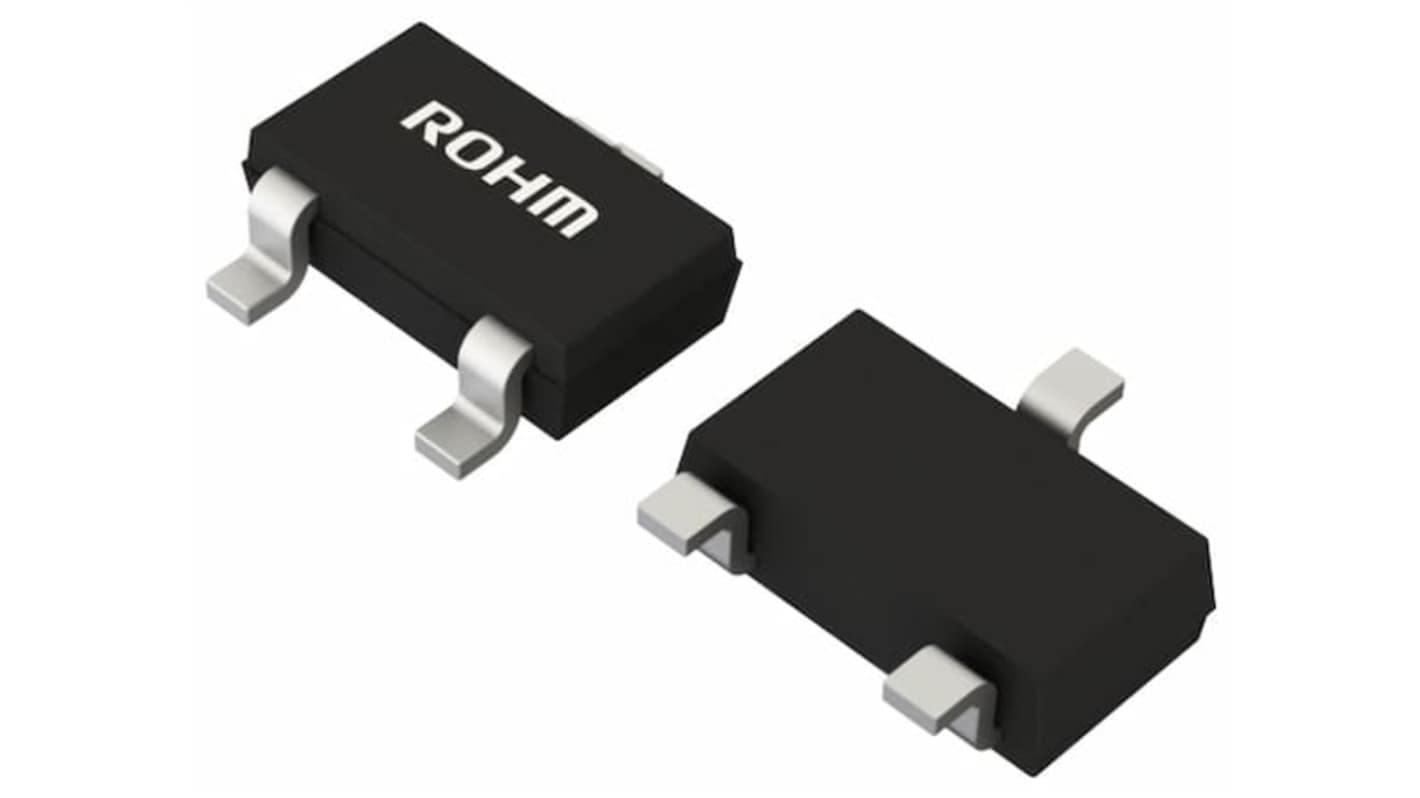

ROHM 2SAR512RHZGTL Bipolar Transistor, 2 A PNP, -30 V, 3-Pin SOT-346T
- RS Stock No.:
- 264-935
- Mfr. Part No.:
- 2SAR512RHZGTL
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 25 units)*
£12.45
(exc. VAT)
£14.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,975 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 25 - 75 | £0.498 | £12.45 |
| 100 - 225 | £0.473 | £11.83 |
| 250 + | £0.438 | £10.95 |
*price indicative
- RS Stock No.:
- 264-935
- Mfr. Part No.:
- 2SAR512RHZGTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Bipolar Transistor | |
| Maximum DC Collector Current Idc | 2A | |
| Maximum Collector Emitter Voltage Vceo | -30V | |
| Package Type | SOT-346T | |
| Mount Type | Surface | |
| Maximum Collector Base Voltage VCBO | -30V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Emitter Base Voltage VEBO | -6V | |
| Minimum DC Current Gain hFE | 200 | |
| Transistor Polarity | PNP | |
| Maximum Transition Frequency ft | 430MHz | |
| Maximum Power Dissipation Pd | 1W | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Standards/Approvals | AEC-Q101 | |
| Series | 2SAR512R HZG | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Bipolar Transistor | ||
Maximum DC Collector Current Idc 2A | ||
Maximum Collector Emitter Voltage Vceo -30V | ||
Package Type SOT-346T | ||
Mount Type Surface | ||
Maximum Collector Base Voltage VCBO -30V | ||
Minimum Operating Temperature -55°C | ||
Maximum Emitter Base Voltage VEBO -6V | ||
Minimum DC Current Gain hFE 200 | ||
Transistor Polarity PNP | ||
Maximum Transition Frequency ft 430MHz | ||
Maximum Power Dissipation Pd 1W | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Standards/Approvals AEC-Q101 | ||
Series 2SAR512R HZG | ||
Automotive Standard AEC-Q101 | ||
The ROHM PNP middle power transistor features a -30V voltage rating and -2A current capacity in an SOT-346T package. It offers low VCE(sat) and is suitable for low-frequency amplifier applications, ensuring high reliability for automotive use.
Suitable for middle power driver
Complementary NPN Types 2SCR512RHZG
AEC-Q101 Qualified
