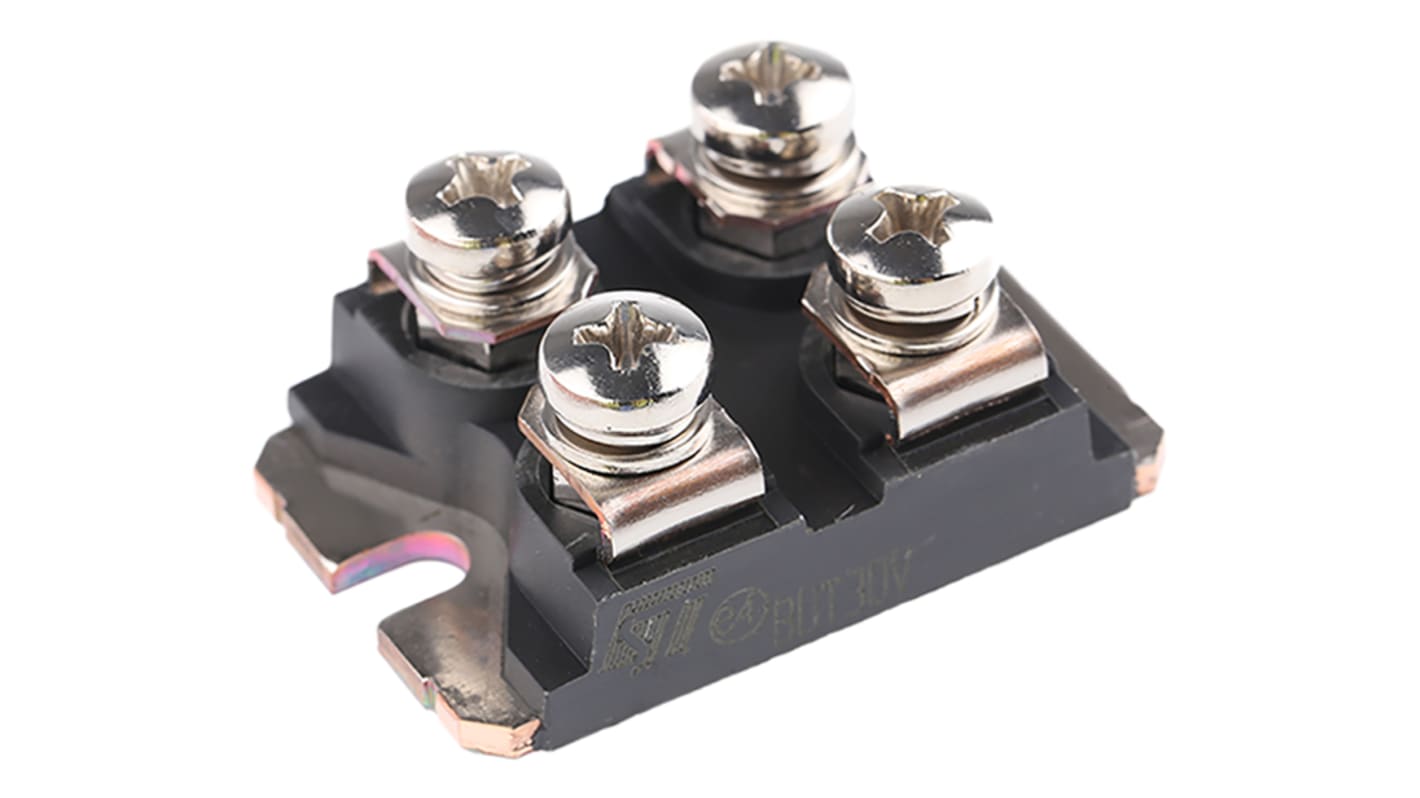

STMicroelectronics BUT30V NPN Transistor, 100 A, 125 V, 4-Pin ISOTOP
- RS Stock No.:
- 264-355
- Mfr. Part No.:
- BUT30V
- Brand:
- STMicroelectronics
Discontinued
- RS Stock No.:
- 264-355
- Mfr. Part No.:
- BUT30V
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Transistor Type | NPN | |
| Maximum DC Collector Current | 100 A | |
| Maximum Collector Emitter Voltage | 125 V | |
| Package Type | ISOTOP | |
| Mounting Type | Panel Mount | |
| Maximum Power Dissipation | 250 W | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage | 200 V | |
| Maximum Emitter Base Voltage | 7 V | |
| Pin Count | 4 | |
| Number of Elements per Chip | 1 | |
| Dimensions | 9.1 x 38.2 x 25.5mm | |
| Maximum Operating Temperature | +150 °C | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Transistor Type NPN | ||
Maximum DC Collector Current 100 A | ||
Maximum Collector Emitter Voltage 125 V | ||
Package Type ISOTOP | ||
Mounting Type Panel Mount | ||
Maximum Power Dissipation 250 W | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage 200 V | ||
Maximum Emitter Base Voltage 7 V | ||
Pin Count 4 | ||
Number of Elements per Chip 1 | ||
Dimensions 9.1 x 38.2 x 25.5mm | ||
Maximum Operating Temperature +150 °C | ||
NPN Power Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
