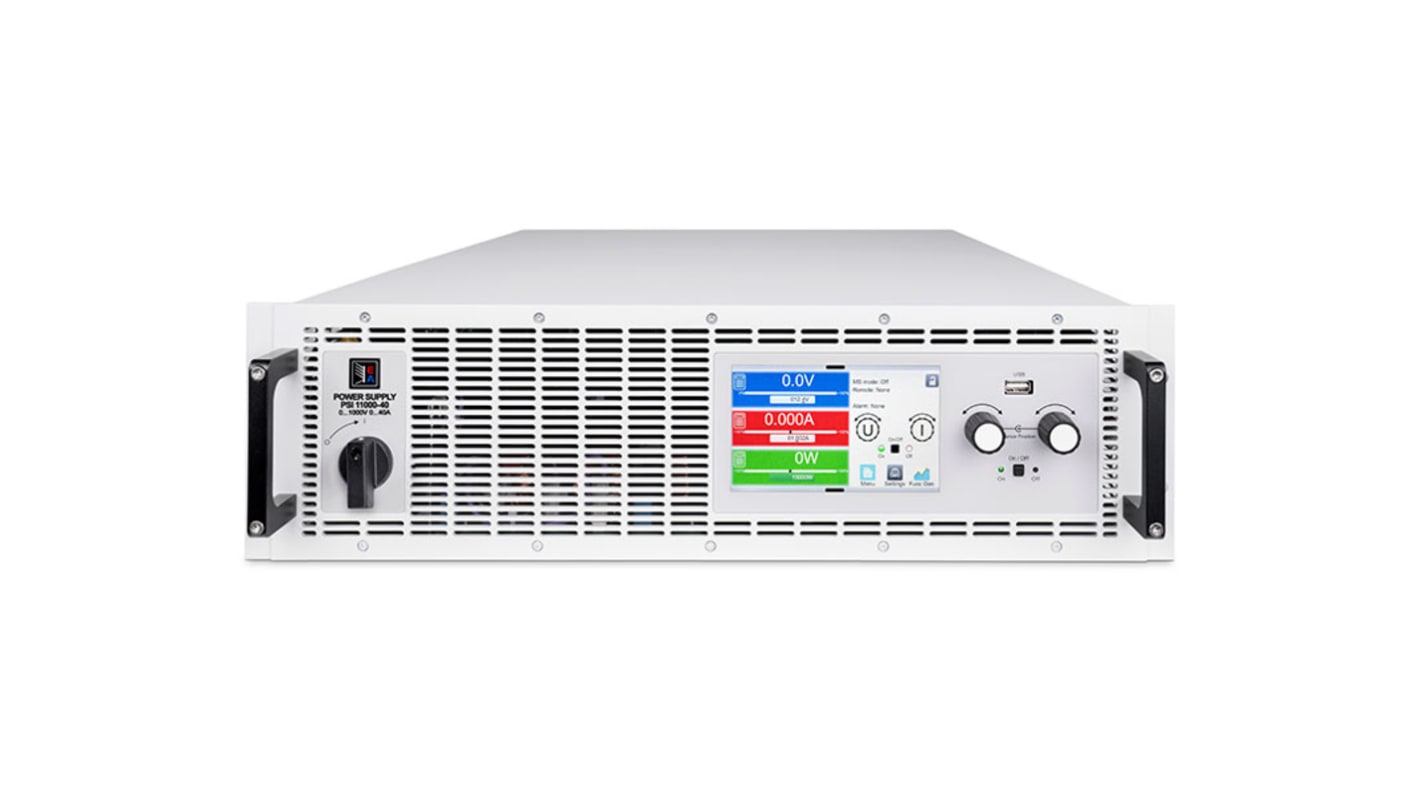

EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 200V, 5000 W, 70 A Max, RSCAL

RS Stock No.:: 264-7366
Mfr. Part No.:: EA-PSI 10200-70 3U
Brand:: EA Elektro-Automatik

EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 200V, 5000 W, 70 A Max, RSCAL

Subtotal (1 unit)*

£7,179.20

(exc. VAT)

£8,615.04

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 13 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£7,179.20

*price indicative

RS Stock No.:: 264-7366
Mfr. Part No.:: EA-PSI 10200-70 3U
Brand:: EA Elektro-Automatik

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EA Elektro-Automatik
	Product Type	Bench Power Supply
	Maximum Output Current	70A
	Number of Outputs	1
	Maximum Output Voltage	200V
	Power	5000W
	Minimum Supply Voltage	208V ac
	Output Type	Programmable DC Power Supply
	Maximum Supply Voltage	480V ac
	Minimum Operating Temperature	0°C
	Digital/Analogue	Digital
	Maximum Operating Temperature	50°C
	Depth	668mm
	Width	19in
	Standards/Approvals	RoHS, FCC 47 CFR Part 15B, EN 61000-4-3, CISPR 11, CSA C22.2 No 61010-1, EN 61010-1, BS EN 61010-1, EN 61000-4-6, EN 61326-1, Unintentional Radiator, IEC 61010-1, IP20, EN 55011, Class B, UL 61010-1, EN 61000-4-5, EN 61000-4-2
	Minimum Output Current	70A
	Calibrated	RSCAL
	Minimum Output Voltage	0V

	Select all
	Brand EA Elektro-Automatik
	Product Type Bench Power Supply
	Maximum Output Current 70A
	Number of Outputs 1
	Maximum Output Voltage 200V
	Power 5000W
	Minimum Supply Voltage 208V ac
	Output Type Programmable DC Power Supply
	Maximum Supply Voltage 480V ac
	Minimum Operating Temperature 0°C
	Digital/Analogue Digital
	Maximum Operating Temperature 50°C
	Depth 668mm
	Width 19in
	Standards/Approvals RoHS, FCC 47 CFR Part 15B, EN 61000-4-3, CISPR 11, CSA C22.2 No 61010-1, EN 61010-1, BS EN 61010-1, EN 61000-4-6, EN 61326-1, Unintentional Radiator, IEC 61010-1, IP20, EN 55011, Class B, UL 61010-1, EN 61000-4-5, EN 61000-4-2
	Minimum Output Current 70A
	Calibrated RSCAL
	Minimum Output Voltage 0V

Datasheet - EA-PSI 10200-70 3U

The EA Elektro-Automatik DC power supply convert the energy from the grid into a regulated DC voltage with an efficiency of over 96%. The voltage range is 0 - 200 volts. The operating temperature range is 0 - 50°C. These power supplies are equipped with an active PFC which provides high efficiency over low consumption. The current range is 0 - 70 ampere.

High performance

Integrated function generator with predefined curves

Galvanically isolated share bus for parallel operation

Active power factor correction
