EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 200V, 3000 W, 50 A Max, RSCAL

RS Stock No.:: 259-5057
Mfr. Part No.:: EA-PS 10200-50 2U
Brand:: EA Elektro-Automatik

EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 200V, 3000 W, 50 A Max, RSCAL

Subtotal (1 unit)*

£5,049.90

(exc. VAT)

£6,059.88

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

4 unit(s) ready to ship from another location
Plus 3 unit(s) shipping from 21 July 2026
Plus 2 unit(s) shipping from 28 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5,049.90

*price indicative

RS Stock No.:: 259-5057
Mfr. Part No.:: EA-PS 10200-50 2U
Brand:: EA Elektro-Automatik

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EA Elektro-Automatik
	Product Type	Bench Power Supply
	Number of Outputs	1
	Maximum Output Voltage	200V
	Maximum Output Current	50A
	Power	3000W
	Minimum Supply Voltage	110V ac
	Maximum Supply Voltage	480V ac
	Plug Type	2-Pin
	Output Type	Digital
	Minimum Operating Temperature	0°C
	Digital/Analogue	Digital
	Maximum Operating Temperature	50°C
	Depth	462mm
	Standards/Approvals	BS EN 61010-1, CISPR 11, CSA C22.2 No 61010-1, EN 61326-1, RoHS, EN 61000-4-2, Class B, EN 61000-4-3, UL 61010-1, EN 61000-4-5, IP20, EN 61010-1, EN 55011, Unintentional Radiator, FCC 47 CFR Part 15B, EN 61000-4-6, IEC 61010-1
	Width	19in
	Calibrated	RSCAL
	Minimum Output Voltage	0V
	Minimum Output Current	0A

	Select all
	Brand EA Elektro-Automatik
	Product Type Bench Power Supply
	Number of Outputs 1
	Maximum Output Voltage 200V
	Maximum Output Current 50A
	Power 3000W
	Minimum Supply Voltage 110V ac
	Maximum Supply Voltage 480V ac
	Plug Type 2-Pin
	Output Type Digital
	Minimum Operating Temperature 0°C
	Digital/Analogue Digital
	Maximum Operating Temperature 50°C
	Depth 462mm
	Standards/Approvals BS EN 61010-1, CISPR 11, CSA C22.2 No 61010-1, EN 61326-1, RoHS, EN 61000-4-2, Class B, EN 61000-4-3, UL 61010-1, EN 61000-4-5, IP20, EN 61010-1, EN 55011, Unintentional Radiator, FCC 47 CFR Part 15B, EN 61000-4-6, IEC 61010-1
	Width 19in
	Calibrated RSCAL
	Minimum Output Voltage 0V
	Minimum Output Current 0A

Datasheet - EA-PS 10200-50 2U

COO (Country of Origin):: DE

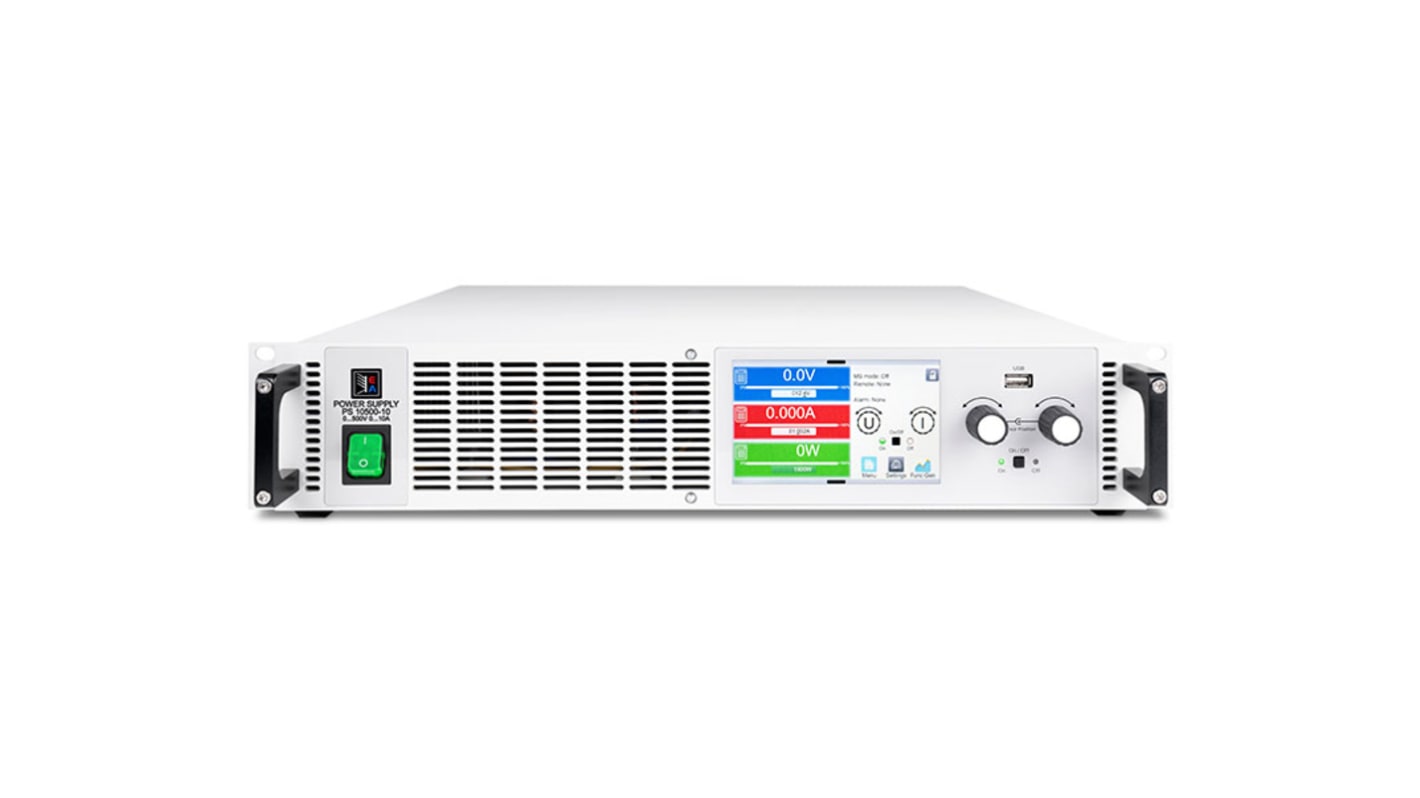

The EA Elektro-Automatik high-end most versatile programmable laboratory power-supply is based upon a high-performance FPGA controller unit with up to 16-bit resolution. It operates as DC source and it features the superior flexible auto-ranging output for a usage at either high voltage or high current as required within the nominal power rating. The series include an intuitive 5 colour TFT touch panel with up to 5-digit resolution, allowing to see the set- and read back values in one view. For external control, this series comes standard with USB, Ethernet and analogue interface. A plug's play slot is provided as well, to retrofit further available optional interface such as CAN, Ether CAT, Profibus, Profinet. This series is a perfect instrument for device- and component testing in modern R&D environment, suitable for 19 integration and bench usage.

Operates as DC source

Auto-ranging DC output

Constant U, I, P and R mode

FPGA controlled, with up to 16 bit resolution

For demanding laboratory application, R&D
