MPN

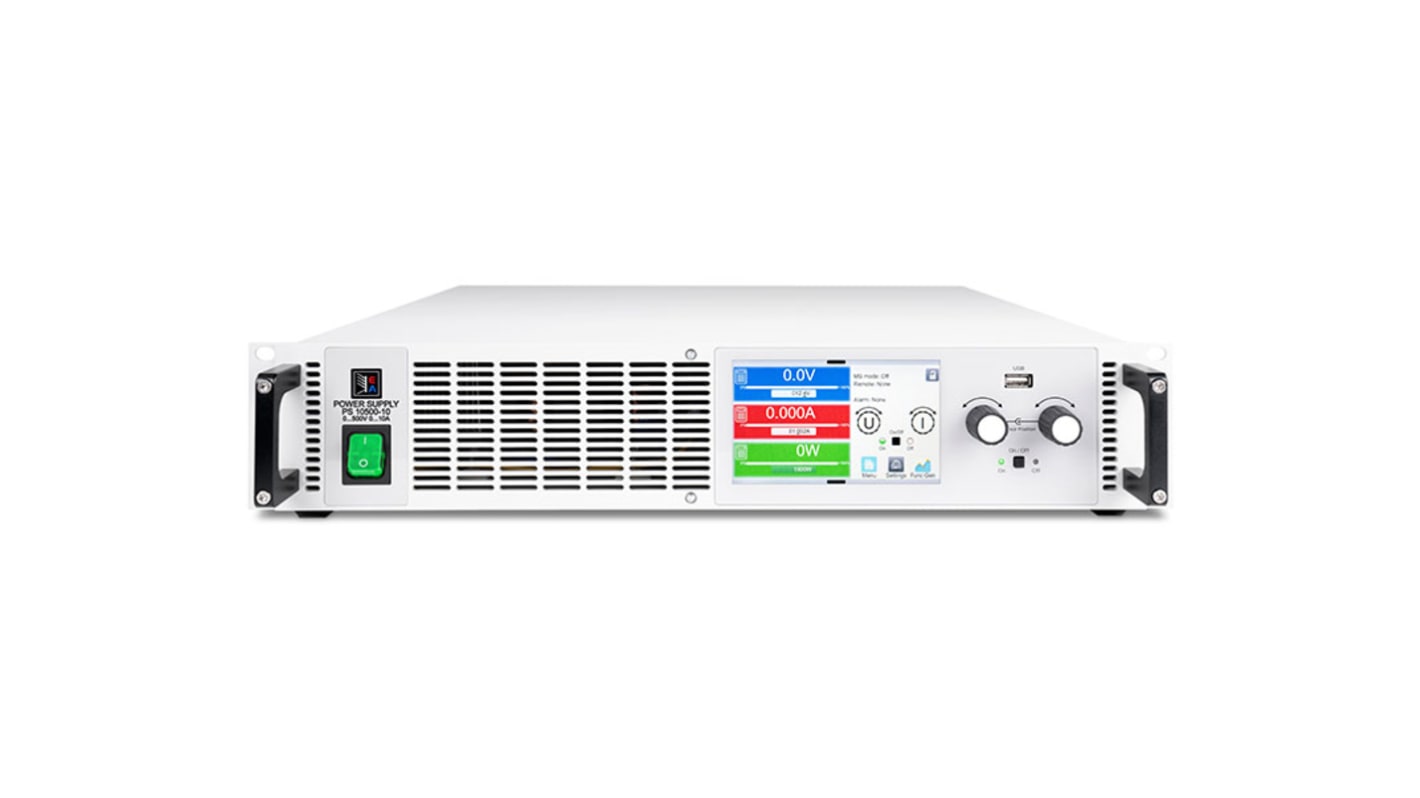

EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 1500V, 3000 W, 6 A Max

RS Stock No.:: 259-2963
Distrelec Article No.:: 303-61-268
Mfr. Part No.:: EA-PS 11500-06 2U
Brand:: EA Elektro-Automatik

EA Elektro-Automatik Digital Bench Power Supply, 1-Output 0 V to 1500V, 3000 W, 6 A Max

Subtotal (1 unit)*

£5,403.50

(exc. VAT)

£6,484.20

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

3 unit(s) ready to ship from another location
Plus 1 unit(s) shipping from 28 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5,403.50

*price indicative

RS Stock No.:: 259-2963
Distrelec Article No.:: 303-61-268
Mfr. Part No.:: EA-PS 11500-06 2U
Brand:: EA Elektro-Automatik

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EA Elektro-Automatik
	Product Type	Bench Power Supply
	Maximum Output Voltage	1500V
	Number of Outputs	1
	Maximum Output Current	6A
	Power	3000W
	Minimum Supply Voltage	110V ac
	Maximum Supply Voltage	240V ac
	Output Type	Digital
	Digital/Analogue	Digital
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Depth	462mm
	Standards/Approvals	EN 61000-4-2, CSA C22.2 No 61010-1, EN 55011, Unintentional Radiator, EN 61000-4-6, FCC 47 CFR Part 15B, EN 61010-1, EN 61000-4-5, EN 61000-4-3, CISPR 11, IEC 61010-1, IP20, Class B, RoHS, BS EN 61010-1, UL 61010-1, EN 61326-1
	Width	19in
	Minimum Output Current	0A
	Minimum Output Voltage	0V

	Select all
	Brand EA Elektro-Automatik
	Product Type Bench Power Supply
	Maximum Output Voltage 1500V
	Number of Outputs 1
	Maximum Output Current 6A
	Power 3000W
	Minimum Supply Voltage 110V ac
	Maximum Supply Voltage 240V ac
	Output Type Digital
	Digital/Analogue Digital
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Depth 462mm
	Standards/Approvals EN 61000-4-2, CSA C22.2 No 61010-1, EN 55011, Unintentional Radiator, EN 61000-4-6, FCC 47 CFR Part 15B, EN 61010-1, EN 61000-4-5, EN 61000-4-3, CISPR 11, IEC 61010-1, IP20, Class B, RoHS, BS EN 61010-1, UL 61010-1, EN 61326-1
	Width 19in
	Minimum Output Current 0A
	Minimum Output Voltage 0V

Datasheet - EA-PS 11500-06 2U

COO (Country of Origin):: DE

The EA Elektro-Automatik high-end most versatile programmable laboratory power-supply is based upon a high-performance FPGA controller unit with up to 16-bit resolution. It operates as DC source and it features the superior flexible auto-ranging output for a usage at either high voltage or high current as required within the nominal power rating. The series include an intuitive 5 colour TFT touch panel with up to 5-digit resolution, allowing to see the set- and read back values in one view. For external control, this series comes standard with USB, Ethernet and analogue interface. A plug's play slot is provided as well, to retrofit further available optional interface such as CAN, Ether CAT, Profibus, Profinet. This series is a perfect instrument for device- and component testing in modern R&D environment, suitable for 19 integration and bench usage.

Operates as DC source

Auto-ranging DC output

Constant U, I, P and R mode

FPGA controlled, with up to 16 bit resolution

For demanding laboratory application, R&D
