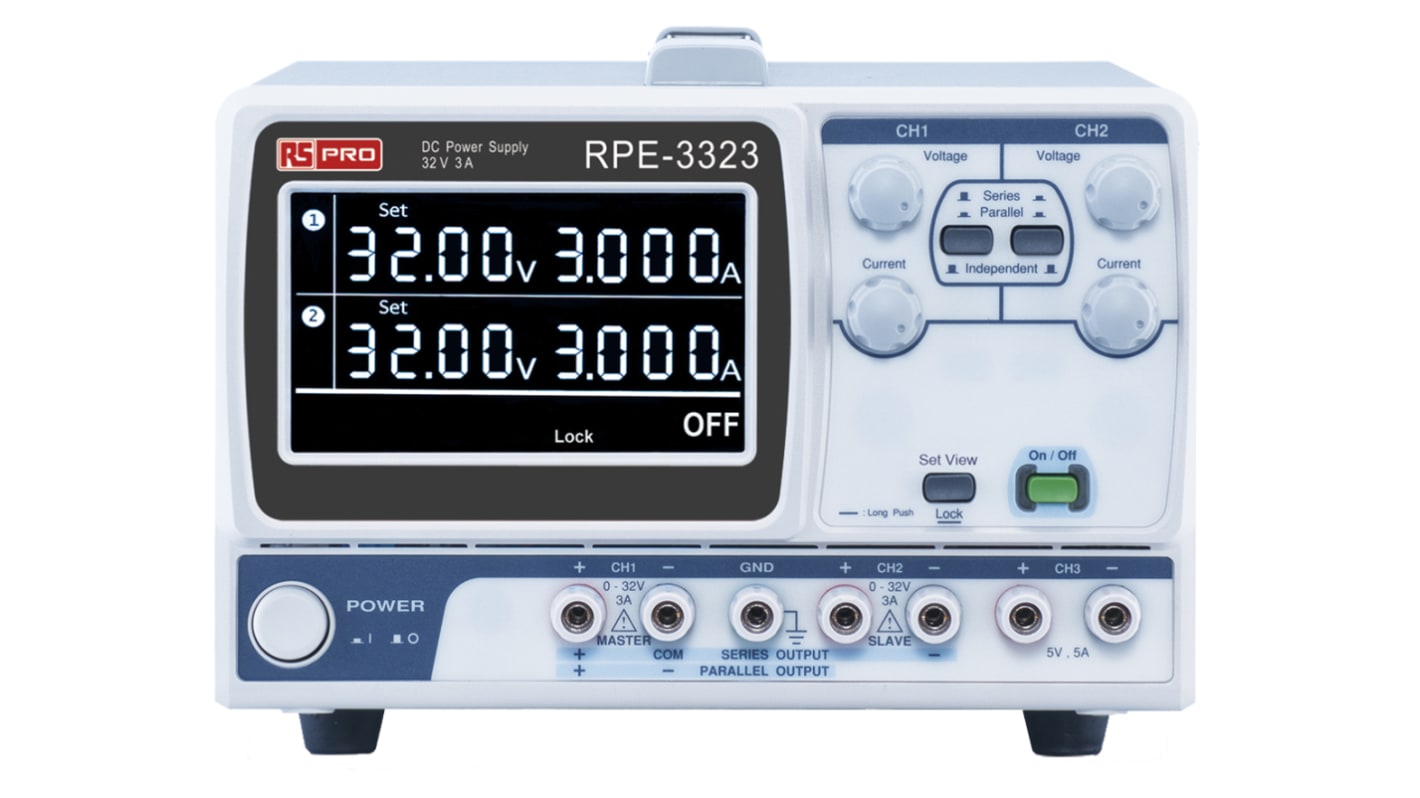

RS PRO Digital Bench Power Supply, 3-Output 0 V ac to 32V, 217 W, 5 A Max, RSCAL

RS Stock No.:: 122-5046
Brand:: RS PRO

RS PRO Digital Bench Power Supply, 3-Output 0 V ac to 32V, 217 W, 5 A Max, RSCAL

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS Stock No.:: 122-5046
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Bench Power Supply
	Number of Outputs	3
	Maximum Output Voltage	32V
	Maximum Output Current	5A
	Power	217W
	Plug Type	IEC 320
	Maximum Supply Voltage	230V ac
	Output Type	Digital
	Digital/Analogue	Digital
	Minimum Operating Temperature	0°C
	Supported Number of Displays	1
	Maximum Operating Temperature	40°C
	Standards/Approvals	RoHS
	Height	155mm
	Depth	306mm
	Width	210mm
	Minimum Output Current	0A
	Calibrated	RSCAL
	Minimum Output Voltage	0V ac

	Select all
	Brand RS PRO
	Product Type Bench Power Supply
	Number of Outputs 3
	Maximum Output Voltage 32V
	Maximum Output Current 5A
	Power 217W
	Plug Type IEC 320
	Maximum Supply Voltage 230V ac
	Output Type Digital
	Digital/Analogue Digital
	Minimum Operating Temperature 0°C
	Supported Number of Displays 1
	Maximum Operating Temperature 40°C
	Standards/Approvals RoHS
	Height 155mm
	Depth 306mm
	Width 210mm
	Minimum Output Current 0A
	Calibrated RSCAL
	Minimum Output Voltage 0V ac

COO (Country of Origin):: CN

RS PRO Multiple Output Linear DC Power Supply

From RS PRO, comes a range of high quality and economical multiple output linear DC power supplies with LCD display screens. Manufactured to industry standards these DC power supplies feature output power from 192 to 217 watts, three independent isolated output channels, high resolution, low noise, high reliability, and are a compact size.

These linear DC power supplies have unique design allows the power supply to provide users with more efficient functionality. These DC power supplies also feature a built-in digital panel control design to replace the conventional control methods. The key lock function protects DUTs (device under test) by preventing others from changing voltage and current parameters.

Features and Benefits:

Output voltage - 0 → 32V

1/2/3/4 independent Isolated output

4.3 Inch LCD Display

Setting & read back resolution 100mV/10mA (*1)

Maximum temperature +40 °C

Low noise achieved by smart cooling fan achieving

Tracking series and parallel operation. The series and parallel connections allow power supplies to output 32V/6A.

How do linear power supplies work?

Linear power supplies drop the voltage from an AC (alternating current) line to a much lower voltage. this is achieved using a large transformer. Linear power supplies can be used anywhere that low ripple excellent regulation is required as well as needing excellent response and low electromagnetic emissions.

Applications

Linear power supplies have a variety of application use such as;

Communication equipment

Medical equipment

Low noise amplifiers

Signal processing
