BK Precision 1673 Series Digital Bench Power Supply, 5V, 3A, 3-Output, 400W - UKAS Calibrated
- RS Stock No.:
- 122-1975
- Mfr. Part No.:
- BK1673
- Brand:
- BK Precision
Subtotal (1 unit)*
£980.78
(exc. VAT)
£1,176.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £980.78 |
*price indicative
- RS Stock No.:
- 122-1975
- Mfr. Part No.:
- BK1673
- Brand:
- BK Precision
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | BK Precision | |
Series | 1673 | |
Model Number | BK1673 | |
Number of Outputs | 3 | |
Calibrated | UKAS | |
Supply Voltage | 115 → 230V ac | |
Output Voltage | 5 V, 2 x 0 → 32V | |
Output Current | 3 A, 2 x 0 → 6A | |
Power Rating | 400W | |
Number of Displays | 4 | |
Bench Power Supply Type | Triple Output DC Power Supply | |
Type | Digital | |
Digital/Analogue | Digital | |
Input Connector | IEC 320 | |
Output Connector | 4 mm Safety Socket | |
Maximum Temperature | +40°C | |
Minimum Temperature | +10°C | |
Select all | ||
---|---|---|
Brand BK Precision | ||
Series 1673 | ||
Model Number BK1673 | ||
Number of Outputs 3 | ||
Calibrated UKAS | ||
Supply Voltage 115 → 230V ac | ||
Output Voltage 5 V, 2 x 0 → 32V | ||
Output Current 3 A, 2 x 0 → 6A | ||
Power Rating 400W | ||
Number of Displays 4 | ||
Bench Power Supply Type Triple Output DC Power Supply | ||
Type Digital | ||
Digital/Analogue Digital | ||
Input Connector IEC 320 | ||
Output Connector 4 mm Safety Socket | ||
Maximum Temperature +40°C | ||
Minimum Temperature +10°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

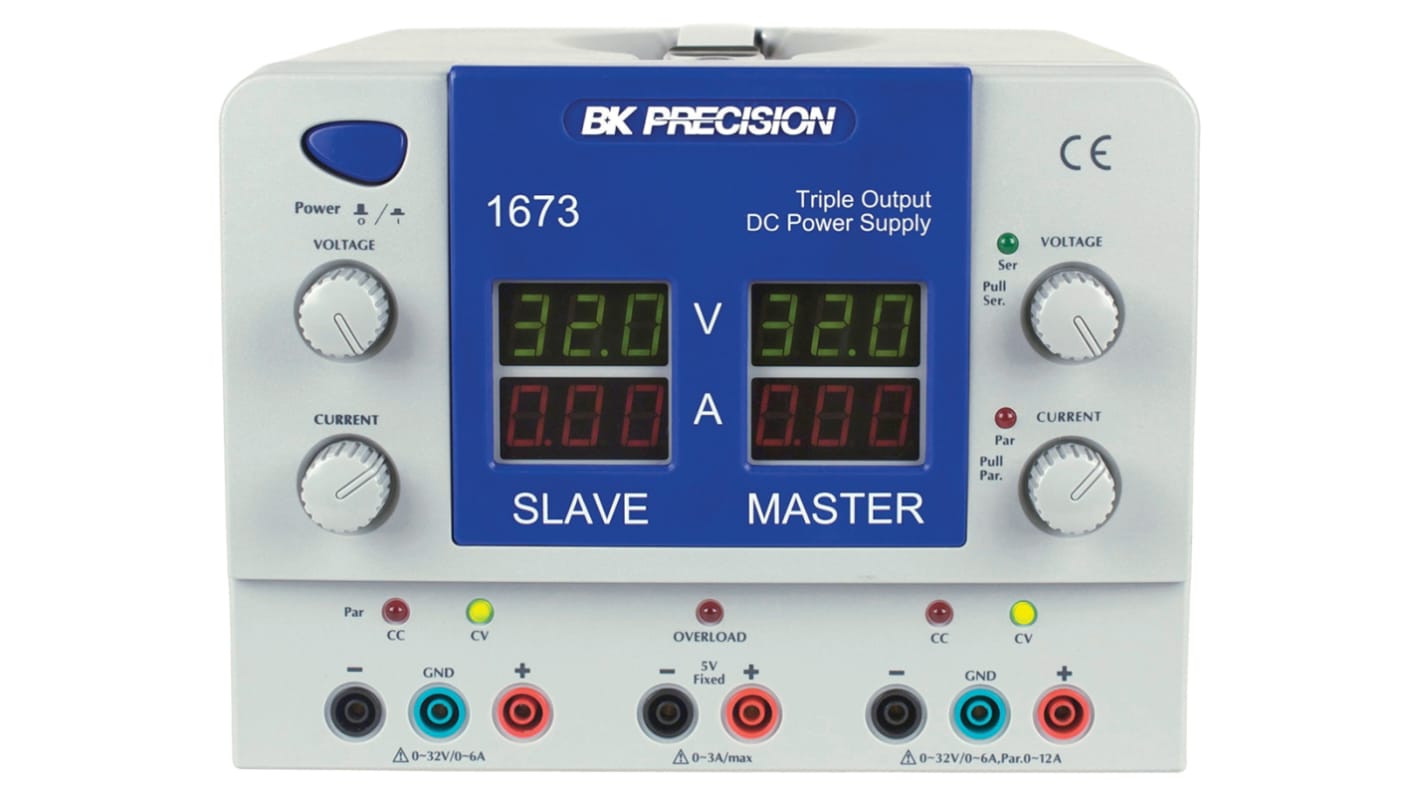

B&K Precision Model 1673 Quad Display Triple Output Regulated DC Power Supply
B&K Precision model 1673 is a quad display triple output regulated DC power supply that provides one fixed output (5 V/3 A) and two
variable outputs (0-32 V/ 0-6 A).The variable outputs can work independently or in series tracking or parallel mode.
variable outputs (0-32 V/ 0-6 A).The variable outputs can work independently or in series tracking or parallel mode.
Features and Benefits
Intuitive - easy-to-operate voltage and current adjustment knobs
Quad display - bright, quad 3-digit LED display
Independent control of Voltage and Current controls for variable output
CV/CC operation
Separate 3 digit displays for voltage (Green) and current (Red) for both variable outputs
LED indication for CV (Green)/ CC (Red) mode
Overload indication LED for Fixed output
Series tracking and parallel mode operation for Triple output unit
Sheathed safety babana input jacks accept sheathed or shrouded banana plugs
Quad display - bright, quad 3-digit LED display
Independent control of Voltage and Current controls for variable output
CV/CC operation
Separate 3 digit displays for voltage (Green) and current (Red) for both variable outputs
LED indication for CV (Green)/ CC (Red) mode
Overload indication LED for Fixed output
Series tracking and parallel mode operation for Triple output unit
Sheathed safety babana input jacks accept sheathed or shrouded banana plugs
Areas of Application
Electronic test, production and service
Laboratories - especially where multiple DC power supplies are required and bench space is at a premium
Laboratories - especially where multiple DC power supplies are required and bench space is at a premium
Note
You may also be interested in B&K Precision Model 1672, 0-32 V/ 0-3 A ( 878-2069 ).
Supplied with
Power cord, instruction manual, two pairs of test leads
