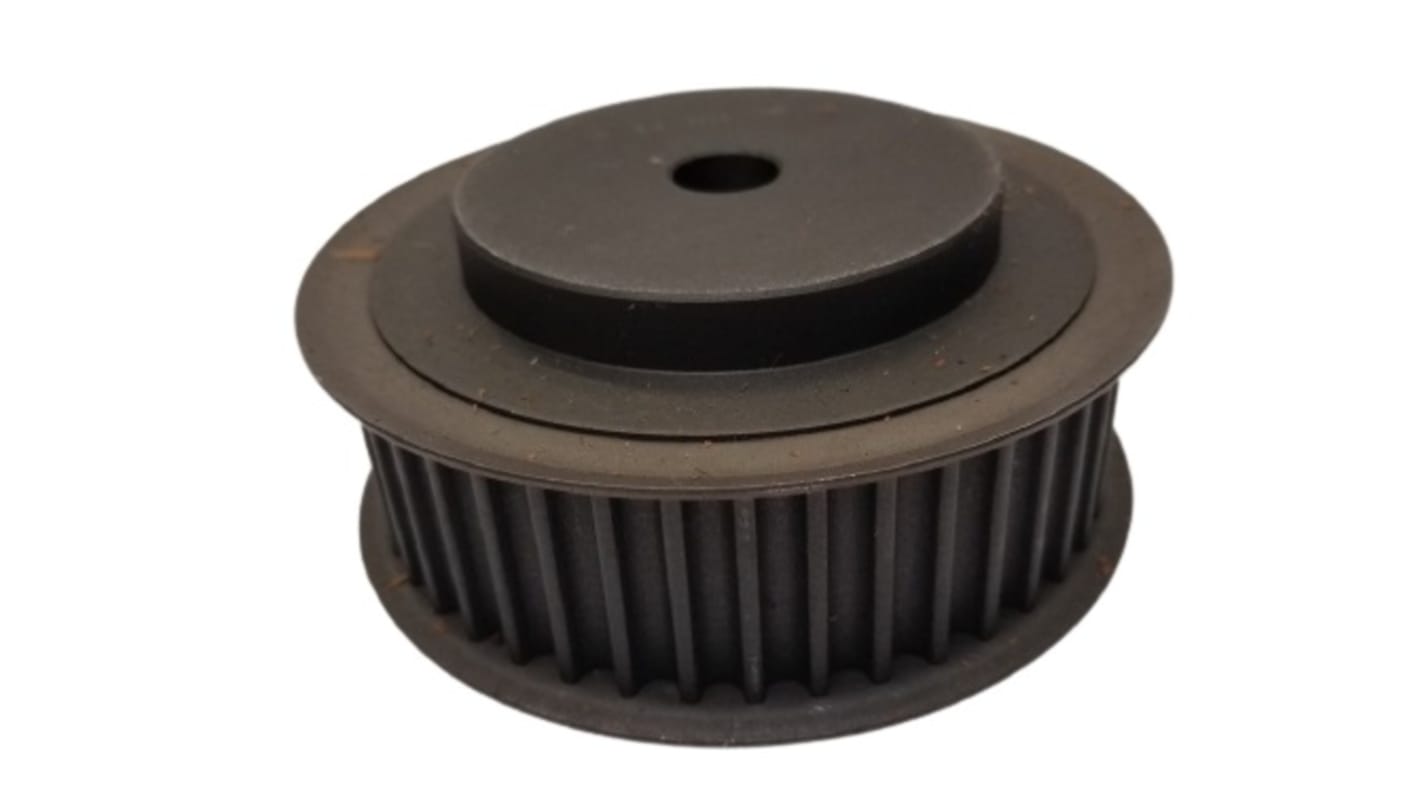

OPTIBELT Timing Belt Pulley Steel 9.5 mm Pitch, 17 Tooth
- RS Stock No.:
- 236-5437
- Mfr. Part No.:
- 17L075
- Brand:
- OPTIBELT
Subtotal (1 unit)*
£8.25
(exc. VAT)
£9.90
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.25 |
*price indicative
- RS Stock No.:
- 236-5437
- Mfr. Part No.:
- 17L075
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Product Type | Timing Belt Pulley | |
| Number of Teeth | 17 | |
| Pitch | 9.5mm | |
| Pitch Circle Diameter | 51.54mm | |
| Flange Diameter | 57mm | |
| Bore Size | 24 mm | |
| Material | Steel | |
| Flanged | Yes | |
| Outside Diameter | 50.78 mm | |
| Standards/Approvals | RoHS | |
| Bore Type | Pilot Bore | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Product Type Timing Belt Pulley | ||
Number of Teeth 17 | ||
Pitch 9.5mm | ||
Pitch Circle Diameter 51.54mm | ||
Flange Diameter 57mm | ||
Bore Size 24 mm | ||
Material Steel | ||
Flanged Yes | ||
Outside Diameter 50.78 mm | ||
Standards/Approvals RoHS | ||
Bore Type Pilot Bore | ||
The OPTIBELT ZRS timing belt pulleys for plain boring imperial profile L (9.525 mm) has belt width of 75 mm and 17 number of teeth. It has finished bore of max 24 mm.
Maximum bore diameter of 24 mm
Manufactured from high strength material
